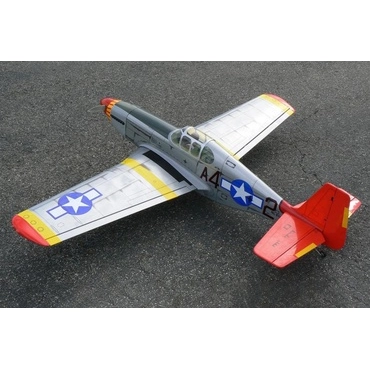

P-51B Tuskegee Airmen 1580mm (62.2") Wingspan - ARF from Nexa - NXA1058-001
The P-51B Mustang, powered by the Merlin engine, was introduced in 1943 and was heralded by Allied bombers in Europe for its impressive long-range and powerful high-altitude escort capability. Among the US fighters of WWII, the P-51 Mustang is one of the most widely known. The Red Tail scheme was made famous by the incomparable Tuskegee Airmen who were the first African American soldiers to successfully complete their training and enter the Army Air Corps and became widely regarded as some of the finest pilots of the entire war.
This Nexa P-51B Mustang is a electric or gas option .46-size aerobatic airplane with a 1580mm wingspan, constructed primarily from balsa wood and covered with a fuel-resistant covering. This ARF requires assembly and installation of your choice of servos and power system, and includes fully functional flaps, fiberglass cowl, painted pilot and other scale details. The large battery hatch affords ample room for either electric or gas setups. Impress at your flying field with this iconic World War II warbird!
Visit the Official Nexa P-51B Tuskegee Airmen 1580mm ARF Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
|
Fully Covered and Detailed The Nexa P-51B comes fully covered including simulated panel lines and rivets. |
|
Scale Details Throughout There is no shortage of scale details with this P-51B Mustang including functional flaps, detailed cockpit and painted pilot. |
|
Easy Battery Access The battery hatch is ingeniously accessed through the side of the fuselage for easy access. |
|
Fly An Allied Classic The P-51B Mustang Red Tail is an iconic American WWII warbird that performs aerobatics with ease and style. |
Features:
- Complete Balsa and lite-ply construction for rigidity and durability
- Covered from tip to tail in scale details including functional flaps, plastic seat, antenna, printed simulated panel lines and rivets
- Fiberglass cowling for strength and durability
- All control surfaces come out of the box pre-hinged and installed for convenience
- Large battery hatch allows for your chosen electric or gas setup
Includes:
- Nexa P-51B Tuskegee Airmen 1580mm (62.2") Wingspan - ARF
- Wheels and spinner
- Fuel tank, hardware and decals
Requires (Electric):
- 6 Channel radio - select a minimum 6 channel radio from our Radio Collection
- 6 Channel receiver - select a minimum 6 channel receiver from our Receiver Collection
- Brushless outrunner motor - we recommend the Admiral GP7.5 5020-670Kv Brushless Motor
- 80 Amp brushless ESC - we recommend the Admiral RVS 80A ESC with 8A SBEC
- 2x standard servos for flaps - we recommend the Hitec HS-485HB 45g Deluxe Ball Bearing Karbonite Gear Standard Servo Airplane Multi-Pack (2 Servos)
- 4x micro servos for ailerons, elevator and rudder - we recommend the Hitec HS-85BB 19g High Torque Micro Servo Airplane Multi-Pack (4 Servos)
- 4 Cell 14.8V 5000 mAh LiPo Battery - we recommend the Admiral Pro 5000mAh 4S 14.8V 60C LiPo Battery with EC5 Connector
- Electric propeller - we recommend the APC 13x10 Thin Electric Propeller
- Electric retracts - Nexa 1580mm P-51 Mustang Electronic Retract Set with Scale Struts
- 4 Cell compatible battery charger - select a minimum 4 cell (4S) charger from our Charger Collection
Requires (Gas):
- 2 stroke engine - we recommend the NGH GT9 Pro 9cc Two-Stroke Engine
- 2x standard servos for flaps - we recommend the Hitec HS-485HB 45g Deluxe Ball Bearing Karbonite Gear Standard Servo Airplane Multi-Pack (2 Servos)
- 4x micro servos for ailerons, elevator and rudder - we recommend the Hitec HS-85BB 19g High Torque Micro Servo Airplane Multi-Pack (4 Servos)
- 45g standard servo for throttle - we recommend Hitec HS-485HB 45g Deluxe Ball Bearing Karbonite Gear Standard Servo
- Receiver battery: 2S 2000mAh LiFe Battery - we recommend Admiral 2100mAh 2S 6.6V LiFe Battery with XT60/JR/Futaba Connectors
- Electric retracts - Nexa 1580mm P-51 Mustang Electronic Retract Set with Scale Struts
- Gas Propeller: 11x7 - we recommend APC 11x7 Gas Propeller
Nexa ARF models are constructed out of balsa wood and plywood. These are not foam models. The assembly of balsa wood ARF aircraft requires basic model building skills including the installation of servos, ESC, and motor (or gas engine).
Product Specifications:
|
Model Scale |
1/7.5 |
|
Wingspan |
1580mm / 62.2in |
|
Length |
1190mm / 46.8in |
|
Empty Weight |
3100g / 109.34oz |
|
CG (Center of Gravity) |
132mm from the leading edge of the wing's root |
|
Power System |
670W Brushless outrunner motor for electric or 2-stroke for gas (required) |
|
Electronic Speed Control |
65A (required) |
|
Propeller / EDF |
13x10 2-blade for electric or 11x6 gas 2-blade for gas (required) |
|
Servos |
45g metal gear standard: left aileron, right aileron, elevator, rudder - HRC6005-017 |
|
Landing Gear |
Electronic retractable gear (required) |
|
Required Battery |
4 Cell 14.8V 5000 mAh LiPo Battery (required) |
|
Required Radio |
6+ Channel (required) |
|
Ailerons |
Yes |
|
Elevator |
Yes |
|
Rudder |
Yes |
|
Flaps |
Yes |
|
Lights |
No |
|
Hinge Type |
CA fabric |
|
Material |
Balsa and light plywood |
|
Skill Level |
Intermediate |
|
Build Time |
6+ Hours |
|
Recommended Environment |
Outdoors |
