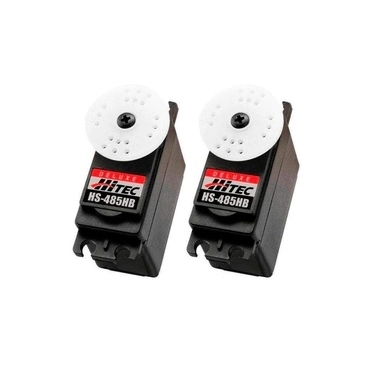

(VAT inc.)HS-485HB 45g Deluxe Ball Bearing Karbonite Gear Standard Servo Airplane Multi-Pack (2 Servos) from Hitec - HRC33485S
Hitec’s HS-45HB offers the economy and durability of their other famous micro servos, but now with a ball bearing supported output shaft and Karbonite gears.
Features:
- Convenient servo two pack is perfect for balsa ARF models
- Ideal for .20 - .60 class aircraft and all EP and GP .30-.50 class helicopters
- Karbonite gear train that is four times stronger than standard plastic gears
- Three pole motor and single ball bearing output shaft
Includes:
- 2 Hitec HS-485HB Deluxe ball bearing Karbonite gear standard servos with universal connectors
- 2x 0.94" (24mm) diameter round horn
- 2x 1.2" (31mm) diameter 4-point horn
- 2x 1.3" (34mm) double-arm horn
- 2x 1.2" (30.5mm) single-arm horn
- 8 each rubber grommets, eyelets, and mounting screws
Product Specifications:
|
Servo Class |
Standard |
|
Servo Type |
Analog |
|
Gear Material |
Karbonite |
|
Direction |
Standard / Normal |
|
Operating Voltage Range |
4.8V - 6V |
|
Speed (4.8V) |
0.22 sec @ 60 deg |
|
Speed (6V) |
0.18 sec @ 60 deg |
|
Torque (4.8V) |
4.8 kg/cm (67 oz/in) |
|
Torque (6V) |
6 kg/cm (83 oz/in) |
|
Current Draw at Idle |
10 mA @ 6V |
|
Current Draw Operating (No Load) |
200 mA |
|
Dimensions (L x W x H) |
39.8 x 19.8 x 38mm |
|
Weight |
45g (1.59oz) |
|
Lead Length |
310mm |
