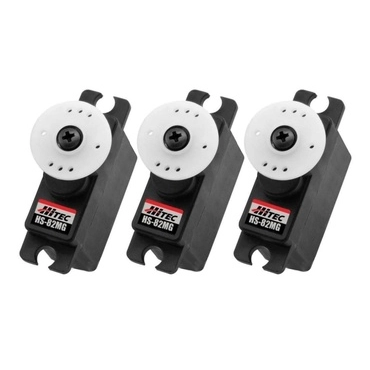

HS-82MG 19g Metal Gear Micro Servo Multi-Pack (3 Servos) from Hitec - HRC32082S
The Hitec HS-82MG is a high quality 17g "size" analog servo with metal gears. It is a good choice for planes requiring a very reliable 17g servo that centers well and will not strip. The servo features a universal connector which works with nearly all receivers. It will fit Futaba J, Hitec S, JR, and Airtronics Z-type Connectors. See specifications tab for full specs.
Features:
- Convenient servo three pack is perfect for balsa ARF models
- Metal gears
- Precise centering
- Universal connector
- Updated electronics
Includes:
- Three HS-82MG Metal Gear Micro Servos
- Three 0.67" (17mm) diameter horns
- Three 1.1" (29mm) double arms
- Three 0.90" (23mm) 4-point horns
- Mounting hardware
Product Specifications:
|
Servo Class |
Micro |
|
Servo Type |
Analog |
|
Gear Material |
Metal |
|
Direction |
Standard / Normal |
|
Operating Voltage Range |
4.8V to 6V |
|
Speed (4.8V) |
0.12 sec @ 60 deg |
|
Speed (6V) |
0.10 sec @ 60 deg |
|
Torque (4.8V) |
2.8 kg/cm (38.8 oz/in) |
|
Torque (6V) |
3.4 kg/cm (47.2 oz/in) |
|
Current Draw at Idle |
9.1mA |
|
Current Draw Operating (No Load) |
280mA |
|
Dimensions (L x W x H) |
29.8 x 12 x 29.6mm |
|
Weight |
19g (.66oz) |
|
Lead Length |
160mm |
