D-645MW 57g High Voltage High Torque Digital Metal Gear Servo Airplane Multi-Pack (5 Servos) from Hitec - HRC36645
The metal D-645MW is part of Hitec's D-Series servo line. All Hitec D-Series servos have been designed using brand new, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec’s industry standard 25-tooth output spline with 3mm hex screw, each D-Series servo brings monster performance never known before in the market.
Features:
- Convenient five-pack of Hitec servos is perfect for balsa ARF models
- Programmable PWM Digital Amplifier
- 32-Bit MCU with 12-Bit ADC Circuitry
- 4096 Resolution
- 1M Cycle Long Life Potentiometer
- Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
- Dual Ball Bearing Supported Output Shaft
- 25-Tooth Output Spline
Includes:

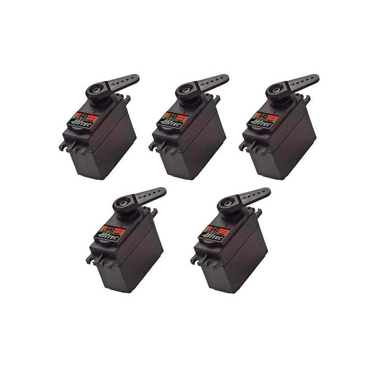

- Five (5) Hitec D-645MW High Voltage High Torque Digital Metal Gear Servos
- Mounting hardware and horns
Product Specifications:
|
Servo Class |
Standard |
|
Servo Type |
Digital |
|
Gear Material |
Metal |
|
Direction |
Standard / Normal |
|
Operating Voltage Range |
4.8V to 7.4V |
|
Speed (Second @ 60°) |
0.28 ~ 0.20 ~ 0.17 |
|
Maximum Torque Range oz. / in. |
115 ~ 158 ~ 180 |
|
Current Draw at Idle |
30 mA |
|
Current Draw Operating (No Load) |
500 mA |
|
Dimensions (L x W x H) |
40.6 x 19.8 x 37.8mm |
|
Weight |
57g (2.11oz) |
|
Lead Length |
310mm |
