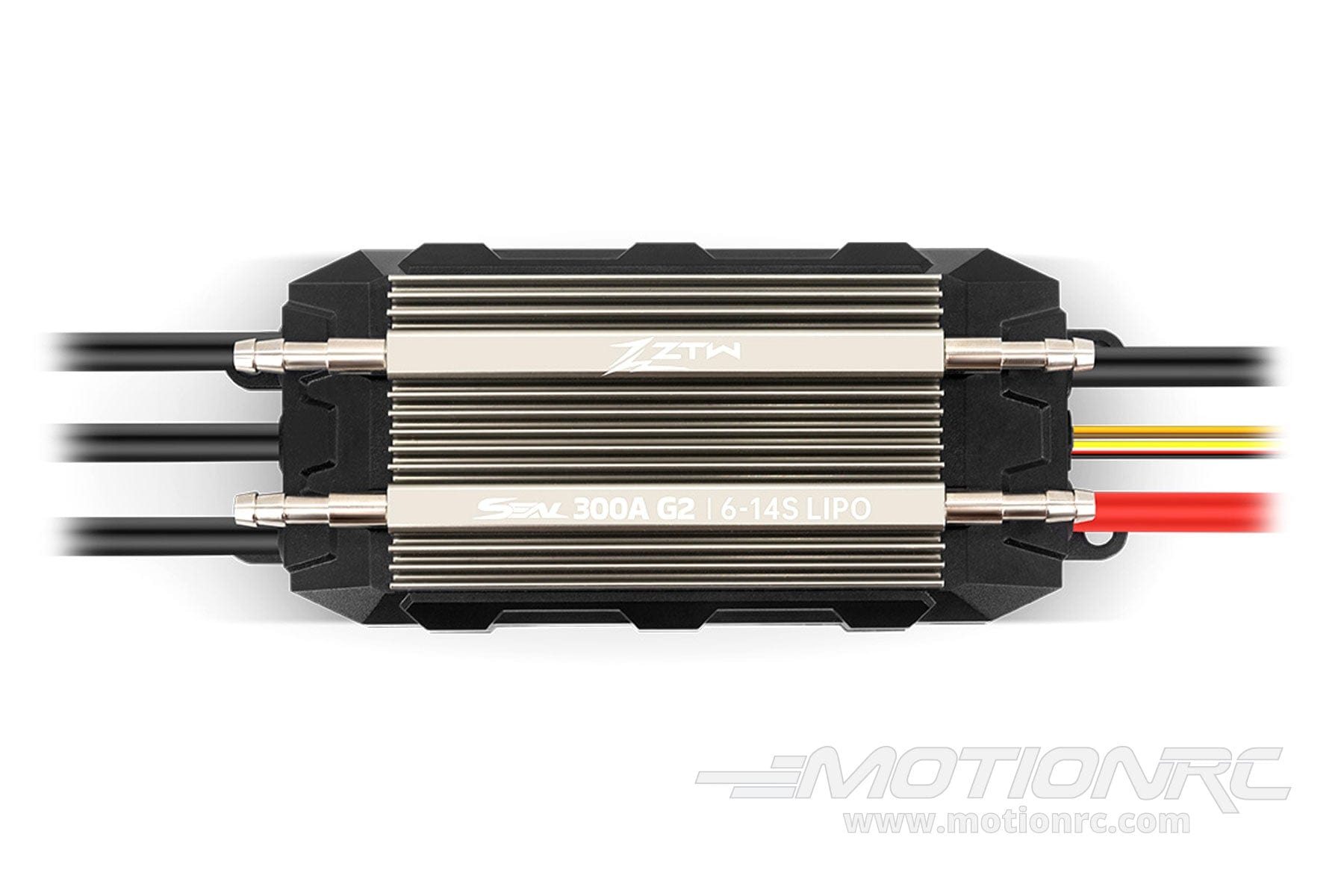

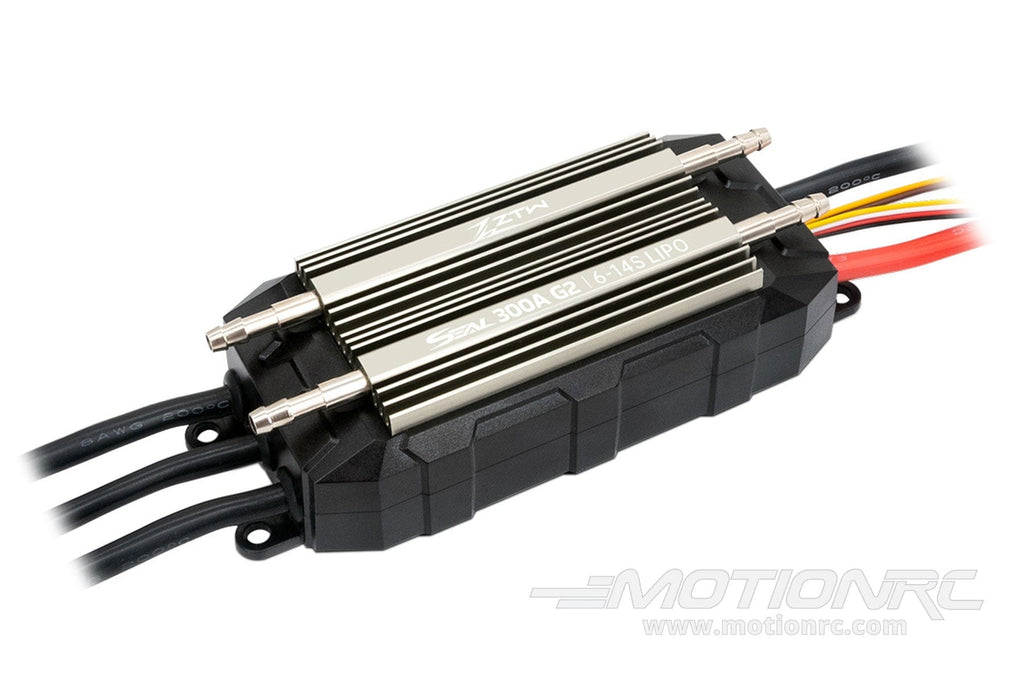

Seal G2 300A High Voltage Boat ESC from ZTW - ZTW7300410
The Seal G2 series is designed for boating enthusiasts seeking the utmost in performance and reliability. Featuring an all-new, compact design that is shorter and narrower than its predecessor, the series is available in a range of sizes to deliver efficient, high-performance power suitable for various boat types. The advanced 32-bit microprocessor ensures quick and precise throttle response, allowing for smooth acceleration and excellent throttle linearity. If you’re looking for the ultimate high-power solution for your marine model, the Seal G2 series is just the ticket!
Key features include water-cooling technology, a high-power adjustable SBEC, real-time telemetry data (via LCD programming card or ZTW app) and a variety of programmable options. These can be easily adjusted using the optional programming card or mobile app (Bluetooth module required for app programming - sold separately), allowing users to tailor settings to their specific needs. Its durable construction and high-quality components ensure reliable performance in challenging marine environments, while the compact design facilitates easy installation.
 |
32-Bit Microprocessor Equipped with a powerful high-performance 32-bit microprocessor, the ESC responds faster, start-up is smoother, and the throttle linearity is optimized. |
 |
Fully Protected Includes protection for start-up, overheating, low-voltage cut off, phase loss, signal loss, etc., to ensure your components stay in working order. |
Features:
- Designed for use with 6-14S LiPo batteries
- High-performance 32-bit microprocessor with an operation frequency of up to 170MHz for enhanced throttle response, acceleration, and throttle linearity
- Real-time telemetry data provides current, voltage, temperature, RPM, throttle and ESC status (via LCD programming card or ZTW app)
- Advanced MOSFET technology minimizes heat generation for increased reliability
- Waterproof design with an IP67 rating and water-cooling for efficient heat dissipation
- Bidirectional functionality with two running modes: “Forward Only” and “Forward and Backward”
- Multiple protections against start-up issues, overheating, low-voltage cutoff, signal loss, and phase loss
- Compatible with most sensorless brushless motors on the market
- Fully programmable using the ZTW G2 LCD ESC Programming Card or mobile app (Bluetooth module required for programming via app – sold separately)
Includes:
- ZTW Seal G2 300A High Voltage ESC
- User manual
Optional:
- ZTW G2 LCD Programming Card - Click here for more info
- ZTW Bluetooth Programming Module - Click here for more info
Product Specifications:
Length |
130mm / 5.11in |
Width |
64mm / 2.51in |
Height |
38mm / 1.49in |
Weight |
542g |
MAX Output |
Continuous current 300A |
Burst Output |
1800A |
Battery |
6-14S LiPo/LiHV |
BEC Output |
N/A |
Power Connector |
None, bare leads |
Motor Connector |
None, bare leads |
