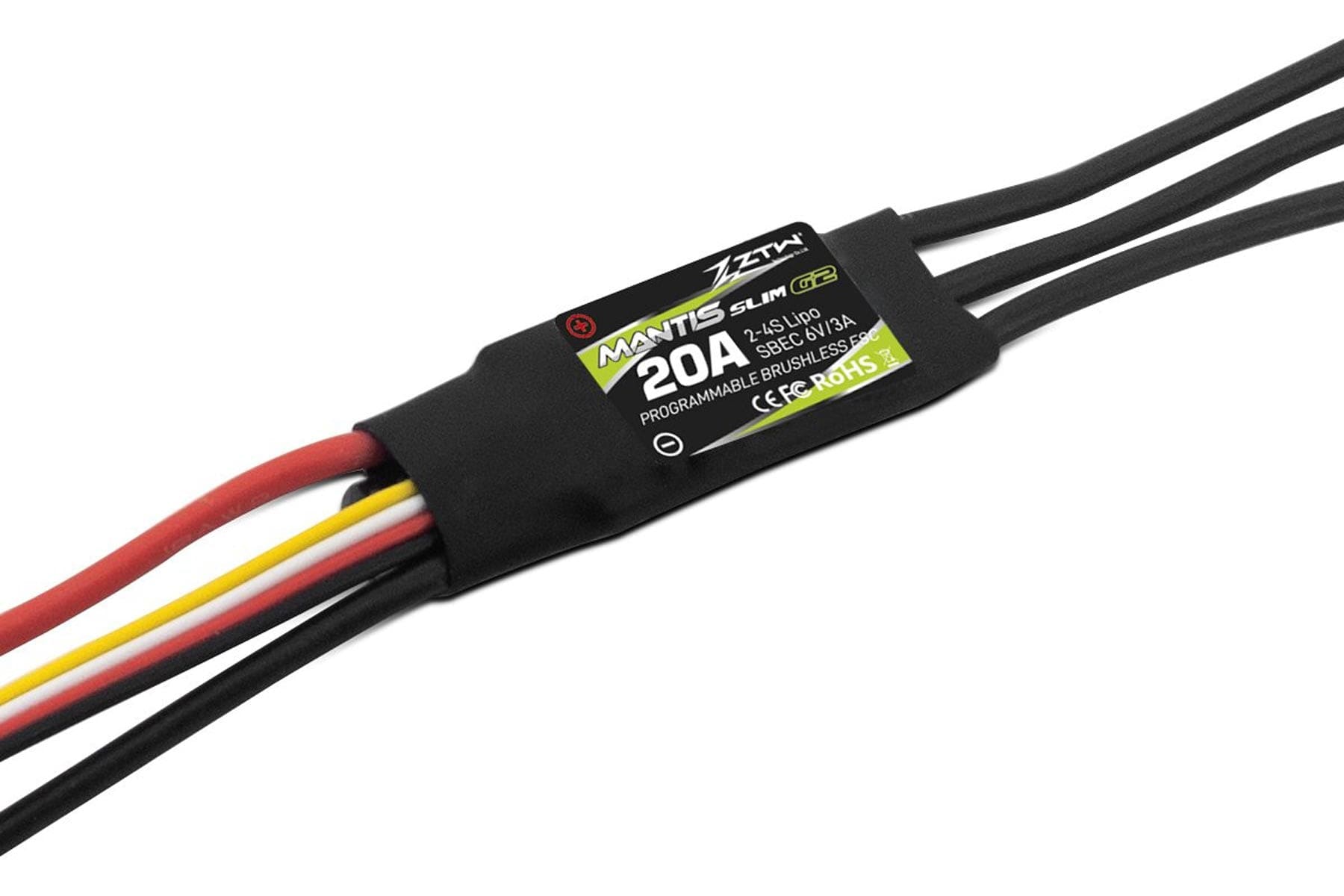

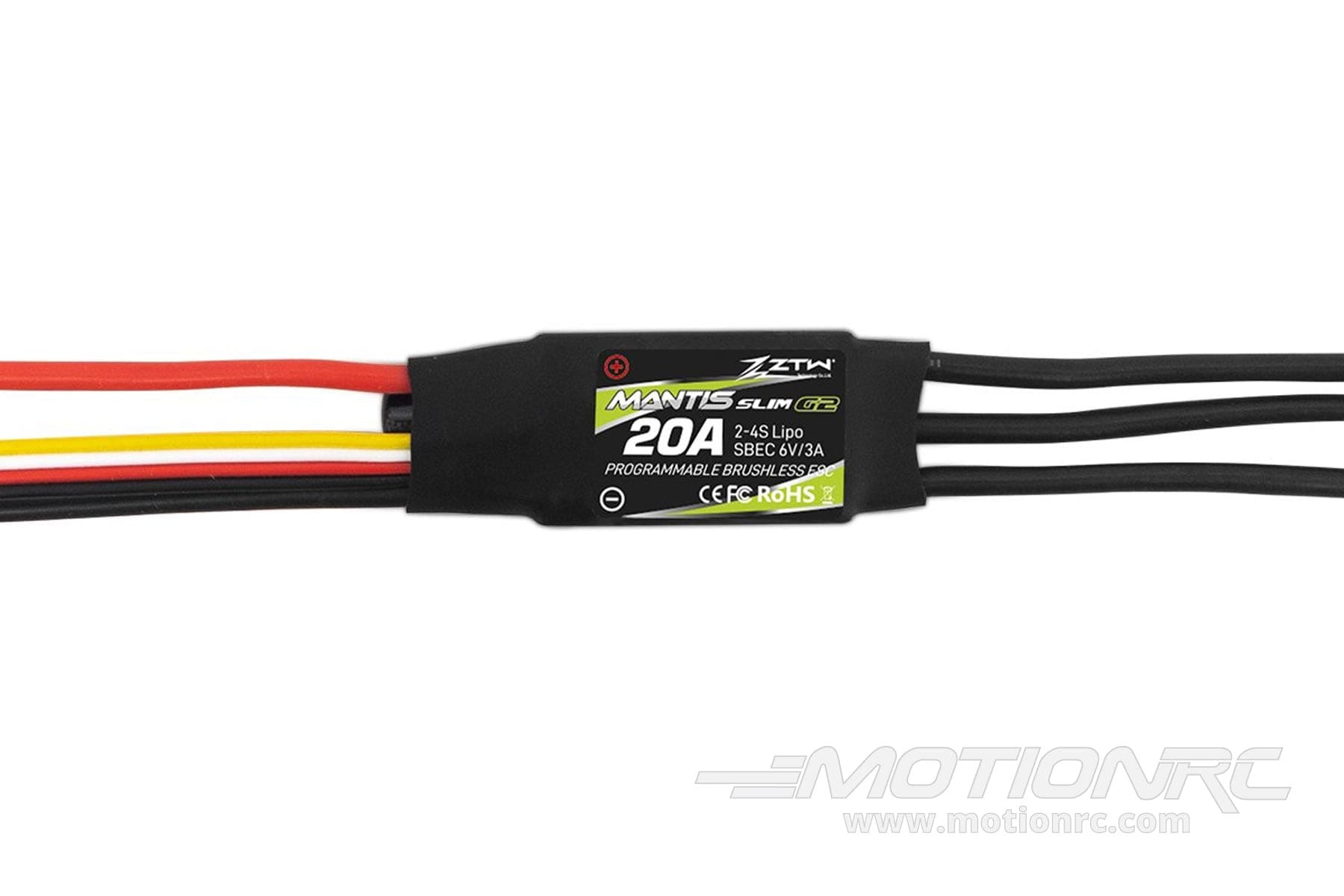

Mantis Slim G2 20A ESC with 3A SBEC from ZTW - ZTW2020211
The ZTW Mantis series is designed as a performance upgrade for your stock/OEM ESC. Its performance, feature set, and stability make it the perfect enhancement for your RC electric airplane or helicopter. It features compact size, light weight, simplified PCB design, super-smooth start up and throttle linearity, multiple circuit protections, governor, high amp BEC output and more. If you want to boost the performance of your stock ESC, the ZTW Mantis is an ideal choice offering a long list of advanced features and solid, reliable construction.
 |
32-Bit Microprocessor Equipped with a powerful high-performance 32-bit microprocessor, the ESC responds faster, start-up is smoother, and the throttle linearity is optimized. |
 |
Fully Protected Includes protection for start-up, overheating, low-voltage cut off, phase loss, signal loss, etc., to ensure your components stay in working order. |
Features:
- Supports high RPM motors and can be used with most RC motors
- Fully programmable via the ZTW G2 programing card
- Saves energy through greater efficiency
- Super smooth and accurate throttle linearity
- Power arming protection (prevents the motor from accidentally running when switched ON)
- Auto throttle shut down in a signal loss situation
- Safety thermal over-load protection
- Uses the new generation of the MOSFET to ensure the ESC stays within operating temperatures and can support peak current draws
- High performance 32-bit microprocessor
Includes:
- ZTW Mantis Slim G2 20A ESC with 3A SBEC
- Pre-installed XT30 Connector (power connector) and 2mm bullet (motor connector) for your convenience
- Instruction manual
Optional:
- ZTW G2 LCD Programming Card - Click Here for More Info
Product Specifications:
Length |
36mm / 1.42in |
Width |
16mm / 0.63in |
Height |
10mm / 0.39in |
Weight |
11g |
MAX Output |
Continuous Current 20A |
Burst Output |
30A |
Battery |
2-4LiPo/5-12NC |
BEC Output |
6V/3A |
Power Connector |
XT30 |
Motor Connector |
2mm bullets |
