1/16 Scale Pololu Qik 2s12v10 Dual Serial Motor Controller from Torro - TOROP-01012
The Pololu Qik 2s12v10 Dual Serial Motor Controller is a high performance and compact solution for controlling two DC motors. Designed for use in demanding projects, this controller offers versatile and reliable motor control for a wide range of modeling and robotics applications.
Applications:
- Robot drive systems
- Remote-controlled vehicles
- Automation technology
- Modelling and prototyping
Features:
- Control two DC motors with precise control over speed and direction. The controller offers 13 A continuous current per channel and can handle peak currents of up to 30 A per channel, making it ideal for powerful motors
- The controller supports both non-inverted TTL serial and RS-232 interfaces, allowing easy integration into various microcontroller-based projects
- The Qik 2s12v10 has extensive protection mechanisms, including reverse polarity protection, thermal shutdown protection and current sensors. These functions ensure safe and stable performance, even under extreme conditions
- Thanks to its compact construction and sophisticated design, the controller is easy to install and integrate
- With integrated status LEDs and comprehensive documentation, you can quickly get started with your project
- The controller is fully compatible with the Open Panzer Board, making it the ideal addition for remote-controlled vehicles, robot projects and other mechatronic applications
Includes:
- Torro 1/16 Scale Pololu Qik 2s12v10 Dual Serial Motor Controller

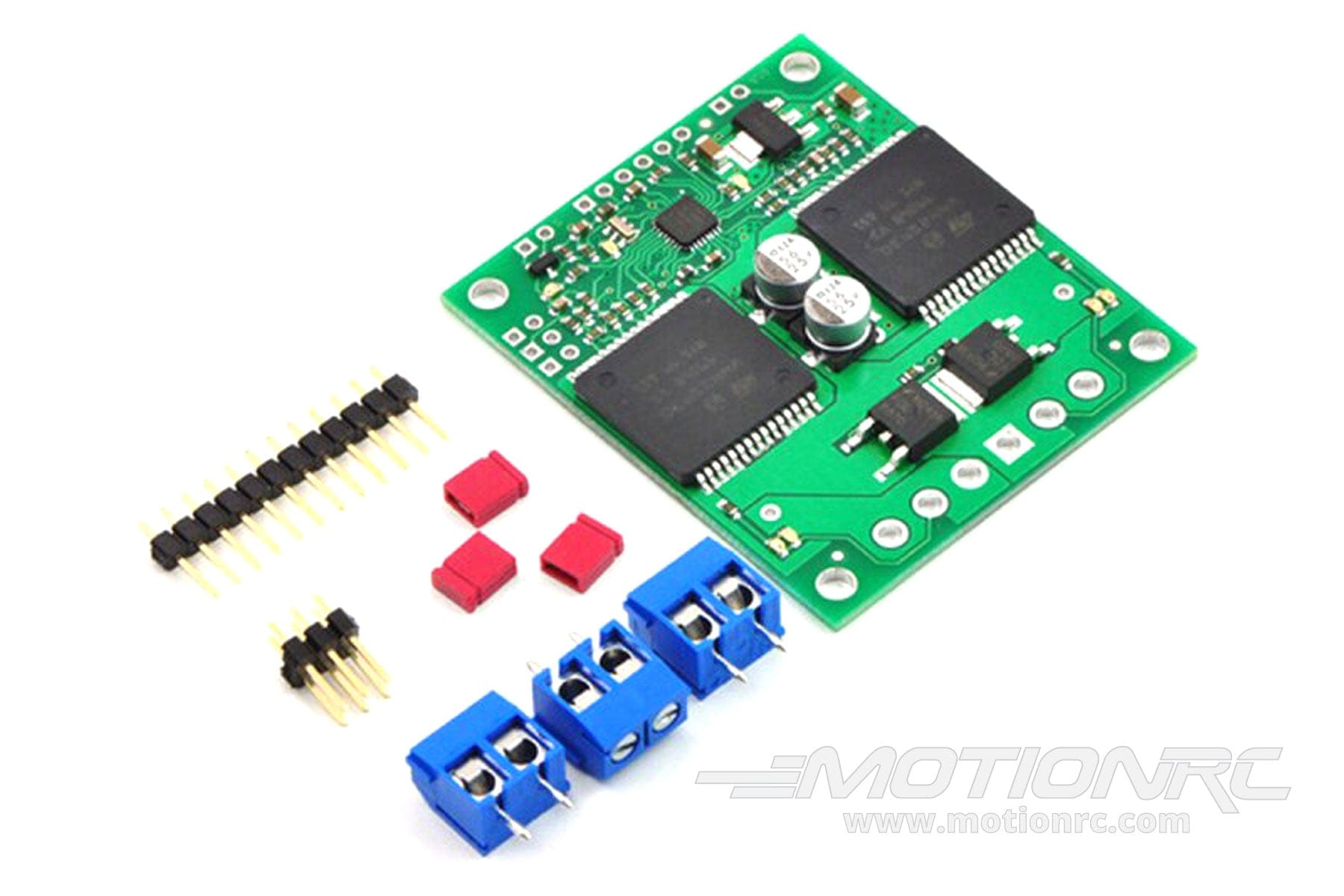

- Connection cable set
- Detailed documentation (digital) on the Pololu website or via the support tab
Product Specifications:
Length |
38mm / 1.49in |
Motor Driver |
VNH2SP30 x2 |
Motor Channels |
2 |
Control Interface |
Non-inverted TTL serial (2-way); RS-232 serial (1-way) |
Minimum Operating Voltage |
6A |
Maximum Operating Voltage |
16V |
Continuous Output Current |
13A per channel |
Peak Output Current |
30A per channel |
Auto-Detect Baud Rate Range |
1200 ā 115.200 bps |
Available Fixed Baud Rates |
115.200 bps, 38.400 bps, 9600 bps |
Available Fixed Baud Rates |
19,7 kHz, 9,8 kHz, 2,5 kHz, 1,2 kHz, 310 Hz, 150 Hz |
Reverse Voltage Protection |
Yes |
