ADP750 750W 12V 62.5A DC Power Supply from ToolkitRC - TK24300
The ToolkitRC ADP750 is a versatile 750W DC power supply designed to seamlessly power ToolkitRC's lineup of high-performance battery chargers. Offering a powerful 12V output up to 62.5 amps, the ADP750 provides the robust, reliable power your ToolkitRC chargers demand. The modern design features multiple outputs, including 3 x XT60 connectors that plug directly into compatible ToolkitRC chargers, eliminating the need for additional cables or adapters. An integrated cooling fan keeps temps down for cool, efficient operation. With its universal 100-240V AC input, the ADP750 can be used with ToolkitRC chargers anywhere you need dependable power for your charging and RC electronics setup.
|

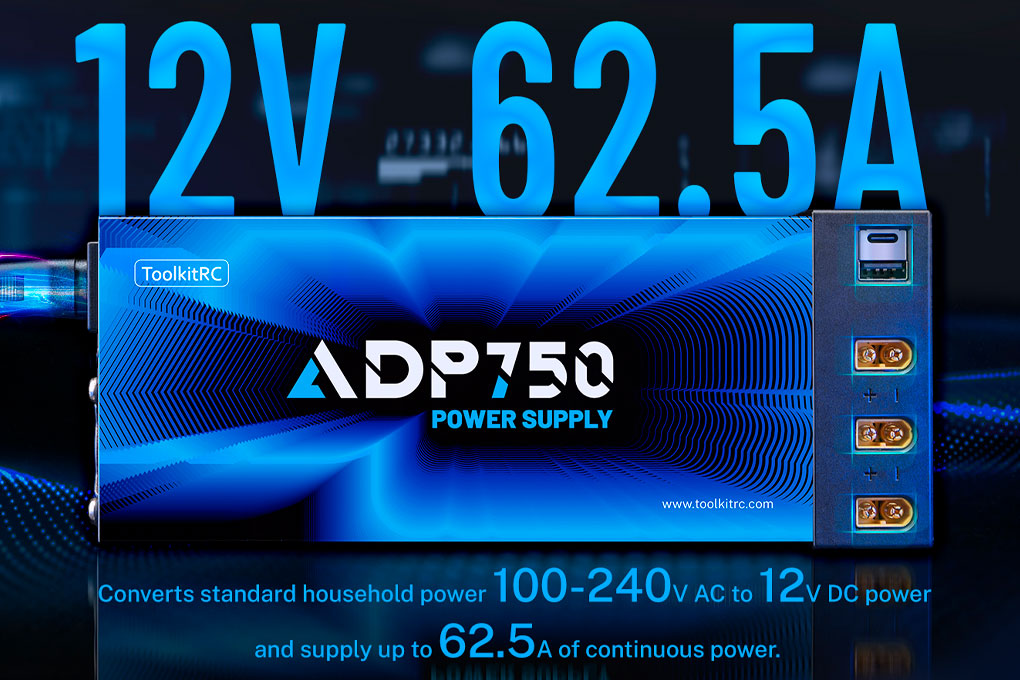

High Power Output Providing 12V DC output at up to 62.5A, the ADP750 offers big power for all of your charging needs. |
|

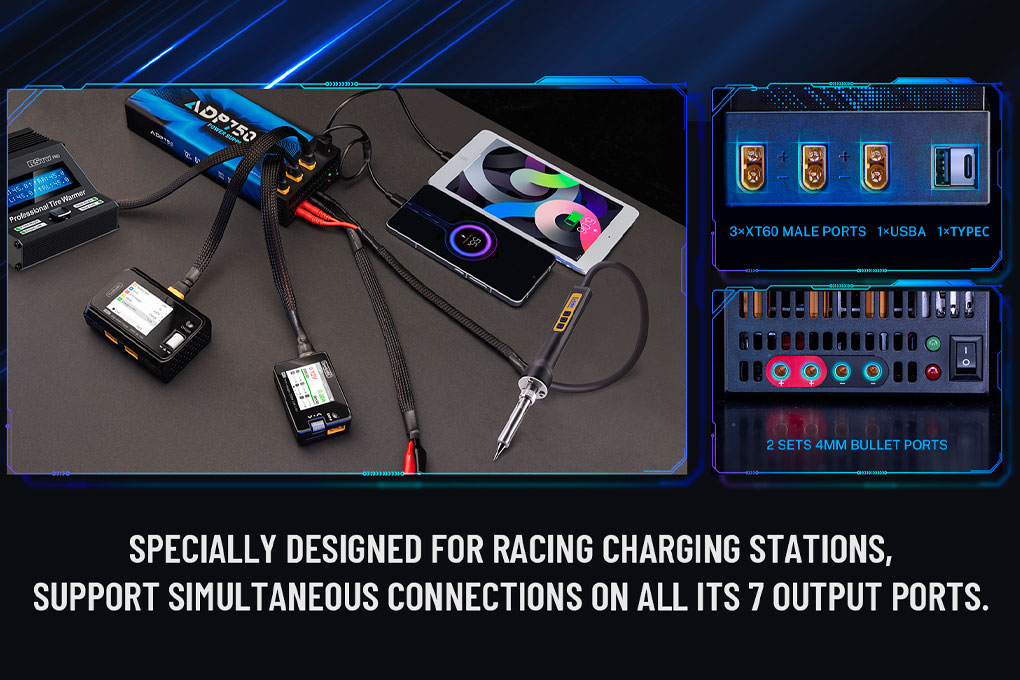

Multiple Output Ports The ADP750 features a wide range of output ports (7 in total) allowing for the simultaneous connection of multiple chargers and other electronic devices. |
|

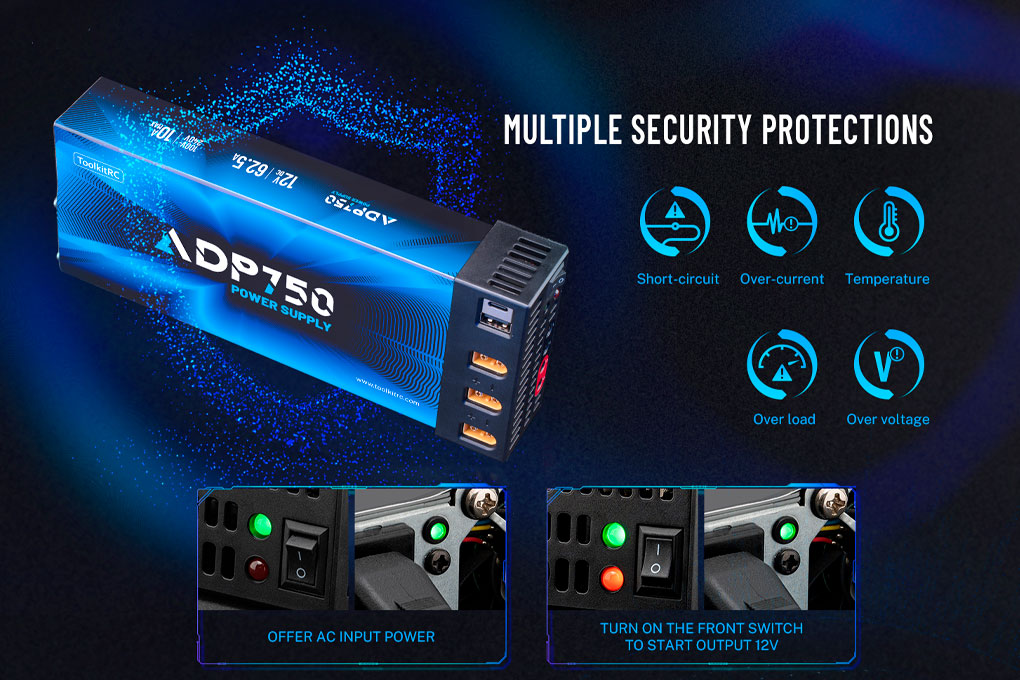

Comprehensive Safety Features The ADP750 provides short circuit, overcurrent, temperature, overload and overvoltage protection. |
|

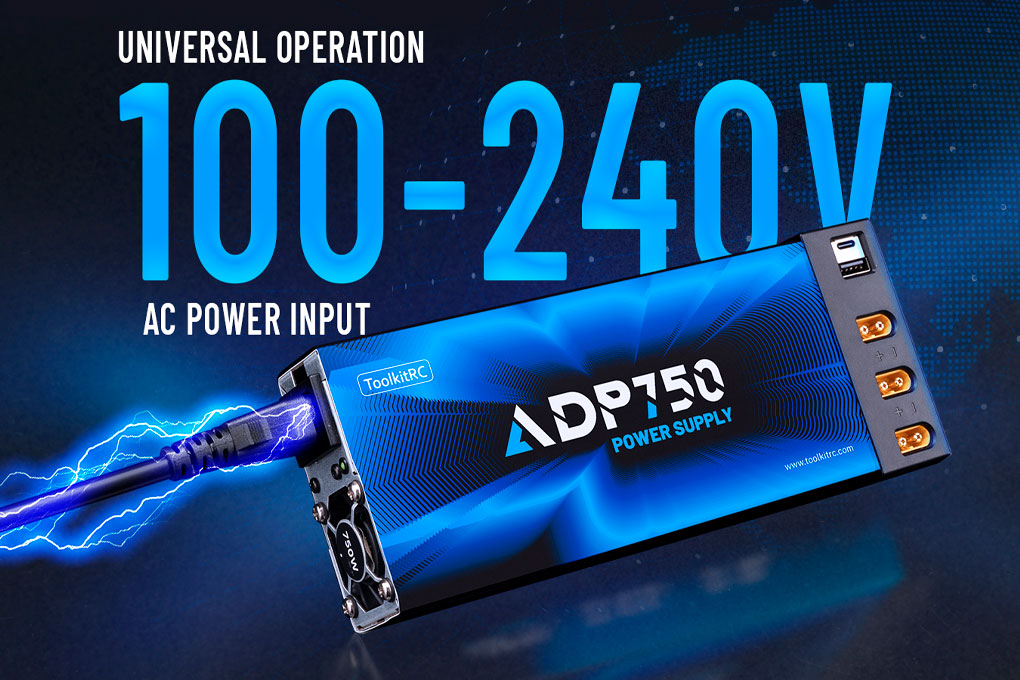

100-240V AC Input Simply plug the ADP750 into any standard wall outlet for a convenient and tidy power solution. |
Features:
- 750W output power
- 12V DC output up to 62.5A
- Universal 100-240V AC input
- 3 x XT60 output connector ports (compatible with most ToolkitRC chargers)
- 2 x 4mm bullet connector output ports
- 1 x USB A output port
- 1 x USB C output port
- Reliable performance to power ToolkitRC charging gear
- Comprehensive safety features
- Ideal for use in the workshop or field
Includes:
- ToolkitRC ADP750 750W 12V 62.5A DC Power Supply
- XT60 female to XT60 female cable
- Dual XT60 female to XT90 female cable
- XT60 female to 4mm bullet connectors cable
- AC power cord
Product Specifications:
|
Voltage |
100-240V |
|
Input AC Frequency |
50-60Hz |
|
Output Voltage |
12V DC |
|
Output Current |
MAX 62.5A |
|
Current Overload Protection |
Yes |
|
Input Fuse |
N/A |
|
LCD Display |
N/A |
|
Power Efficiency |
N/A |
|
Power Factor |
N/A |
|
Cooling Method |
Cooling fan |
|
Operating Temperature |
-10-40°C |
|
Operating Humidity |
N/A |
|
Dimensions (L x W x H) |
227 x 90.2 x 42.4mm (8.93 x 3.55 x 1.66 in) |
|
Weight |
1050g (2.31 lbs) |
