1/16 Scale German Tiger 1 Heavy Tank Full Option by Tamiya - KIT - TAM56010
Version Info: This tank is in "KIT" form and requires your own 4 Channel radio, receiver, ESC, charger and battery to run. (See Requires below for information).
Tamiya has put incredible power and versatility of the German Tiger I in your fingertips with this 1/16 scale, fully functional R/C tank.
The front-mounted gearbox contains two Type 380 motors that can operate together or individually to produce forward/reverse running and pivot turning. Metal torsion bars and suspension arms combine with the wide tracks to smoothly absorb bumps and dips in the terrain and provide high maneuverability. In addition, realistic engine sounds accompany the tank as it starts up, drives, and stops to idle. Hull-mounted main gun can be elevated, depressed, and swung to the left and right.
All the real sounds!
The only working King Tiger tank in the world is on display at the Saumur Tank Museum in France. Since the Tiger I used basically the same type of Maybach powerplant, some Tamiya staff members made their way to France to investigate. They recorded all the sounds of the real tank including; battery start-up, crank start-up, fly-wheel sound, etc. All the sounds of the enormous V-12 700hp engine have been clearly recorded and are waiting for you in Tamiya's 1/16 R/C Tiger I kit.
Visit the Official Tamiya 1/16 Scale German Tiger 1 Heavy Tank Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
 |

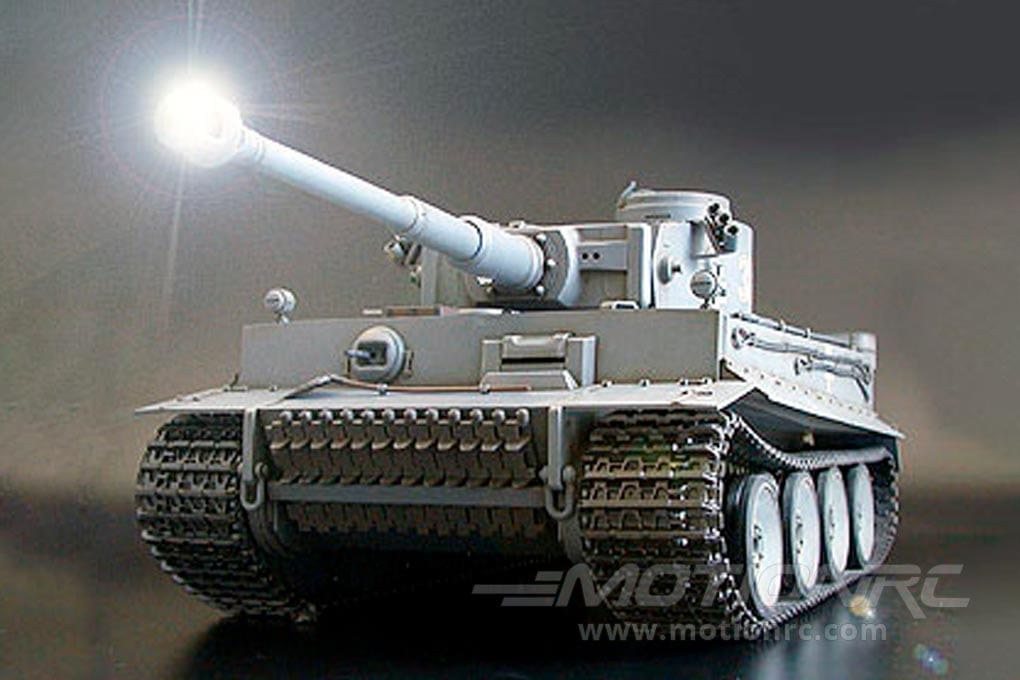

Realistic Firing Action Main gun firing action is one of the most impressive features of this model. When firing, muzzle flashes, speaker roars and recoil gearbox retracts gun barrel, then slowly returns it to standard position. |
 |

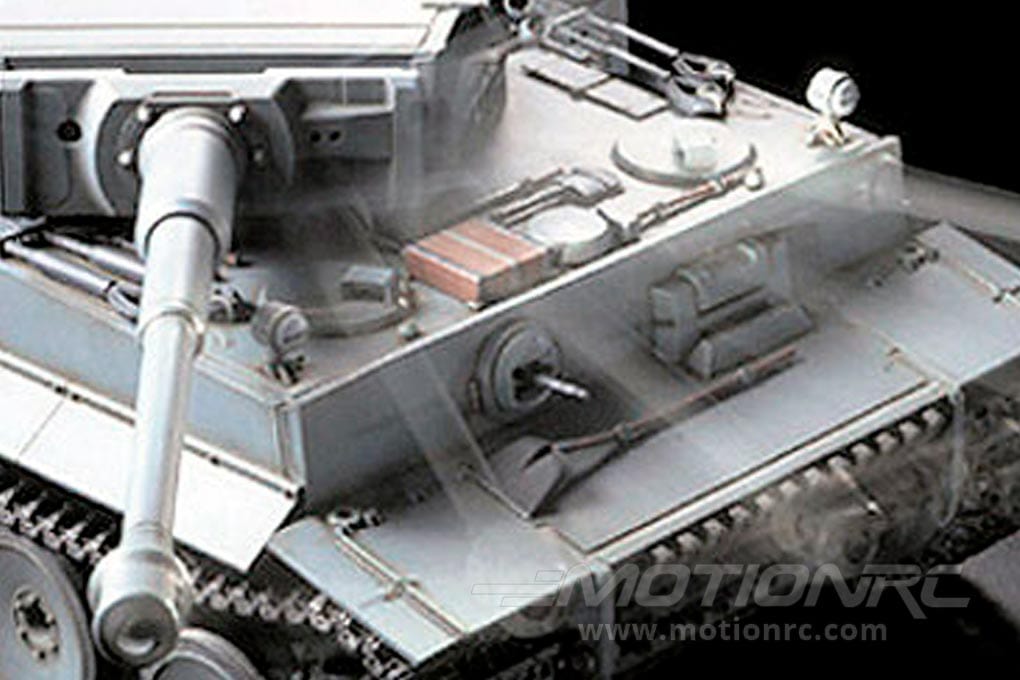

340 Degree Turret Rotation The turret can be rotated approximately 340 degrees. The gun barrel can be controlled within a 20 degree range. The moving speed can be controlled by transmitter stick. |
 |

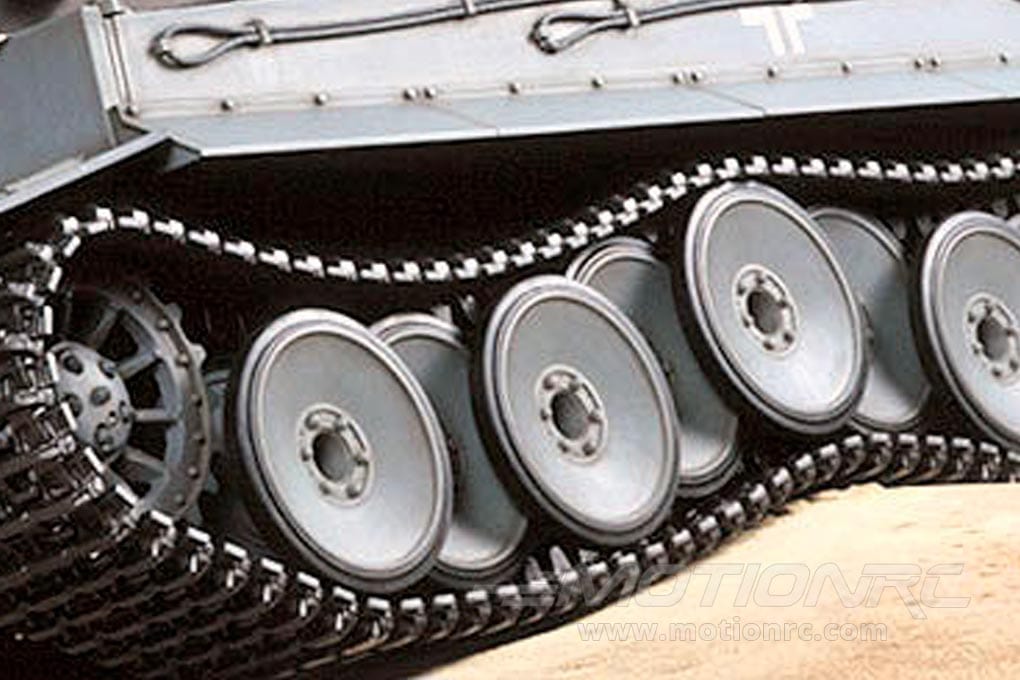

Independent Suspension Independent suspension is damped by torsion bar springs, just like the full size Tiger I. Combined with pre-assembled track, they provide smooth, exciting and realistic maneuverability, even on rough terrain. |
 |

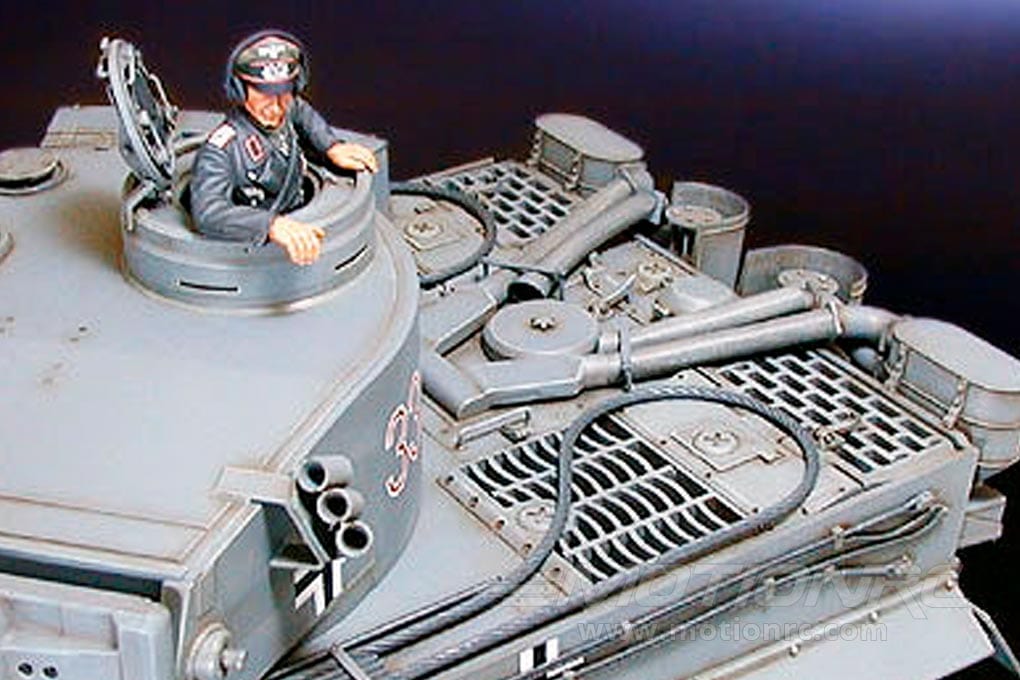

Exceptional Realism The tank commander figure is recreated with realistic detail. This model also recreates distinctive features of the Tiger I such as cylindrical commander's cupola, smoke dischargers, turret w/pistol port, air cleaner, equipment and texture of armor plates. |
 |

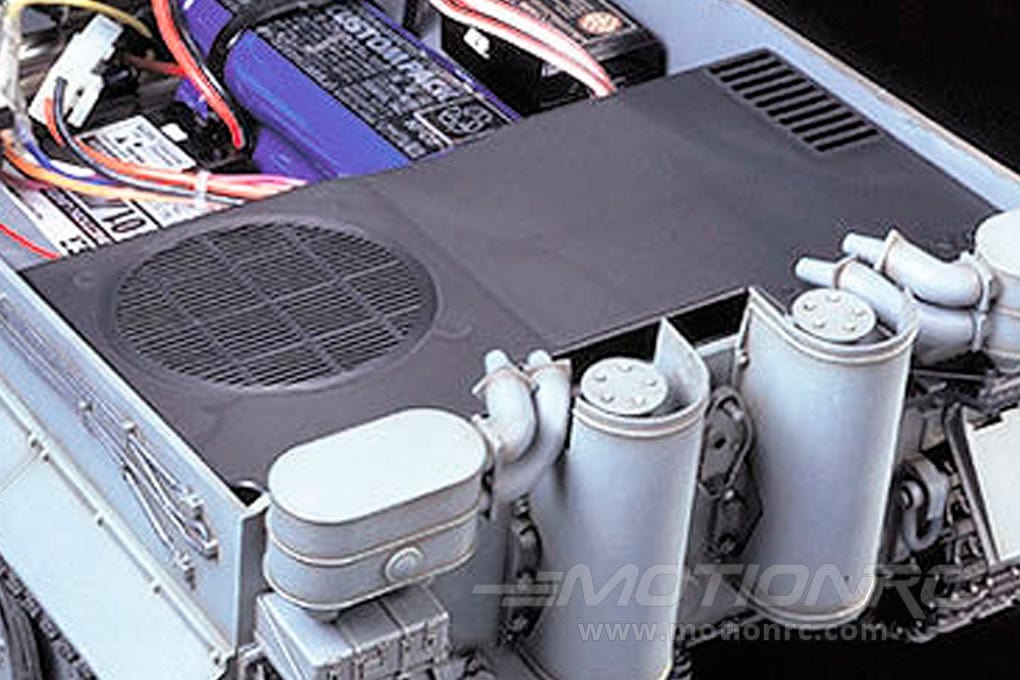

Realistic Sounds The 60mm diameter speaker box at the rear of the hull provides realistic sounds. |
 |

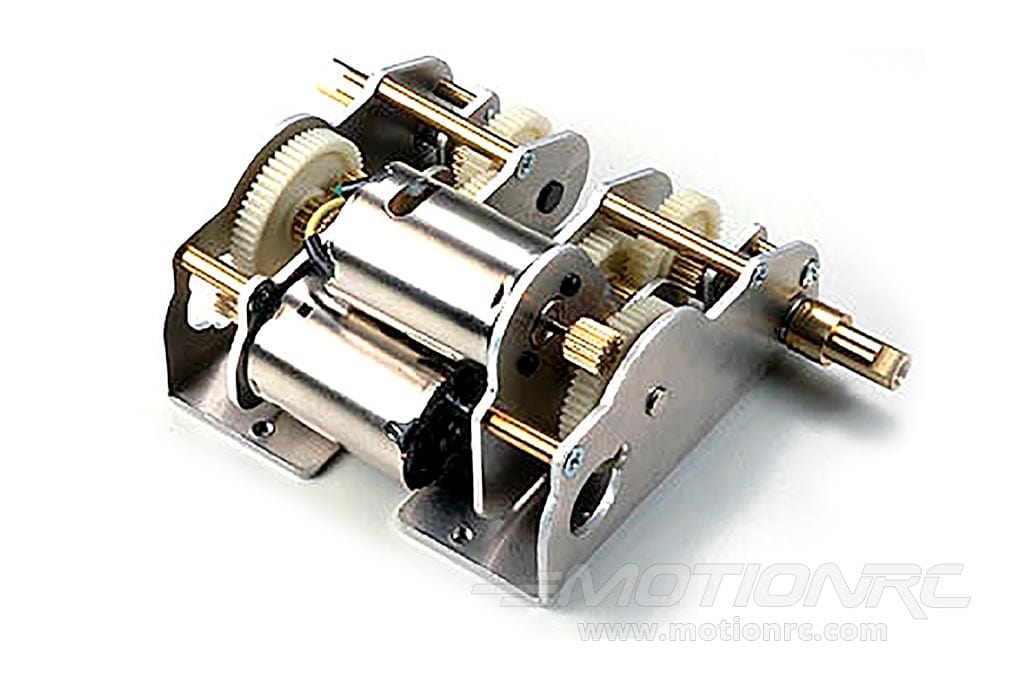

High Torque System Equipped with a factory-assembled independent twin gearbox and powered by two RS-380 motors and has a 36.98:1 gear ratio. The high torque system enables the heavy 4,100g tank to maneuver superbly. |
Features:
- Front-mounted gearbox contains two Type 380 motors that can operate together or individually to produce forward/reverse running and pivot turning
- Metal torsion bars and suspension arms combine with the wide tracks to smoothly absorb bumps and dips in the terrain and provide high maneuverability
- Realistic engine sounds accompany the tank as it starts up, drives, and stops to idle
- Hull-mounted main gun can be elevated, depressed, and swung to the left and right
Includes:
- Tamiya German Tiger 1 Full Option 1/16 Scale Heavy Tank - KIT
- Complete instruction manual
Requires:
- 4 Channel radio - select a minimum 4 channel radio from our Radio Collection
- 4 Channel receiver - select a minimum 4 channel receiver from our Receiver Collection
- Brushed Waterproof ESC - we recommend the PH-1060 Waterproof Brushed Crawler ESC (2-3S) (Coming Soon)
- 2-3S LiPo / 5-9 Cells NiMH - we recommend the Admiral 1300mAh 2S 7.4V 30C LiPo Battery with T Connector
Product Specifications:
Scale |
1:16 |
Length |
52.5cm / 20.6in |
Width |
23cm / 9.0in |
Height |
18cm / 7.0in |
Weight |
4535g / 159.9oz |
Body Material |
ABS Plastic |
Chassis Material |
ABS Plastic |
Track Material |
Metal |
Motors |
Two 380 motors (28x37mm) |
Bearings |
Metal Bushings |
Gearbox Gear Material |
Metal |
Adjustable Gear Ratio |
Fixed |
Differential Type |
Gear |
Suspension Type |
Idler Arm |
Sprocket |
Metal |
Road Wheels |
Metal |
Idler Wheel |
Metal |
Adjustable Idler |
No |
Turret Rotation |
320 Degrees |
Lights |
Yes |
Sound |
Yes |
Exhaust Effect |
Yes |
IR Battle Ready |
Yes |
Airsoft BB Launch |
Yes, 6mm |
Track Recoil |
Yes |
Cannon Barrel Recoil |
Yes |
Required Battery |
2S 7.4V - 3S 11.1V LiPo Battery (required) |
Required Radio |
4+ Channel (required) |
Skill Level |
Beginner |
Build Time |
1 Hour |
Recommended Environment |
Indoor / Outdoor |
