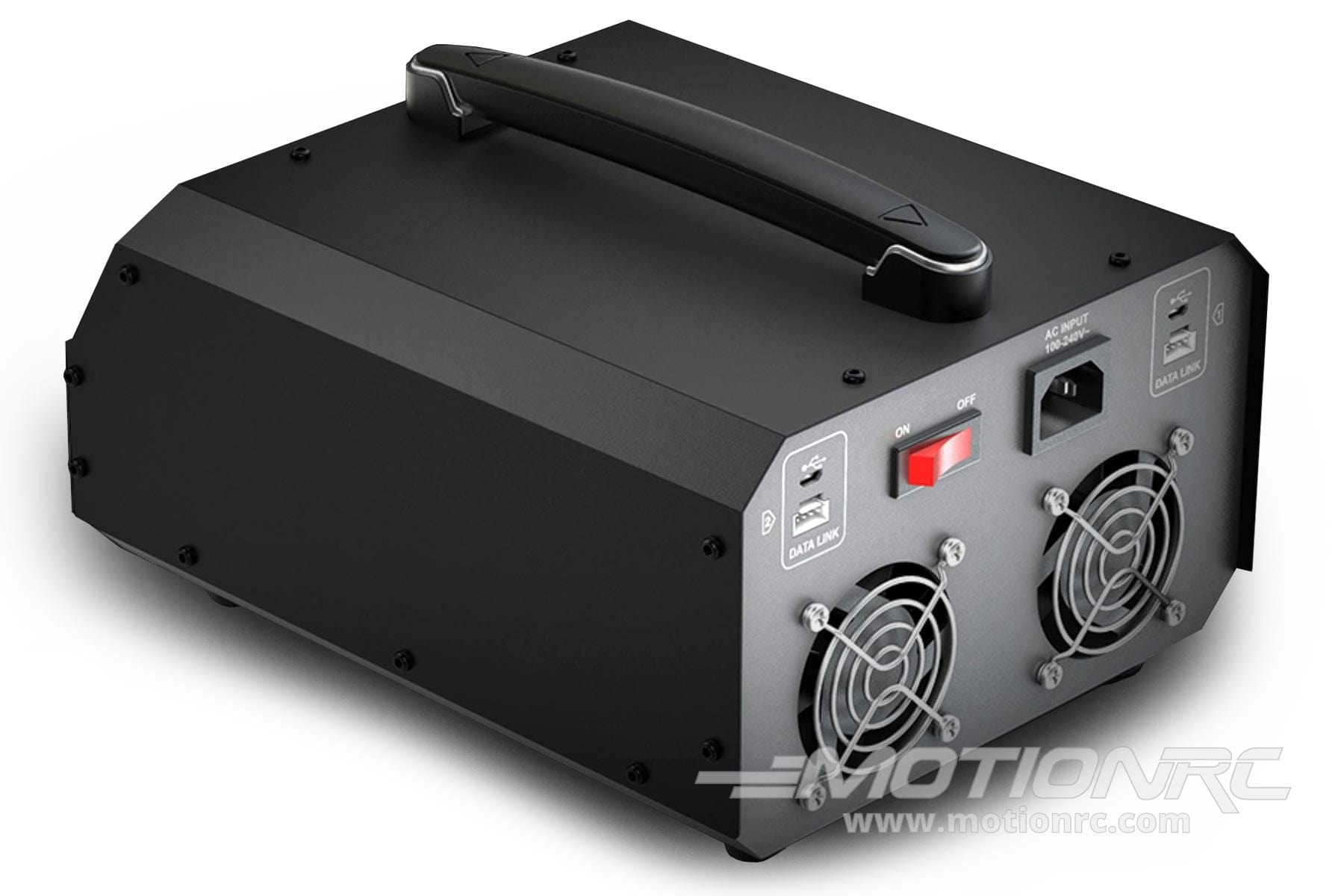

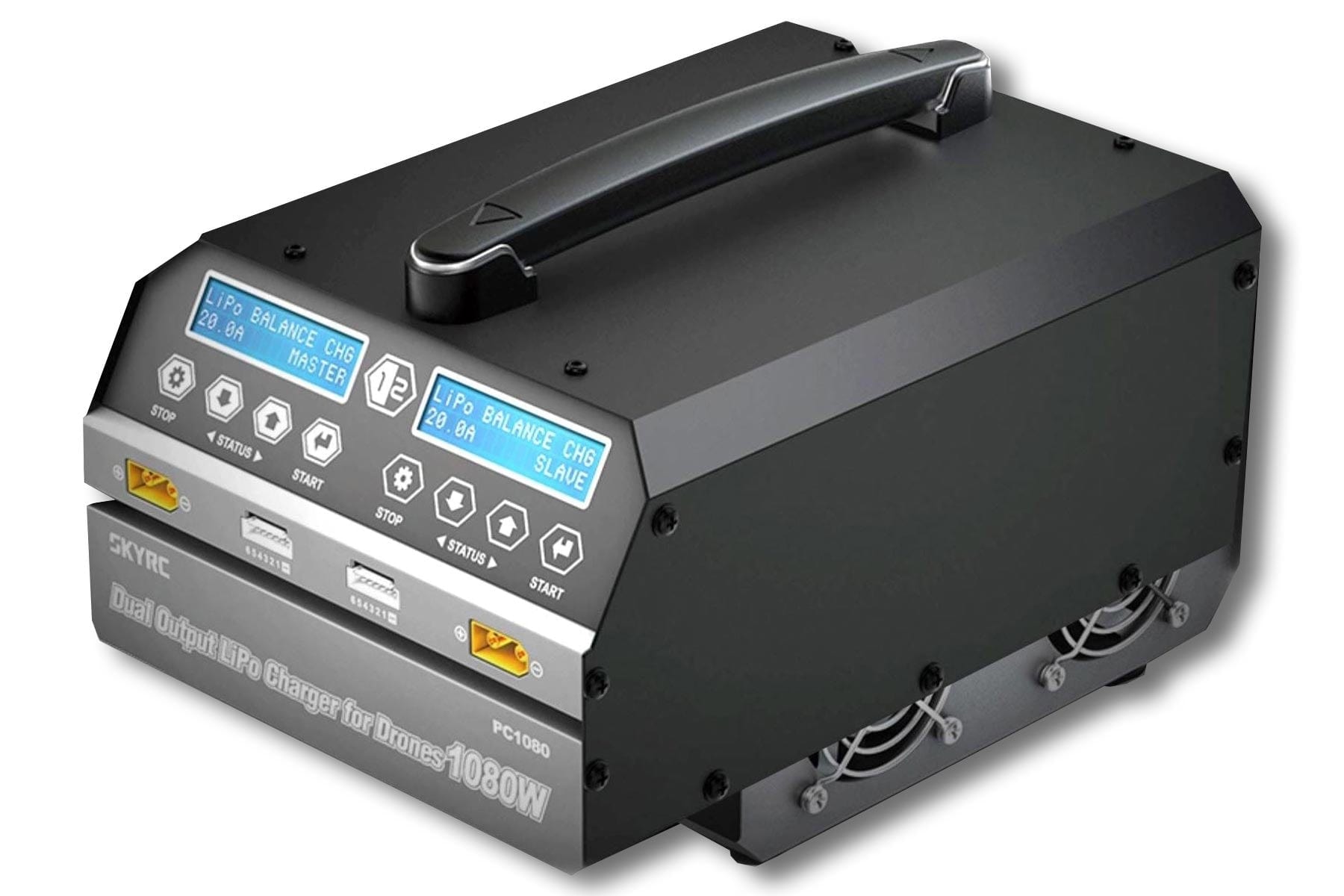

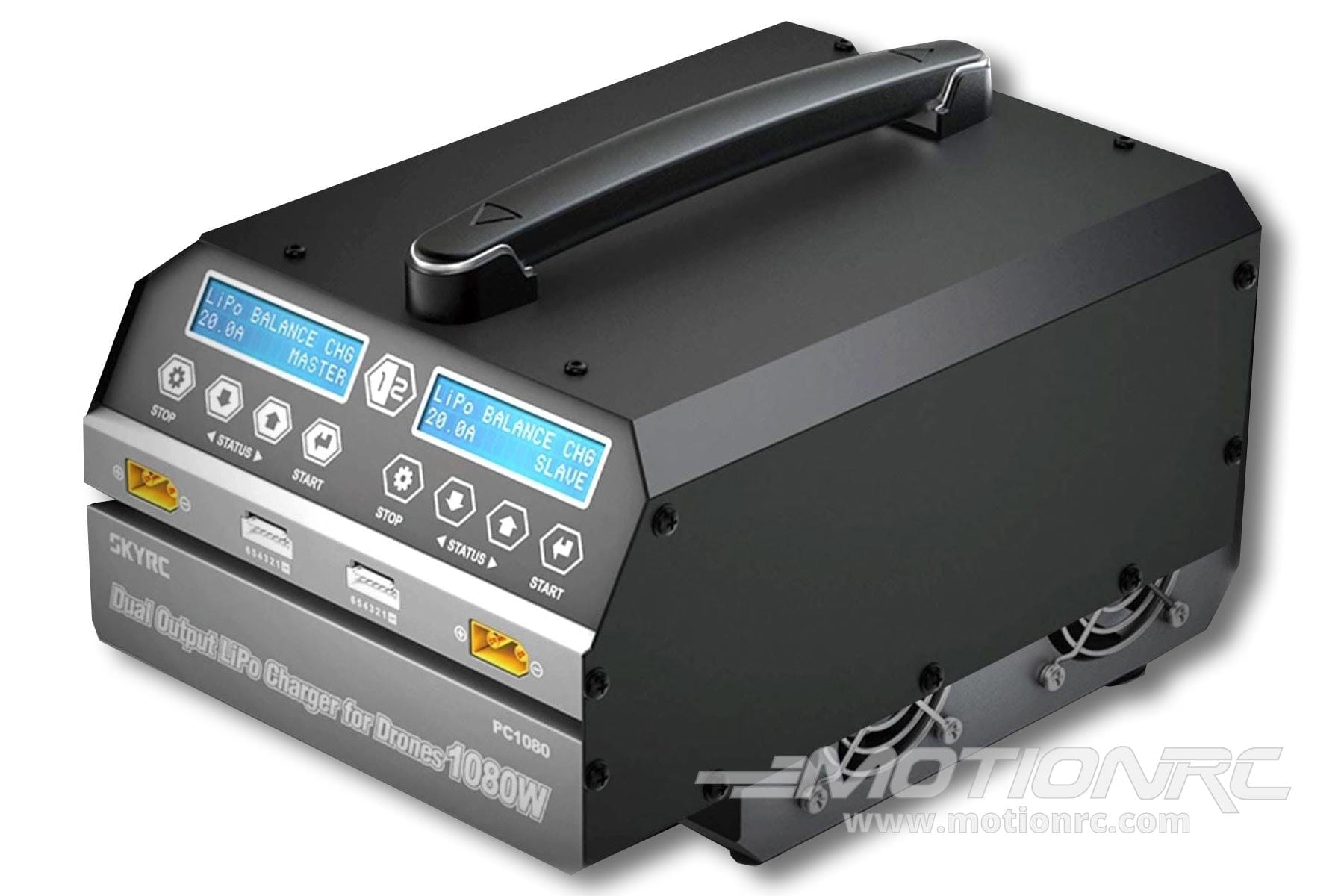

PC1080 1080W 6 Cell (6S) AC LiPo Dual Charger from SkyRC - SK-100124-03
The SkyRC PC1080 is a dual channel 6S LiPo charger for industrial application drones. It is reliable, safe and easy to operate with comprehensive functionality, such as a battery voltage meter, internal resistance meter, LiHV charging mode, and time saving synchronization mode.
Note: We recommend reading this Motion RC knowledge blog article about charger amperage and wattage ratings.
 |
Multi-Charger Synchronization This function enables you to control two or more PC1080 chargers at the same time via a data-cable. The SLAVE channel will follow the settings of the MASTER channel allowing the simultaneous charging of several batteries. |
 |
Charge Up To 12 Packs of Batteries At Once If you pair your PC1080 with G630 charging hubs (sold separately) you can simultaneously charge up to 12 batteries at once completely maximizing your charging potential! |
 |
32-Bit High Speed MCU For Peak Performance The 32-Bit High Speed MCU provides enhanced performance and highly functional capabilities and processing power to perform various battery management needs at your fingertips. |
 |
Qualified and Certified SkyRC products comply with the laws and regulations into each country we ship. Our products are designed, tested and approved to meet worldwide standards for Product Safety, Electromagnetic Compatibility and other regulatory compulsory requirements, when used for their intended purpose. |
Features:
- 32-bit High Speed MCU provides enhanced performance
- Active PFC uses a circuitry to correct the amount of power drawn to obtain the best ratio of power
-
Switched-mode Power Supply accepts power from mains supplies throughout the world
- Conformal coating helps electronics withstanding harsh environments, protecting them against moisture, dust, chemicals, corrosive attack and temperature extremes
- With G630 charging hubs (optional), an automatic charging management system, can charge 12 packs of LiPo batteries in sequence
- Dual ball bearing high speed cooling fans
- High Density Fin-type Aluminum Heatsink
- Battery Internal Resistance Meter
Includes:
- SkyRC PC1080 1080W 6 Cell (6S) AC LiPo Dual Charger
- AC Power Cord
- Data cable
- User Manual
Requires:
- Your choice of charging adapters and batteries
Never, under ANY circumstances, leave your charger unattended while charging a LiPo battery. Keep the charger away from moisture, dust, direct sunlight, or any heat sources. The charger should always be placed on a heat-resistant, non-flammable surface during charging. Never overcharge or exceed a 1C charge current. A 1C charge current means the charge current equals the capacity of the battery. For example, a 2200mAh battery should never be charged using a current greater than 2.2 Amps (2200mAh).
Product Specifications:
| AC Input | 100-240V |
| DC Input | N/A |
| Charge Circuit Power (AC Input) | 1080W |
| Charge Circuit Power (DC Input) | N/A |
| Charge Current Range | 0.1-20.0A x2 |
| Max Charge Current | N/A |
| Discharge Current Range | 0.1-2.0A |
| Discharge Power | 100W (50W x 2) |
| LiPo/LiHV Cells | 1-6S |
| NiMH/NiCd Cells | N/A |
| Pb(Lead Acid) Battery Voltage | N/A |
| Dimensions (L x W x H) | 272 x 202 x 118.6mm (10.70 x 7.95 x 4.66 in) |
| Weight | 4880g (10.75 lbs) |
