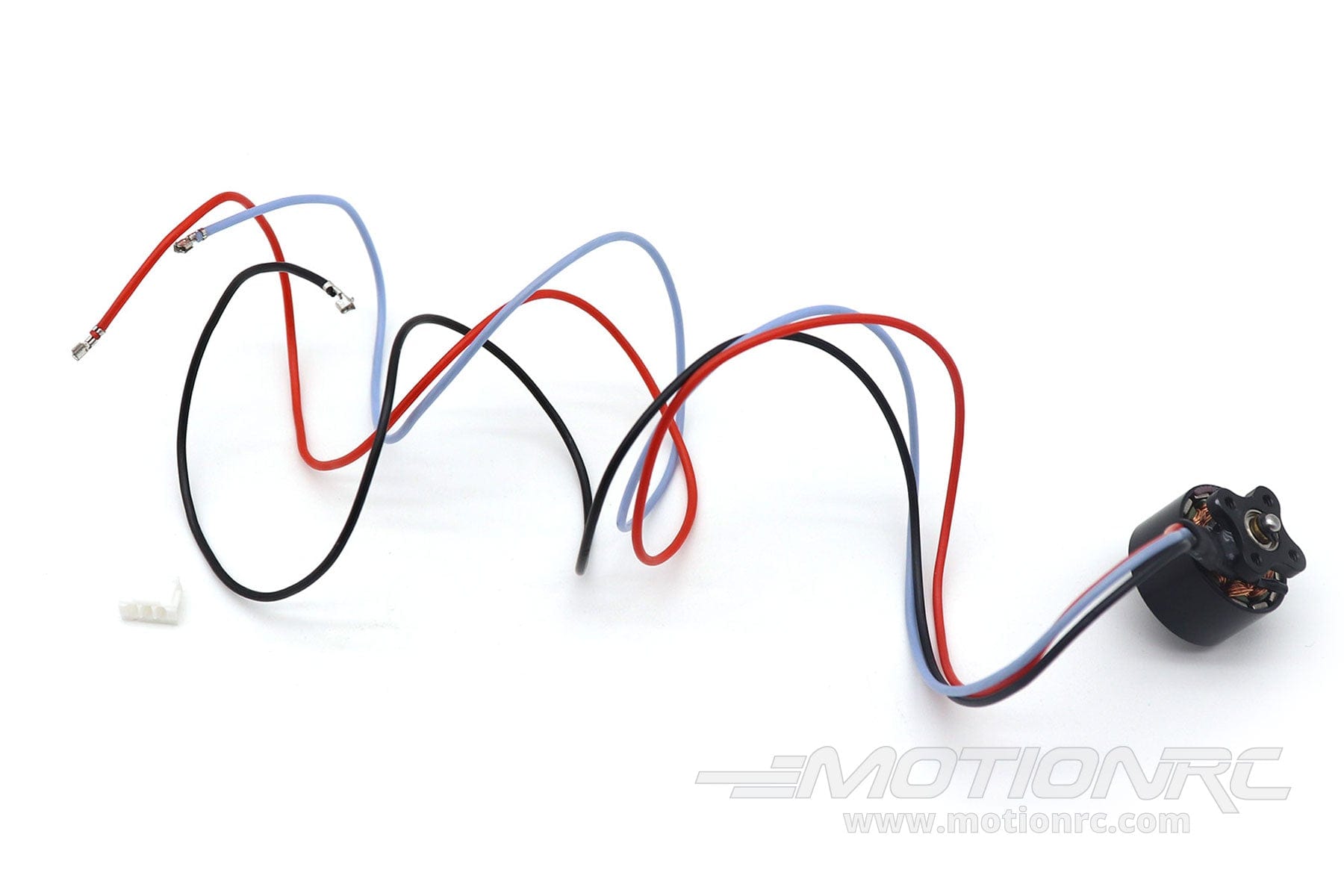

RotorScale 1204-7000Kv Brushless Tail Motor
$1849
1204-7000Kv Brushless Tail Motor from RotorScale - RSH1013-113
This is used as the tail motor for the RotorScale 180 size EC-135 helicopter.
Product Specifications:
Motor Type |
Outrunner |
Kv Rating (RPM/Volt) |
7000Kv |
Maximum Watts |
17W |
Continuous Current |
NA |
Maximum Burst Current |
2.3A |
Recommended Battery (Input Voltage) |
N/A |
Recommended ESC |
N/A |
Recommended Propeller / EDF |
N/A |
Slots, Poles |
12, 9 |
Shaft Diameter (A) |
1.5mm |
Shaft Length (B) |
4.9mm |
Motor Length (C) |
11.4mm |
Motor Diameter (D) |
18mm |
Overall Length (E) |
16.3mm |
Weight |
9.2g / 0.32oz |
Connector Type |
PH2.0 |
