Airwolf 800 Size Scale Helicopter ARF (Almost Ready to Fly) from Roban - RBN-AWS8

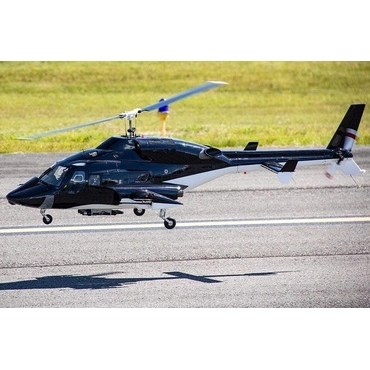

This is the Roban Airwolf Scale 800 ARF, a premium scale kit that offers unparalleled detail. From tip-to-tail the Airwolf body kit displays an accuracy of detail to the fictional full scale aircraft from the TV series, the kind of attention to detail not normally seen in the RC helicopter hobby.
This kit comes with a fully illuminated scale detail cockpit with illuminated instrument panel and overhead panel, joysticks, rudder pedals, aerials, windshield wipers, antenna, weapons, the special camera on each side of the fuselage and more. Floor and ceiling details can be crafted so once the interiors are installed you have an impressively scaled cockpit/interior. This kit includes electric retracts that are easy to install for that extra level scale appeal.
These scale kits house the cockpit in precisely the right location and the mechanics are built into the engine compartment just like in the full scale version. The Airwolf really impresses with the highly detailed and accurately scaled down profile.

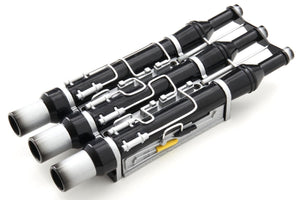

Please Note: The underside rocket launcher (RBN-AW8RL) is not included with the kit and is sold separately.
Visit the Official Roban 800 Size Airwolf Scale Helicopter ARF Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
Features:
- 2 Blade rotorhead and scale carbon fiber rotor blades
- 2 Tail blade head and scale carbon fiber tail blades
- Extremely detailed surface with molded panel lines and rivets
- 3-Point electric retract system for the ultimate scale finishing touch
- Completely illuminated scale cockpit
- Complete built In / partially pre-installed position lighting system (Controlled via AUX channel)
- Special CCPM mechanics built in the top section like the full scale
- Take off weight of 9kg (19.8 pounds)
- 1794mm long (71")
Includes:
- Roban Airwolf 800 size scale body
- Full 800 size helicopter mechanics
- 2 Carbon fiber rotor blades
- 2 Carbon fiber tail blades
- Complete illuminated scale cockpit
- Complete built in / partially pre-installed position lighting system
- 3-Point electric retract system
Requires:
- Helicopter flight controller - we recommend the BavarianDEMON 3X Flybarless System
- Electronic speed control (ESC) - we recommend the Castle Creations Phoenix Edge High Voltage 160A ESC With Cooling Fan
- Battery eliminator circuit (BEC) - we recommend the Castle Creations 20A BEC Pro
- Brushless motor - we recommend the EGODRIFT Scale Collection 4230EC Eclipse 4230-520kV Brushless Motor
- Three cyclic servos - we recommend the MKS DS1220 High Torque Servo Multi-Pack (3 Servos)
- Tail servo - we recommend the MKS DS HBL980
- 12 Cell 44.4V 5000mAh LiPo battery - we recommend the Admiral 5000mAh 6S 22.2V 50C LiPo Battery Multi-Pack in series
- 8 Channel radio - select a minimum 8 channel radio with pitch and throttle curves from our Radio Collection
- 8 Channel receiver - select a minimum 8 channel receiver from our Receiver Collection
Roban Scale Helicopters are intended for modelers who have advanced level building skills. Both ARF and KIT product formats require you to install your own electronics (ESC, servos, motor, etc). KIT product formats also require you to install your own helicopter mechanics. Because helicopter mechanics can vary greatly in size and shape, you may be required to modify the fuselage slightly (including cutting, drilling, etc.) to achieve a perfect fit. Roban fuselages are all handmade from fiberglass and therefore may have slight variation in tolerances between body panels, doors, or windows. These variations do not affect flight performance and can be easily adjusted by an experienced builder with proper tools. These precautions are intended for novice builders; an experienced modeler should have no issue achieving perfect results with these premiere scale helicopters kits.
Product Specifications:
Class / Size |
800 |
Power Type |
Electric |
Rotor Type |
Collective Pitch |
Body Material |
Fiberglass |
Overall Size (L x W x H) |
1850 x 580 x 510mm |
Flying Weight |
8,500g |
Main Rotor Diameter |
1660mm |
Main Rotor Blade Length |
750mm |
Tail Rotor Diameter |
280mm |
Tail Rotor Blade Length |
105mm |
Tail Drive Type |
Torque Tube |
Cyclic Servos |
3x MKS DS1220 - MKS6005-002 |
Tail Servo |
1x MKS HBL980 - MKS-HBL980 |
Power System |
560Kv Brushless Motor |
Electronic Speed Control |
160A High Voltage with EC5 Connector |
Recommended Battery |
2x 6S 22.2V 5000 mAh LiPo with EC5 Connector (in series for 12S) |
Battery Compartment Size (L x W x H) |
N/A |
Required Radio |
8 Channel |
Skill Level |
Expert |
Build Time |
4+ Hours |
Recommended Environment |
Outdoors |
Videos
Product Videos
Spare Parts
Product Spare Parts
1 - 32 of 91 results
Upgrades
Product Upgrades
1 - 4 of 4 results
Q&A
Product questions & answers
NOTE: Questions submitted on this page are answered by customers who have previously purchased this item. If you have a support related question that requires immediate assistance, please visit our Help Center
Support
Product support
Product Manuals:
- Roban Airwolf 800 Size Instruction Manual
- Roban Belt Drive Adjustment for 700/800 ARFs - Technical Notice
If you need any additional assistance, please visit the Motion RC Help Center
