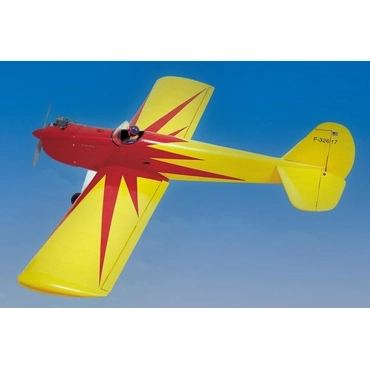

Space Walker 1580mm (62.2") Wingspan - ARF from Nexa - NXA1050-001
The Nexa Space Walker is a great model in the the world of scale airplanes. The Space Walker is an icon of American civil aviation. With a fantastic old-fashion design, including an open cockpit, inspired from aircraft that were produced in the 1930's, the Space Walker is especially cherished by amateur aircraft builders. The all-wood framework is covered in a red and yellow color-printed film that matches the traditional pattern of the full-size real-life aircraft. This ARF features all pre-covered balsa and light weight ply construction with pre-hinged control surfaces. Our recommend power system and electronics can be found below.
Visit the Official Nexa Space Walker 1580mm ARF Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
Features:
- Complete Balsa and lite-ply construction for rigidity and durability
- Covered from tip to tail in scale details
- Large battery hatch allows for your chosen electric or gas setup
Includes:
- Nexa Space Walker 1580mm (62.2") Wingspan - ARF
- Landing gear and wheels
Requires:
- 5 Channel radio - select a minimum 5 channel radio from our Radio Collection
- 5 Channel receiver - select a minimum 5 channel receiver from our Receiver Collection
- Brushless outrunner motor - we recommend the Admiral GP5 4220-770Kv Brushless Motor
- 65 Amp brushless ESC - we recommend the ZTW Mantis G2 65A ESC with 8A SBEC
- 4x 45g standard servos for elevator and rudder - we recommend Hitec D-645MW High Voltage High Torque Digital Metal Gear Servo Airplane Multi-Pack (4 Servos)
- 4 Cell 14.8V 4500 - 5000 mAh LiPo Batteries - we recommend the Admiral 5000mAh 4S 14.8V 40C LiPo Battery with XT60 Connector
- Electric propeller - we recommend the APC 12x6 Thin Electric Propeller - Black
- 4 Cell compatible battery charger - select a minimum 4 cell (4S) charger from our Charger Collection
Gas Requires:
- 2-stroke engine - we recommend the NGH GT9 Pro 9cc Two-Stroke Engine
- 2-blade gas propeller - we recommend the APC 12x6 Gas Propeller
- Silicone fuel tube
Nexa ARF models are constructed out of balsa wood and plywood. These are not foam models. The assembly of balsa wood ARF aircraft requires basic model building skills including the installation of servos, ESC, and motor (or gas engine).
Product Specifications:
Model Scale |
1/7.5 |
Wingspan |
1580mm / 62.2in |
Length |
1020mm /40.2in |
Weight |
2600g / 91.71oz |
CG (Center of Gravity) |
89mm from the leading edge of the wing's root |
Power System |
770Kv or equivalent brushless outrunner motor for electric or 2-stroke for gas (required) |
Electronic Speed Control |
65A (required) |
Propeller / EDF |
12x6 2-blade for electric or 12x6 2-blade for gas (required) |
Servos |
45g standard servos: left aileron, right aileron, elevator, rudder - HRC6005-017 |
Landing Gear |
Fixed (included) |
Required Battery |
4 Cell 14.8V 4500 - 5000mAh LiPo batteries (required) |
Required Radio |
5+ Channel (required) |
Ailerons |
Yes |
Elevator |
Yes |
Rudder |
Yes |
Flaps |
No |
Lights |
No |
Hinge Type |
CA fabric |
Material |
Balsa and light plywood |
Skill Level |
Intermediate |
Build Time |
4+ Hours |
Recommended Environment |
Outdoors |
