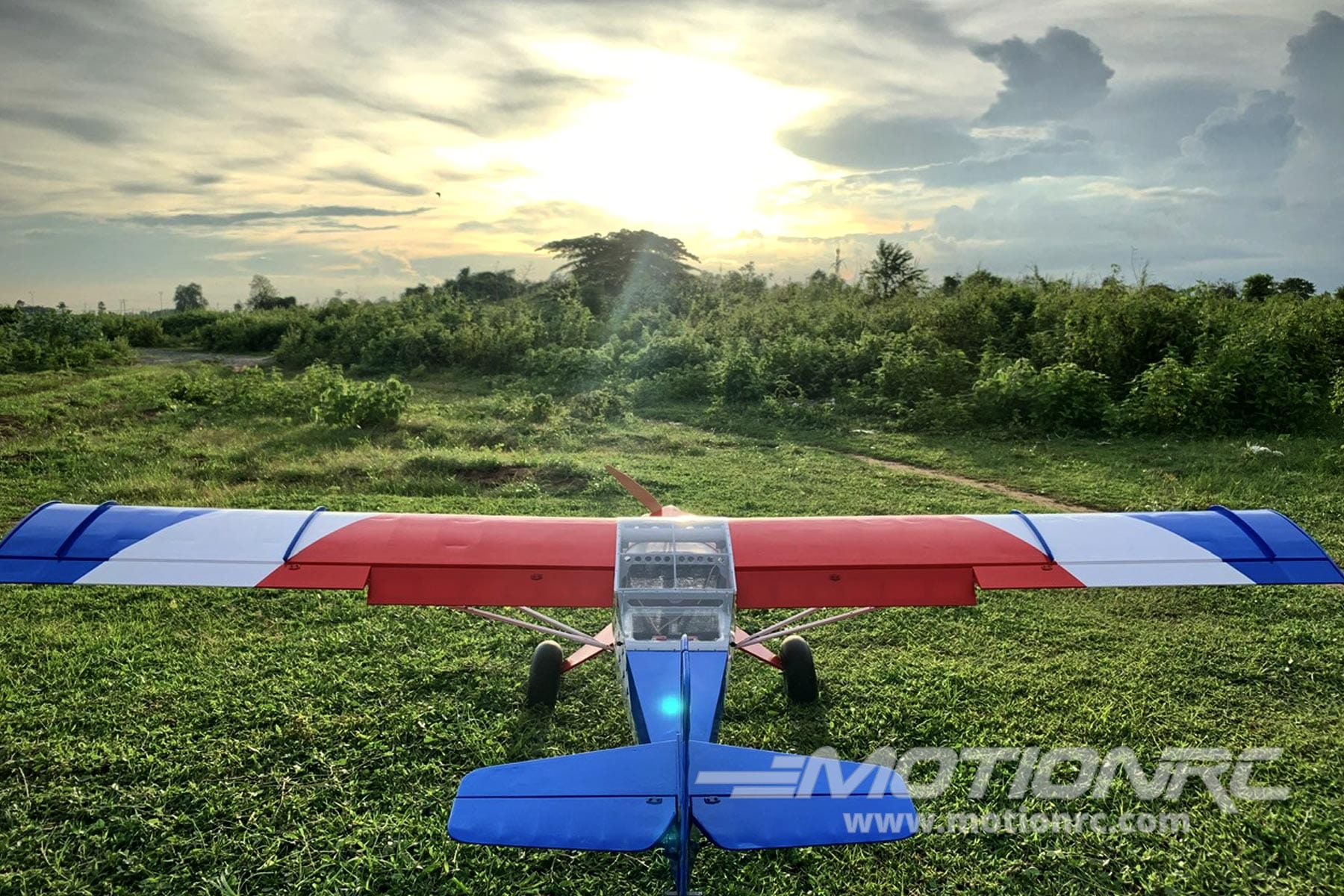

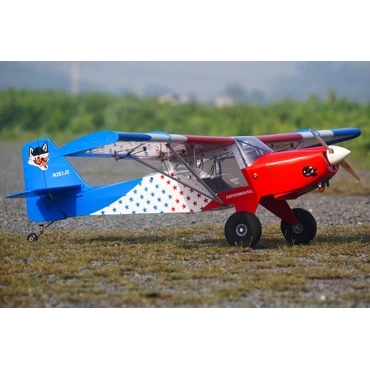

Skyfox Sti 2540mm (100") Wingspan - ARF from Nexa - NXA1067-001
Experience the thrill of flying with the Nexa Skyfox 2550mm ARF, a scale model that mimics modern kit-built full-size airplanes. With a commanding 100” wingspan, this model offers an impressive presence both in the air and on the ground. The Nexa Skyfox is expertly crafted with precision laser-cut balsa and light ply, providing a strong yet lightweight airframe for enhanced performance.
This versatile ARF model comes covered and painted straight from the factory, so it's ready for your final assembly and personalization. Whether you prefer electric, gas, or glow engines, the Skyfox offers flexible power options to suit your flying style.
Whether you're an experienced pilot or just stepping up to larger scale models, the Nexa Skyfox combines impressive scale realism, with a highly pre-fabricated model making it a standout addition to your hangar.
Visit the Official Nexa Skyfox 2540mm ARF Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
|
Impressive Size Large, 100” (2.5m) wingspan offers a commanding presence that is sure to impress. |
|
Factory covered and Painted Flawless factory covering, and precision painting ensure a show-stopping finish, ready to impress right out of the box. |
|
Functioning Cockpit Door Functioning cockpit door offers a unique, scale way to access the interior of the model. |
|
Sturdy Landing Gear Aluminum landing gear provides added durability while keeping weight low. |
Features:
- Large 100” (2.5m) wing span for a commanding presence in the air
- Model supports electric, gas, or glow engines, giving you flexibility to power it the way you prefer
- Functioning cockpit door for easy interior access
- Sturdy aluminum landing gear for reliable takeoffs and landings
- Factory-covered for a professional finish
- Factory-painted fiberglass cowling for enhanced appearance
- Precision laser-cut construction – combines strength with reduced weight for enhanced performance
Includes:
- Nexa Skyfox Sti 2540mm (100") Wingspan - ARF
- Instruction Manual
- Complete hardware package including pushrods
- Main Wheels and Landing Gear
- Tail wheel assembly
Requires (Electric):
- 8 Channel radio - select a minimum 8 channel radio from our Radio Collection
- 8 Channel receiver - select a minimum 8 channel receiver from our Receiver Collection
- Brushless outrunner motor - we recommend the Admiral GP35 C6332-175Kv Brushless Motor
- 80 Amp brushless ESC - we recommend the Castle Creations Phoenix Edge High Voltage 80A ESC
- 7x 45g standard servos - we recommend Hitec D-645MW High Voltage High Torque Digital Metal Gear Servo Airplane Multi-Pack (5 Servos)
- 2x 6 Cell 22.2V 5000mAh LiPo Batteries (8S setup) - we recommend the Admiral 5000mAh 6S 22.2V 50C LiPo Battery with EC5 Connector Multi-Pack (2 Batteries)
- 2 to 1 series adapter for battery plug - we recommend the BenchCraft EC5 2 to 1 Series Adapter
- Electric propeller - we recommend the APC 20x12 Thin Electric Propeller
- 4 Cell compatible battery charger - select a minimum 4 cell (4S) charger from our Charger Collection
Requires (Gas):
- 17cc 2 stroke engine - we recommend the NGH GT17-Pro 17cc Two-Stroke Engine
- 7x 45g standard servos - we recommend Hitec D-645MW High Voltage High Torque Digital Metal Gear Servo Airplane Multi-Pack (5 Servos)
- Receiver battery: 2S 2000mAh LiFe Battery - we recommend Admiral 2100mAh 2S 6.6V LiFe Battery with XT60/JR/Futaba Connectors
- Gas Propeller: 15x8 - we recommend Admiral 15x8 Gas Series Wood Propeller
Nexa ARF models are constructed out of balsa wood and plywood. These are not foam models. The assembly of balsa wood ARF aircraft requires basic model building skills including the installation of servos, ESC, and motor (or gas engine).
Product Specifications:
|
Model Scale |
1/4 |
|
Wingspan |
2550mm / 100.4in |
|
Length |
1420mm /55.9in |
|
Empty Weight |
6.8-7kg / (15-15.5lbs) |
|
CG (Center of Gravity) |
82-86mm (3.2-3.4") from the leading edge of the wing's root |
|
Power System (Electric) |
175Kv or equivalent brushless outrunner motor (required) |
|
Power System (Gas) |
20cc (required) |
|
Power System (Glow) |
.90 cu in 2-stroke or 1.20 cu in. 4-stroke (required) |
|
Electronic Speed Control |
80A Brushless with 8A SBEC (required) |
|
Propeller (Electric) |
20x12 2-blade (required) |
|
Propeller (Gas) |
16x6 Gas Propeller (required) |
|
Propeller (Glow) |
See your engine manufacturer’s manual (required) |
|
Servos |
8x 45g standard servos: left aileron, right aileron, left elevator, right elevator, rudder - HRC6005-012 |
|
Landing Gear |
Aluminum main landing gear, tail wheel assembly (included) |
|
Required Battery (Electric) |
2x 6S 22.2V 5000mAh LiPo (8S setup required) |
|
Required Battery (Gas) |
2x 2S 2100mAh LiFE (required) |
|
Required Battery (Glow) |
2S 2100mAh LiFE (required) |
|
Required Radio |
8 Channel (required) |
|
Ailerons |
Yes |
|
Elevator |
Yes |
|
Rudder |
Yes |
|
Flaps |
Yes |
|
Lights |
No |
|
Hinge Type |
CA |
|
Material |
Balsa and plywood construction |
|
Skill Level |
Intermediate |
|
Build Time |
6+ Hours |
|
Recommended Environment |
Outdoors |
