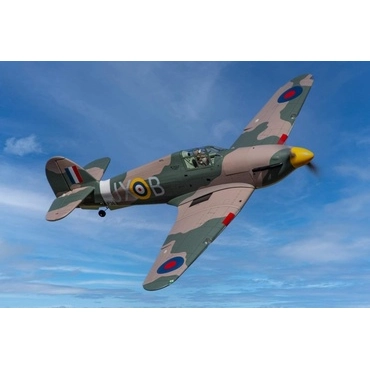

Hawker Hurricane 1610mm (63.3") Wingspan - ARF from Nexa - NXA1023-001
The Hawker Hurricane is a British single-seat fighter aircraft of the 1930s–40s that was designed and predominantly built by Hawker Aircraft Ltd. for service with the Royal Air Force (RAF). It was overshadowed in the public consciousness by the Supermarine Spitfire's role during Battle of Britain in 1940, but the Hurricane inflicted 60 percent of the losses sustained by the Luftwaffe in the engagement, and fought in all the major theatres of the Second World War.
The Nexa Hawker Hurricane is a .60-size electric scale series warbird with a 1610mm wingspan, constructed primarily from balsa wood and fully covered. This ARF requires assembly and installation of your choice of servos and power system, and includes a two piece wing design with aluminum wing joiner, fiberglass cowling, painted pilot, flaps, a large battery hatch and pre-hinged and installed control surfaces.
Visit the Official Nexa Hawker Hurricane 1610mm ARF Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
 |
Fully Covered and Detailed The Nexa Hawker Hurricane comes fully covered in RAF Battle of Britain green and tan camo scheme with panel line, rivet and weathering detail. |
 |
Scale Details Throughout There is no shortage of scale details with this Hawker Hurricane including fiberglass cowling, painted pilot, and operational flaps. |
Features:
- Fully covered in RAF Battle of the British green and tan camo scheme with panel line, rivet and weathering detail
- Complete Balsa and lite-ply construction for rigidity and durability
- Two piece wing with balsa/plywood wing joiners for easy transport
- Functional split flaps for shorter takeoffs and slower landings
- Fiberglass cowling and painted pilot for added scale appeal
- All control surfaces come out of the box pre-hinged and installed for convenience
- Large battery hatch allows for your chosen electric or gas setup
Includes:
- Nexa Hawker Hurricane 1610mm (63.3") Wingspan - ARF
- Wheels, spinner, fiberglass cowling
- Hardware and decals
Requires:
- 7 Channel radio - select a minimum 7 channel radio from our Radio Collection
- 7 Channel receiver - select a minimum 7 channel receiver from our Receiver Collection
- Brushless outrunner motor - we recommend the Admiral GP10 5030-400Kv Brushless Motor
- 85 Amp brushless ESC - we recommend the ZTW Skyhawk 85A ESC with 8A SBEC
- 4x high torque standard servos for ailerons, elevator and rudder - we recommend Hitec D-645MW High Voltage High Torque Digital Metal Gear Servo Airplane Multi-Pack (4 Servos)
- 4x micro metal gear servos for flaps - we recommend TWO of the Hitec HS-82MG Metal Gear Micro Servo Airplane Multi-Pack (2 Servos)

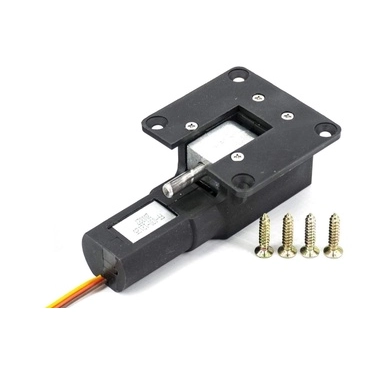

- Electric retracts - we recommend Nexa Main Retract (1 Pc)
- 6 Cell 22.2V 5000 - 6000 mAh LiPo Battery - we recommend the Admiral Pro 6000mAh 6S 22.2V 50C LiPo Battery with EC5 Connector
- 15x8 Electric propeller - we recommend the APC 15x8 Thin Electric Propeller
- 6 Cell compatible battery charger - select a minimum 6 cell (6S) charger from our Charger Collection
Gas Requires:
- 2 stroke engine - we recommend the NGH GT17 17cc Two-Stroke Engine
- 2-blade gas propeller - we recomment the APC 15x8 Gas Propeller
Nexa ARF models are constructed out of balsa wood and plywood. These are not foam models. The assembly of balsa wood ARF aircraft requires basic model building skills including the installation of servos, ESC, and motor (or gas engine).
Product Specifications:
Model Scale |
1/7.5 |
Wingspan |
1610mm / 63.3in |
Length |
1290mm / 50.7in |
Weight |
4600g / 162.26oz |
CG (Center of Gravity) |
Refer to the manual |
Power System |
400Kv Brushless Outrunner Motor for electric or 2-stroke engine for gas (required) |
Electronic Speed Control |
85A (required) |
Propeller / EDF |
15x8 2-blade for electric or gas (required) |
Servos |
|
Landing Gear |
Electric retracts with struts (required) |
Required Battery |
6 Cell 22.2V 5000 - 6000 mAh LiPo Battery (required) |
Required Radio |
7+ Channel (required) |
Ailerons |
Yes |
Elevator |
Yes |
Rudder |
Yes |
Flaps |
Yes |
Lights |
No |
Hinge Type |
Nylon |
Material |
Balsa and light plywood |
Skill Level |
Intermediate |
Build Time |
6+ Hours |
Recommended Environment |
Outdoors |
