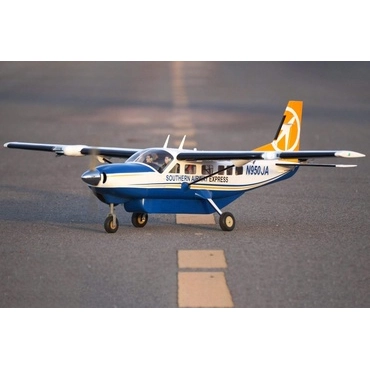

CE-208 Airliner Express 1700mm (67") Wingspan - ARF from Nexa - NXA1024-001
The Nexa CE-208 is a electric or gas option light passenger/transport cargo plane with a 1700mm wingspan, constructed primarily from balsa wood and covered with a fuel-resistant covering. This ARF requires assembly and installation of your choice of servos and power system, and includes fully functional flaps, painted pilots, detailed cockpit and other scale details. The large battery hatch affords ample room for either electric or gas setups. Impress at your flying field with this scale stunner!
Visit the Official Nexa CE-208 1700mm ARF Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
 |
Fully Covered and Detailed The Nexa CE-208 comes fully covered including simulated panel lines and rivets. |
 |
Scale Details Throughout There is no shortage of scale details with this CE-208 including functional flaps, painted pilots and detailed cockpit. |
 |
Fiberglass Cowling The cowl is made of fiberglass for both looks and durability. |
 |
Detailed Cockpit To add to the array of scale detail, the Nexa CE-208 features a detailed cockpit complete with two painted pilots to finish out the scale appeal. |
Features:
- Complete Balsa and lite-ply construction for rigidity and durability
- Covered from tip to tail in scale details including functional flaps, printed simulated panel lines and rivets
- Fiberglass cowling for strength and durability
- The hand-painted pilots are housed in a detailed cockpit
- All control surfaces come out of the box pre-hinged and installed for convenience
- Large battery hatch allows for your chosen electric or gas setup
Includes:
- Nexa CE-208 Airliner Express 1700mm (67") Wingspan - ARF
- Wheels and aluminum landing gear
- Fuel tank, hardware and decals
- spinner
Requires:
- 6 Channel radio - select a minimum 6 channel radio from our Radio Collection
- 6 Channel receiver - select a minimum 6 channel receiver from our Receiver Collection
- 400Kv or equivalent brushless outrunner motor - we recommend the Admiral GP10 5030-400Kv Brushless Motor

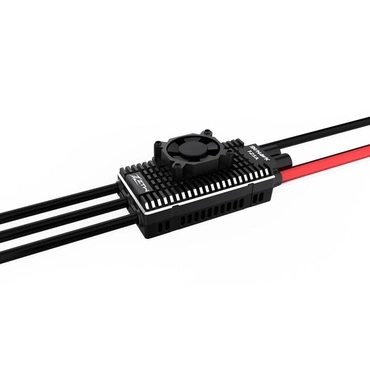

- 120 Amp brushless ESC - we recommend the ZTW Skyhawk 125A ESC with 10A SBEC
- 4x standard servos for ailerons and flaps - we recommend Hitec HS-85BB High Torque Micro Servo Airplane Multi-Pack (4 Servos)
- 2x standard servos for rudder and elevator - we recommend Hitec HS-485HB Deluxe Ball Bearing Karbonite Gear Standard Servo Airplane Multi-Pack (2 Servos)
- 6 Cell 22.2V 4500 - 5000mAh LiPo Battery - we recommend the Admiral 5000mAh 6S 22.2V 50C LiPo Battery with EC5 Connector
- Standard 13x7 2-blade electric propeller - we recommend the APC 13x8 Thin Electric Propeller - Black
- 6 Cell compatible battery charger - select a minimum 6 cell (6S) charger from our Charger Collection
Gas Requires:
- .46 - .70 (7.45cc - 11.5cc) gas engine
- Standard 12x6 2-blade gas propeller
Nexa ARF models are constructed out of balsa wood and plywood. These are not foam models. The assembly of balsa wood ARF aircraft requires basic model building skills including the installation of servos, ESC, and motor (or gas engine).
Product Specifications:
Model Scale |
1/9 |
Wingspan |
1700mm / 66.9in |
Length |
1175mm / 46.2in |
Empty Weight |
3200g / 112.87oz |
CG (Center of Gravity) |
65-68mm from the leading edge of the wing's root |
Power System |
400Kv or equivalent brushless outrunner motor for electric or .46 - .70 (7.45cc - 11.5cc) for gas (required) |
Electronic Speed Control |
60-65A (required) |
Propeller / EDF |
13x7 2-blade for electric or 12x6 2-blade for gas (required) |
Servos |
|
Landing Gear |
Aluminum gear (included) |
Required Battery |
6 Cell 22.2V 4500 - 5000mAh LiPo Battery (required) |
Required Radio |
6+ Channel (required) |
Ailerons |
Yes |
Elevator |
Yes |
Rudder |
Yes |
Flaps |
Yes |
Lights |
No |
Hinge Type |
CA fabric |
Material |
Balsa and light plywood |
Skill Level |
Intermediate |
Build Time |
6+ Hours |
Recommended Environment |
Outdoors |
