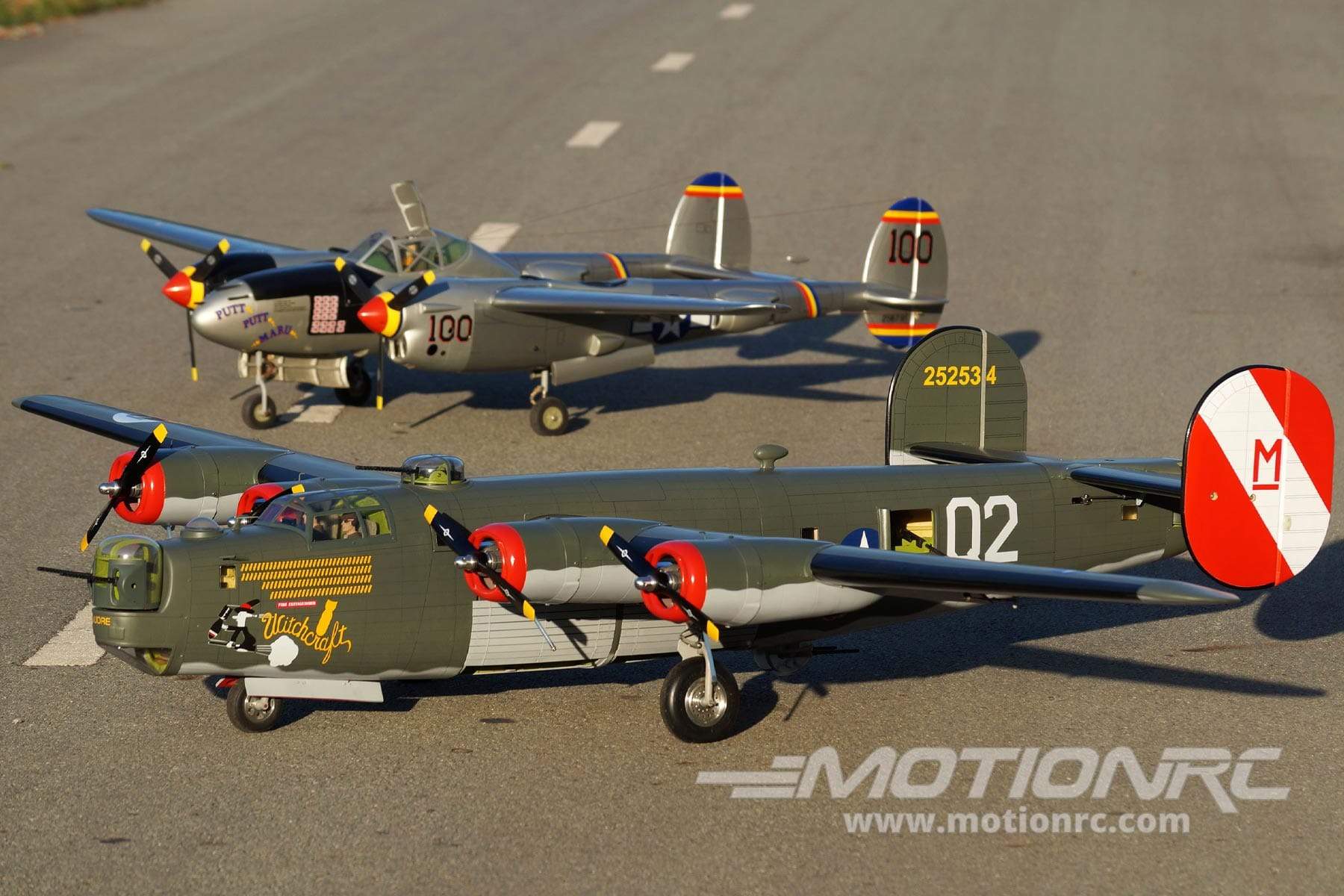

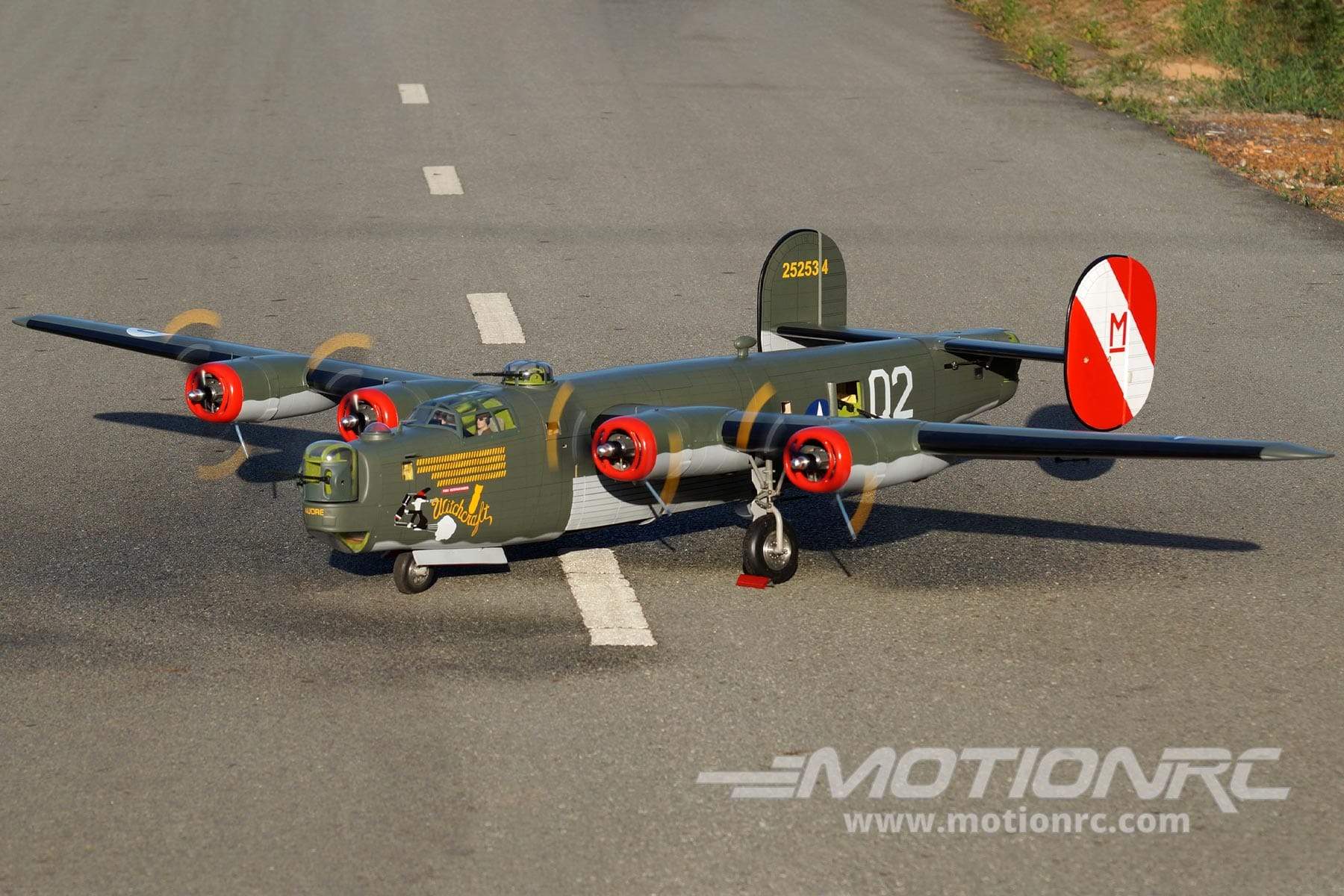

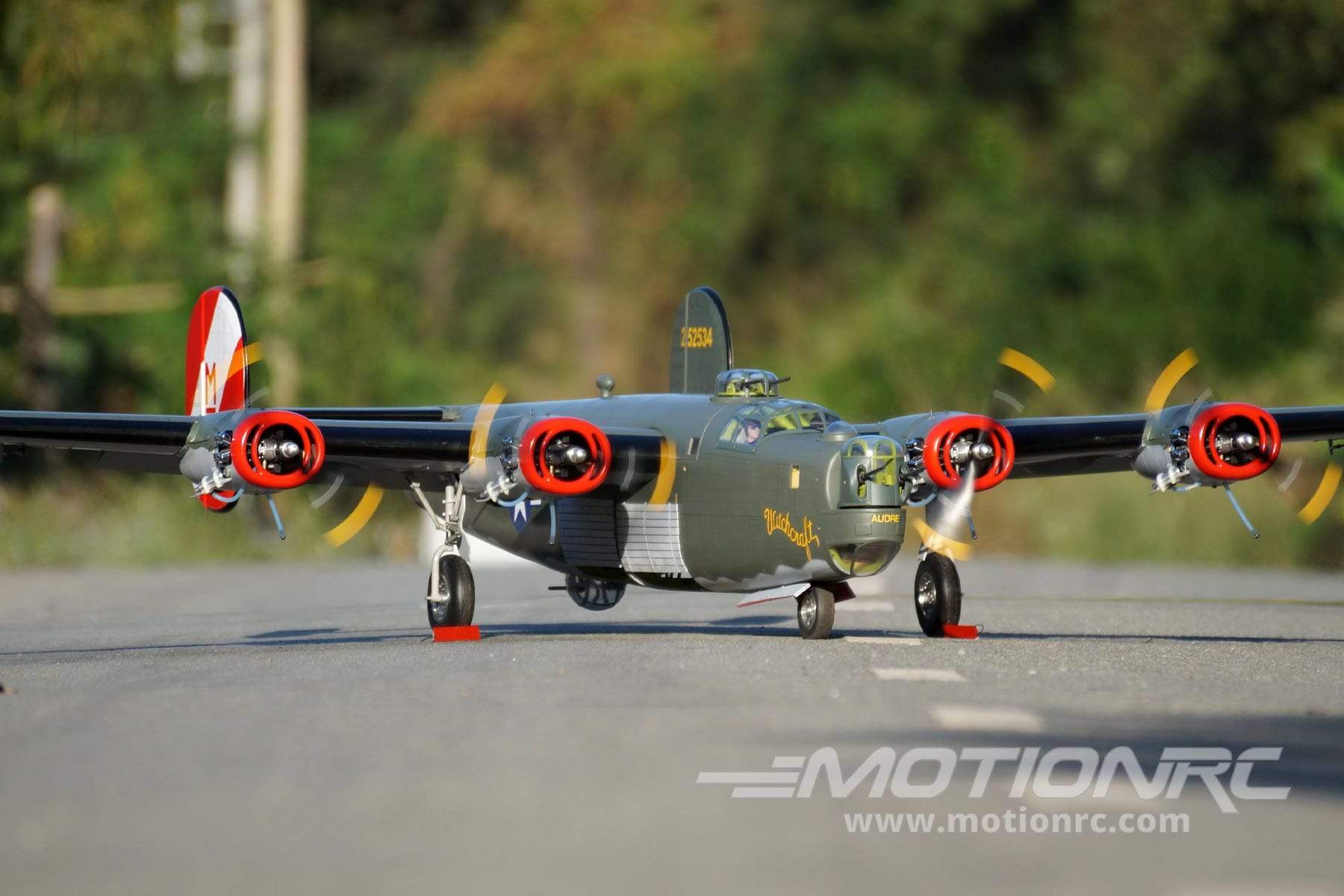

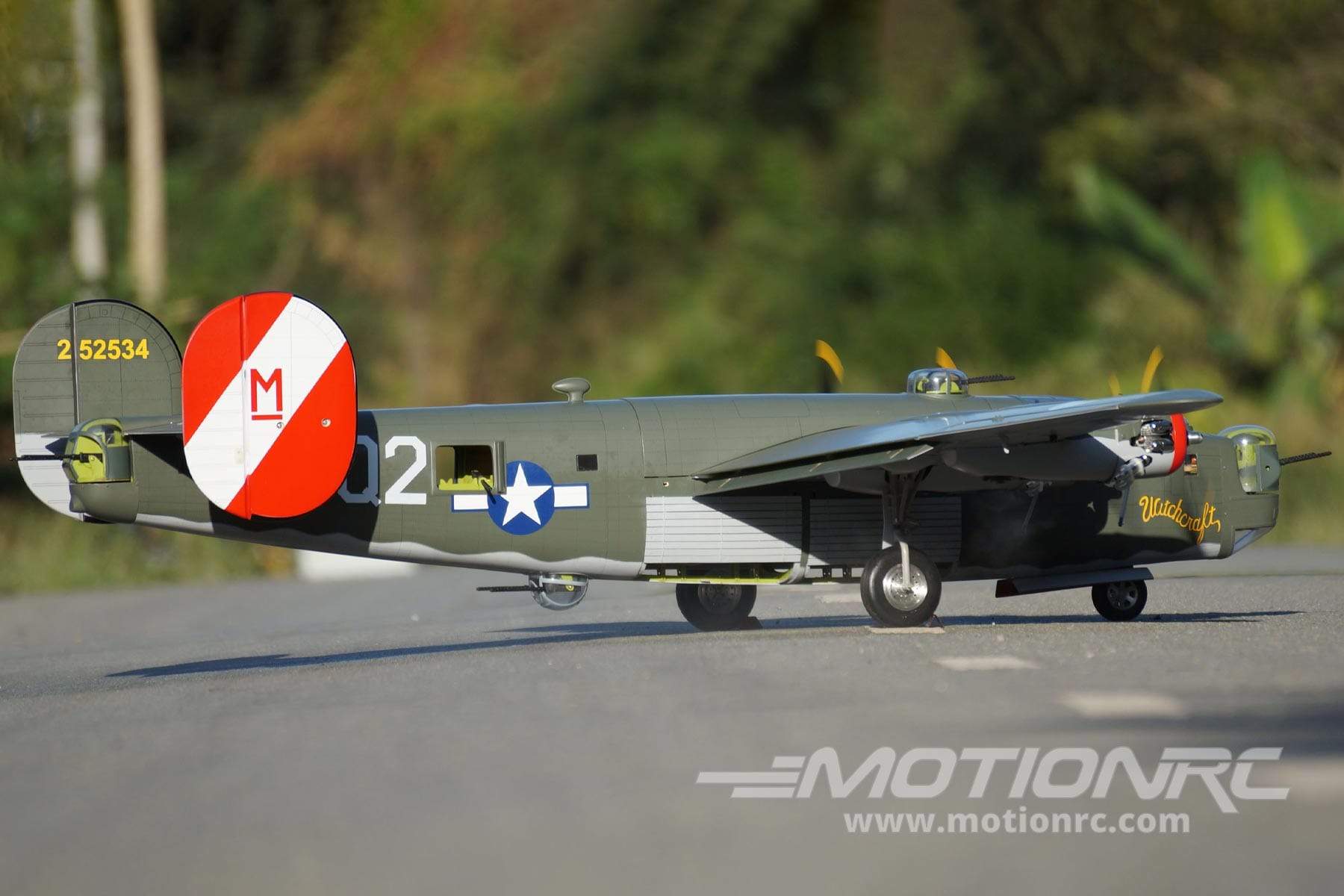

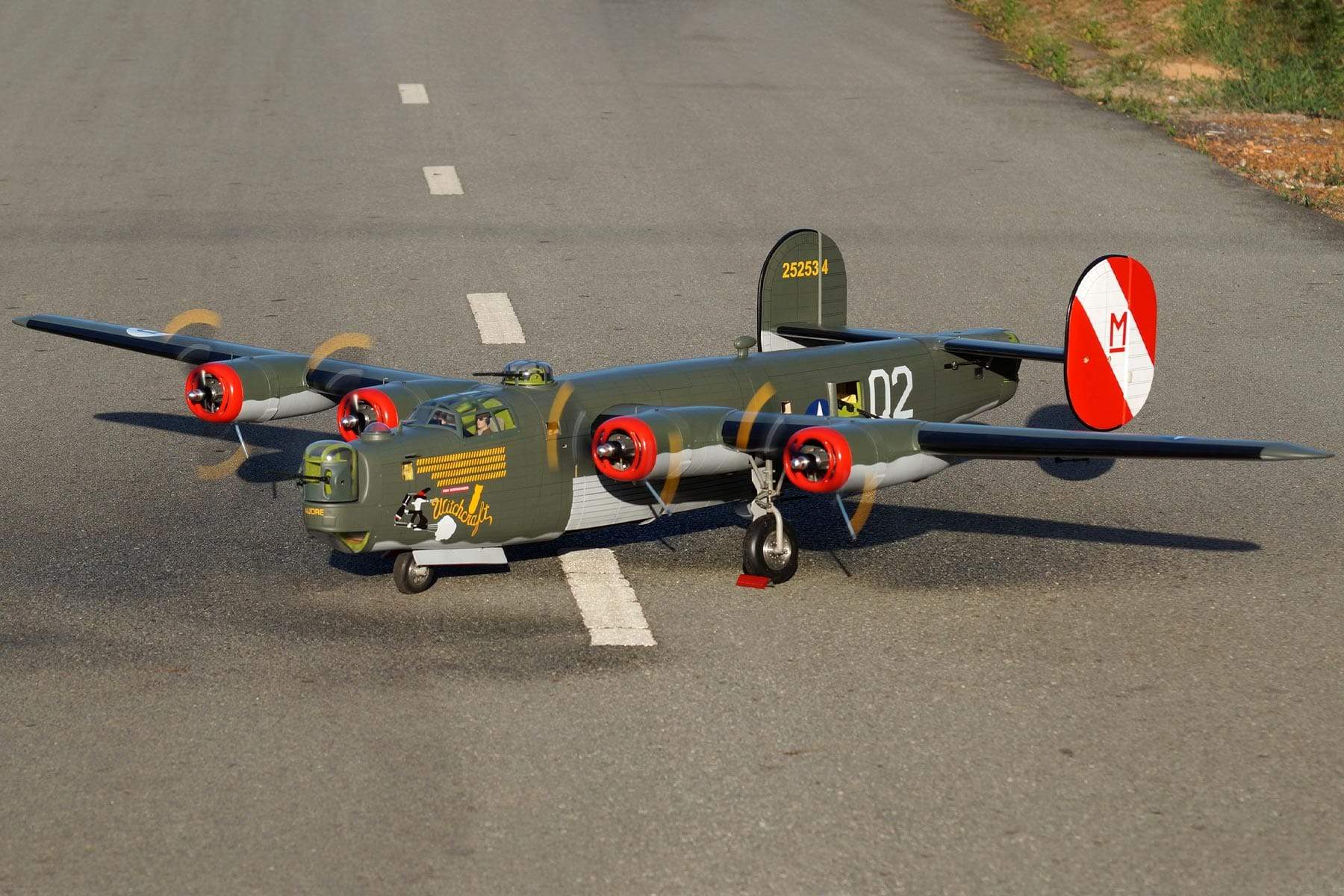

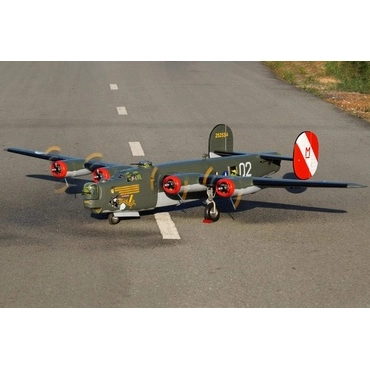

B-24 Liberator Olive Drab 2800mm (110.2") Wingspan - ARF from Nexa - NXA1036-001
The Consolidated B-24 Liberator is an American heavy bomber, designed by Consolidated Aircraft of San Diego, California. At its inception, the B-24 was a modern design featuring a highly efficient shoulder-mounted, high aspect ratio Davis wing. The wing gave the Liberator a high cruise speed, long range and the ability to carry a heavy bomb load. Early RAF Liberators were the first aircraft to cross the Atlantic Ocean as a matter of routine. In comparison with its contemporaries, the B-24 was relatively difficult to fly and had poor low-speed performance; it also had a lower ceiling and was less robust than the Boeing B-17 Flying Fortress. While aircrews tended to prefer the B-17, General Staff favored the B-24 and procured it in huge numbers for a wide variety of roles. At approximately 18,500 units – including 8,685 manufactured by Ford Motor Company – it holds records as the world's most produced bomber, heavy bomber, multi-engine aircraft, and American military aircraft in history.
The Nexa B-24 Liberator is a .40 size electric or gas option scale series warbird with a 2800mm wingspan, constructed primarily from balsa wood and covered with a fuel-resistant covering. This ARF requires assembly and installation of your choice of servos and power system, and includes fully functional fowler flaps, painted pilots, machine guns, dummy bombs and other scale details. The large battery hatch affords ample room for either electric or gas setups. To complete the scale appeal of this B-24, you can purchase the complete set of retracts and scale struts here. Impress at your flying field with this iconic stunner!
Visit the Official Nexa B-24 Liberator 2800mm ARF Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
 |
Fully Covered and Detailed The Nexa B-24 Liberator comes fully covered including simulated panel lines, rivets, nomenclature and weathering detail. |
 |

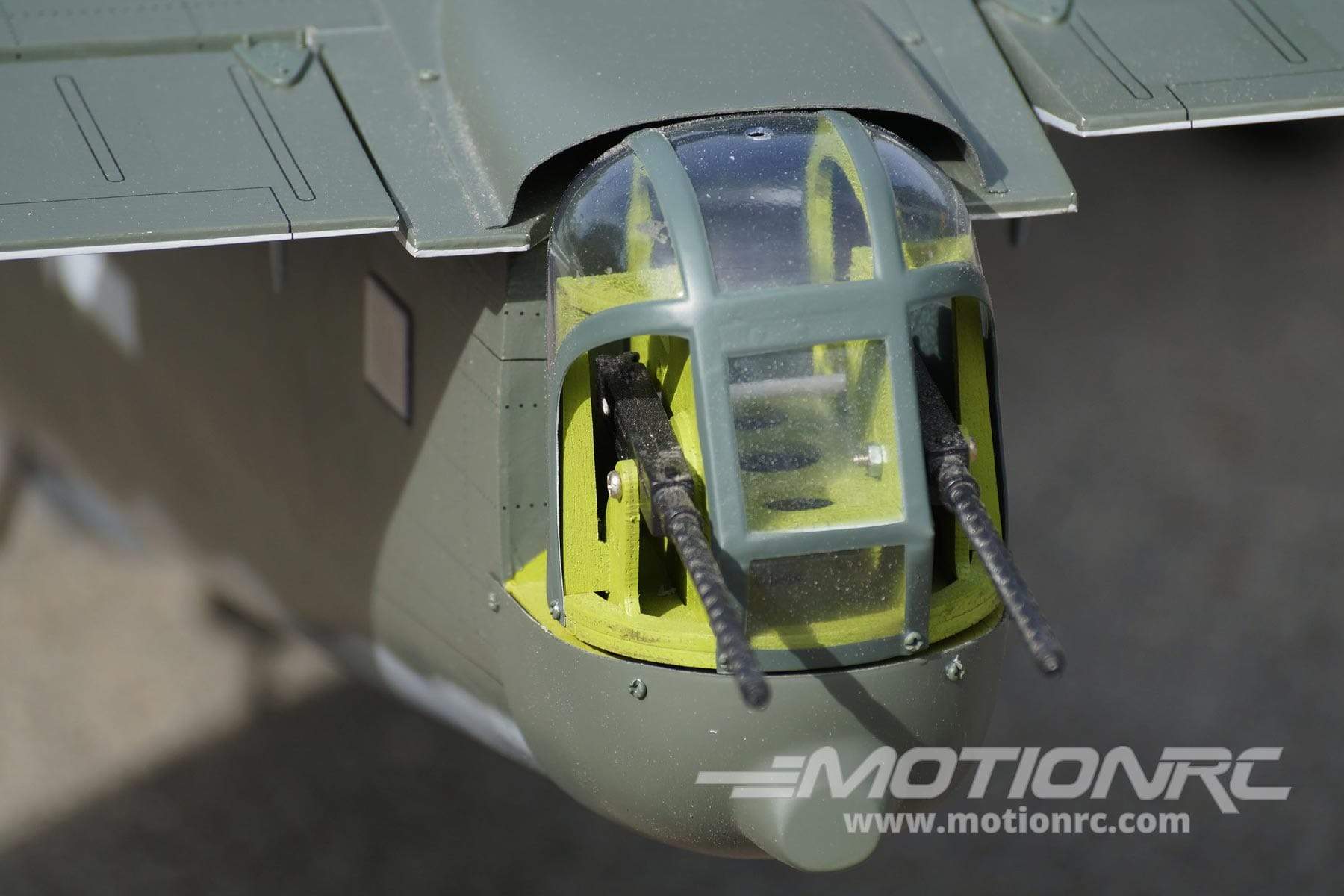

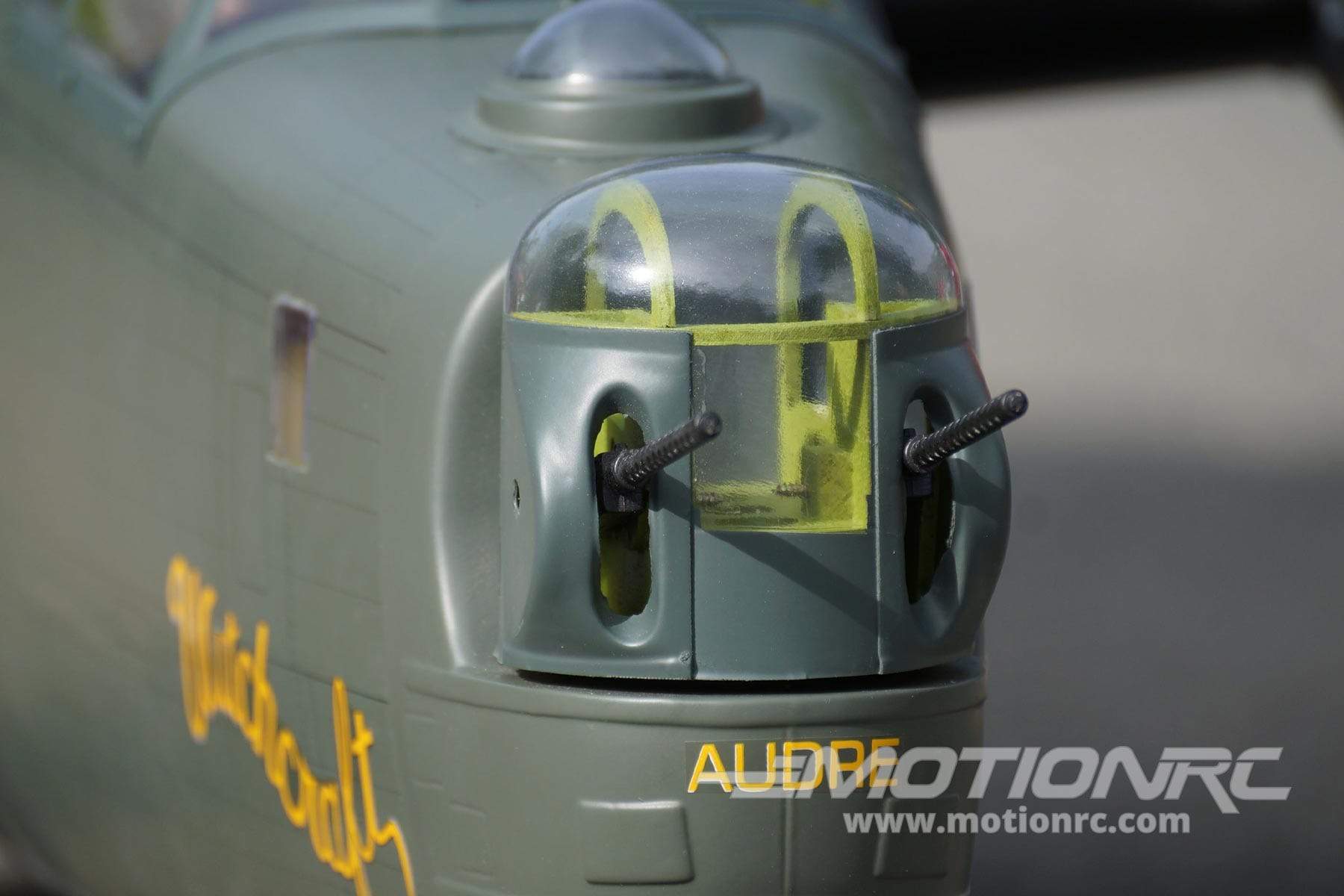

Scale Details Throughout There is no shortage of scale details with this B-24 including functional fowler flaps, antenna, machine guns, painted pilots, bomb bay and dummy bombs, electric retracts and metal main struts. |
 |

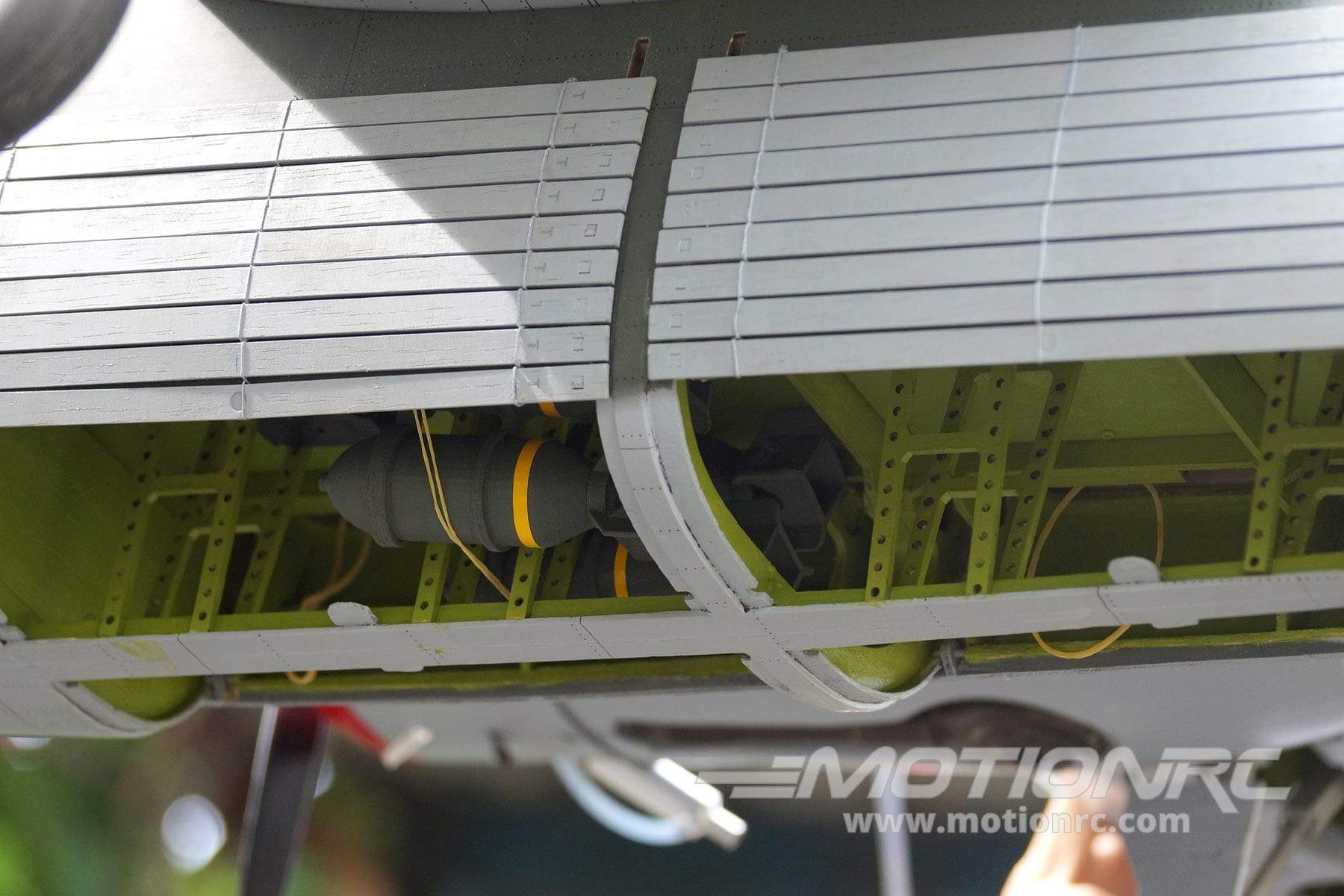

Bomb Bay Functionality This B-24 comes with a bomb bay and dummy bombs that you can make fully functional. |
 |

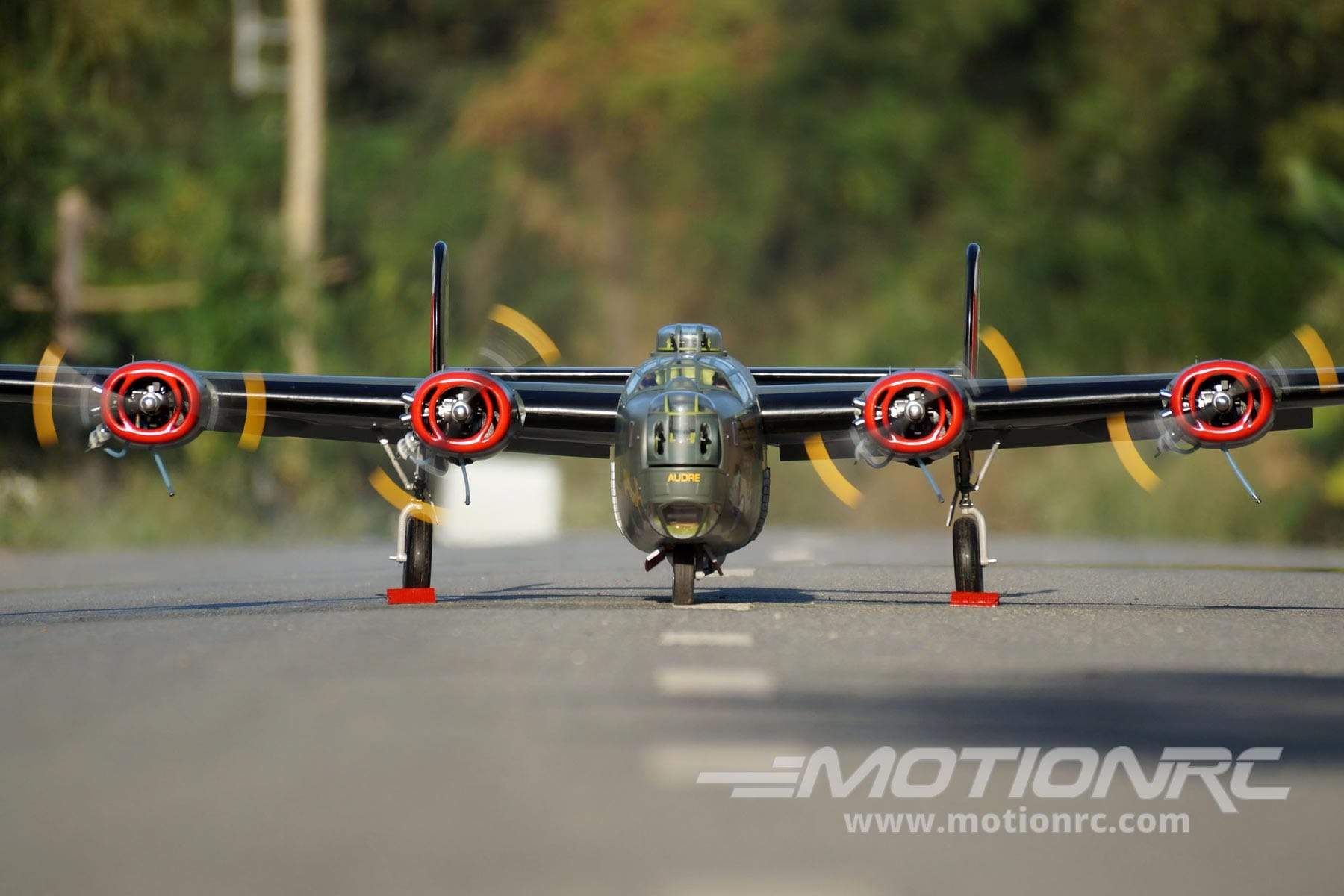

Impressive Size To add to the array of scale detail, the Nexa B-24 has an impressive 2800mm (110") wingspan for exceptional static and air presence. |
Features:
- Complete Balsa and lite-ply construction for rigidity and durability
- Covered from tip to tail in scale details including weathering, functional fowler flaps, printed simulated panel lines and rivets

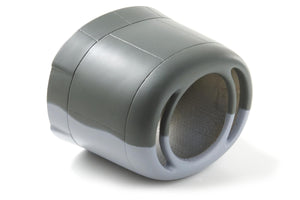

- Fiberglass cowlings for strength and durability

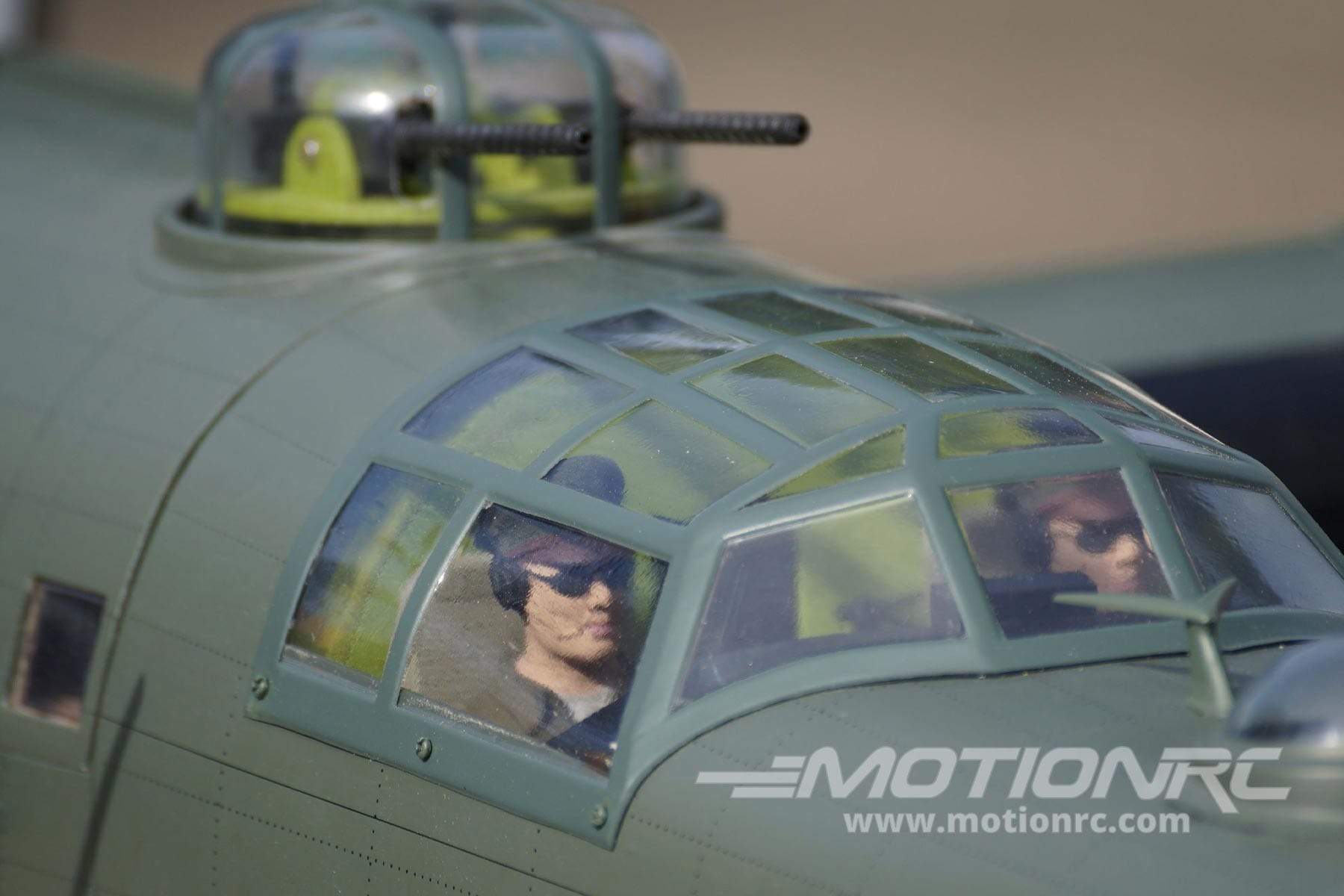

- The hand-painted pilots are ready for your added cockpit details
- All control surfaces come out of the box pre-hinged and installed for convenience
- Dummy bombs, bomb bay, antenna, guns and more complete the fantastic scale appeal
- Large battery hatch allows for your chosen electric or gas setup
Includes:
- Nexa B-24 Liberator Olive Drab 2800mm (110.2") Wingspan - ARF

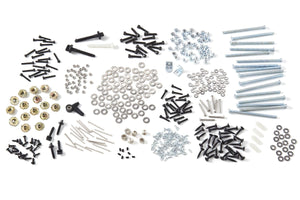

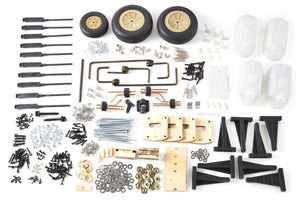

- Fuel tank, hardware and servo tray

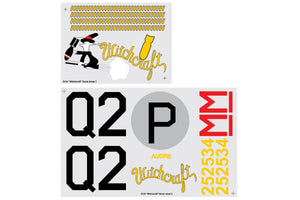

- Spinner, decal set, engine mount, wheels
- Fiberglass cowl
Requires:
- 9 Channel radio - select a minimum 9 channel radio from our Radio Collection
- 9 Channel receiver - select a minimum 9 channel receiver from our Receiver Collection
- 4x Brushless outrunner motors - we recommend TWO of the Admiral GP5 4220-770Kv Brushless Motor Multi-Pack (2 Motors)

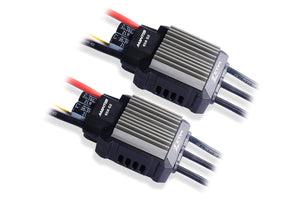

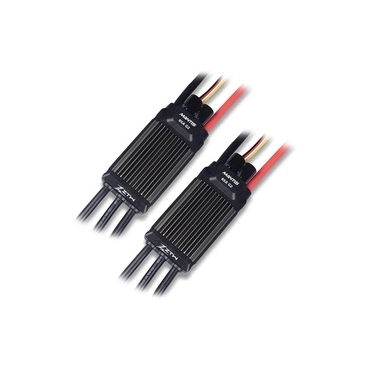

- 4x 60-70 Amp brushless ESCs - we recommend FOUR of the ZTW Mantis G2 85A ESC with 8A SBEC
- 5x standard servos for ailerons, elevator, and steering - we recommend FIVE Hitec HS-625MG Ball Bearing Metal Gear Standard Servo
- 4x standard servos for flaps and rudder - we recommend the Hitec HS-85BB High Torque Micro Servo Airplane Multi-Pack (4 Servos)

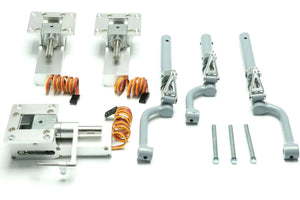

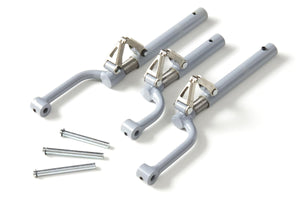

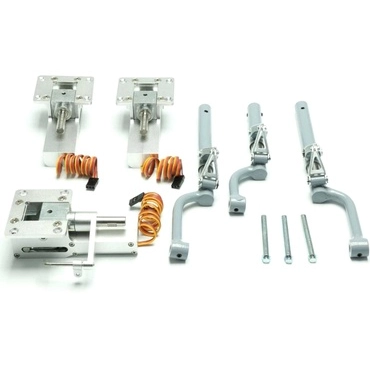

- Electronic retracts and struts - we recommend the Nexa 2800mm B-24 Liberator Full Metal E-Retracts with Struts

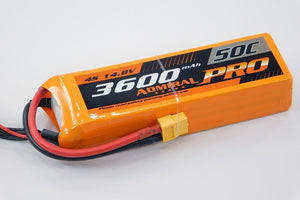

- FOUR 4 Cell 14.8V 3000 - 5000 mAh LiPo Batteries - we recommend FOUR of the Admiral 5000mAh 4S 14.8V 40C LiPo Battery with XT60 Connector
- EC5 Series adapter - we recommend TWO of the BenchCraft EC5 2 to 1 Series Adapter
- 4x standard 10x7 3-blade electric propellers - we recommend FOUR Master Airscrew 10x7 3-Blade Electric Propeller
- 4 Cell compatible battery charger - select a minimum 4 cell (4S) charger from our Charger Collection
Gas Requires:
- 4x 25-32/2 stroke or 40-52 4/stroke gas engines
- 4x standard 11x7 or 11x6 3-blade gas propellers
Nexa ARF models are constructed out of balsa wood and plywood. These are not foam models. The assembly of balsa wood ARF aircraft requires basic model building skills including the installation of servos, ESC, and motor (or gas engine).
Product Specifications:
Model Scale |
1/12 |
Wingspan |
2800mm / 110.2in |
Length |
1700mm / 66.9in |
Weight |
11000g / 388.01oz |
CG (Center of Gravity) |
Refer to owner's manual |
Power System |
4x 770Kv Brushless outrunner motors for electric or 4x 9cc 2 stroke gas (required) |
Electronic Speed Control |
4x 85A (required) |
Propeller / EDF |
4x 10x7 3-blade for electric or 4x 11x5 or 11x7 3-blade for gas (required) |
Servos |
45g metal gear standard: ailerons, elevator, steering |
Required Landing Gear |
Electric retractable tri gear (required) |
Required Battery |
FOUR 4 Cell 14.8V 3000 - 5000 mAh LiPo Batteries (required) |
Required Radio |
9+ Channel (required) |
Ailerons |
Yes |
Elevator |
Yes |
Rudder |
Yes |
Flaps |
Yes |
Lights |
No |
Hinge Type |
Nylon |
Material |
Balsa and light plywood |
Skill Level |
Intermediate |
Build Time |
6+ Hours |
Recommended Environment |
Outdoors |
