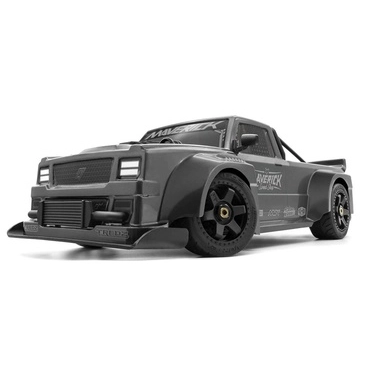

QuantumR Flux Grey 1/8 Scale 4WD Race Truck - RTR From Maverick - MVK150351
The all-new QuantumR continues to break new ground in terms of spec and performance. Based on the rugged Quantum+ chassis, this absolute speed demon has been optimized from the chassis up for superior speed run handling with a raft of features including newly designed shock towers, short aluminum shocks and new short suspension arms with 17mm hex hubs bolting on the new black MVK race truck wheels wrapped in Tredz traction hungry quality belted rubber Vortex tires.
All this equipment needs a rugged backbone to cope with the the brutal 4S demands and inevitable bumps and rolls along the way, so the HPI design team specified maximum HD parts through out, including full HD drivetrain, HD Front and Rear Turnbuckles and a foam bumper, all housed within the tough, yet flexible polycarbonate Muscle Truck body!
Visit the Official Maverick QuantumR Flux 4WD 1/8 Scale Race Truck RTR Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
Features:
- Plastic molded body detail parts with multiple engine options
- Pre-cut factory finished and decaled bodyshell
- 4S LiPo capable
- 4WD shaft drive
- Independent double wishbone suspension
- Oil filled adjustable aluminum coilover shocks
- Pillow ball front and rear suspension uprights
- Heavy duty front universal drive shafts
- Heavy duty diff cups, shock shafts, and turnbuckles
- Tough metal 4-gear differentials front and rear
- Center differential
- Dual point bell crank steering system with integrated servo saver
- Molded tub chassis with hex pattern reinforcement
- Enclosed receiver box protects from the elements
- 17mm aluminum hex hub
Includes:
- Maverick QuantumR Flux Grey 1/8 Scale 4WD Race Truck - RTR
- 2.4GHz radio set with waterproof receiver
- 3674 2250KV brushless motor with 5.0mm shaft
- 120A Waterproof ESC
- 15Kg Metal Gear Water-Resistant Servo
- Tredz tires - belted
- Complete set of ball bearings
Requires:
- 4x AA batteries for 2.4GHz radio transmitter - we recommend Admiral AA NiMH 2600mAh Rechargeable Batteries (Pack of 4)
- 2S to 4S (7.4V to 14.8V) LiPo Battery with T connector - we recommend the Admiral 5300mAh 2S 7.4V 60C Hard Case LiPo Battery with T Connector or Admiral 5300mAh 3S 11.1V 60C Hard Case LiPo Battery with T Connector or the Admiral 5300mAh 4S 14.8V 60C Hard Case LiPo Battery with T Connector
- 2 Cell to 4 Cell compatible battery charger - select a minimum 2 cell (2S) charger from our Charger Collection
Product Specifications:
Model Scale |
1/8 |
Length |
597mm / 23.5in |
Width |
276mm / 10.9in |
Height |
187mm / 7.4in |
Weight (No Battery) |
4600g / 162.3oz |
Wheelbase |
322mm / 12.7in |
Ground Clearance |
|
Body |
Polycarbonate |
Chassis |
Painted, Decals Applied, Trimmed |
Drivetrain |
4WD |
Wheel Size (Diameter x Width) |
|
Wheel Hex Size |
17mm |
Tire Tread |
On-road |
Bushing Material |
Plastic |
Suspension |
Independent |
Shock Type |
Oil Filled, Coil Over, Adjustable |
Transmission |
|
Gear Pitch |
|
Internal Gear Ratio |
|
Final Drive Ratio |
|
Pinion |
|
Spur Gear |
|
Differential |
Center Differential; Front and Rear metal 4-Gear Differentials |
Ball Bearings |
|
Brakes |
Electronic |
Electronic Speed Control |
120A Waterproof ESC |
Motor |
2250KV Brushless Motor |
Battery |
2S - 4S LiPo with Tconnector (required) |
Max Battery Dimensions (L x W x H) |
|
Servos |
Metal Gear Water-Resistant |
Radio |
2 Channel (included) |
Lights |
No |
Sound |
No |
Water Resistant |
Yes |
Skill Level |
Intermediate |
Assembly Time |
Less Than 1 Hour |
Recommended Environment |
Outdoors |
Q&A
Product questions & answers
NOTE: Questions submitted on this page are answered by customers who have previously purchased this item. If you have a support related question that requires immediate assistance, please visit our Help Center
Support
Product support
Product Manuals:
- MVK Quantum R Quick Start Guide
- MVK Quantum R Exploded View
- MVK Radio Instruction Manual
- MVK Brushless ESC Instruction Manual
