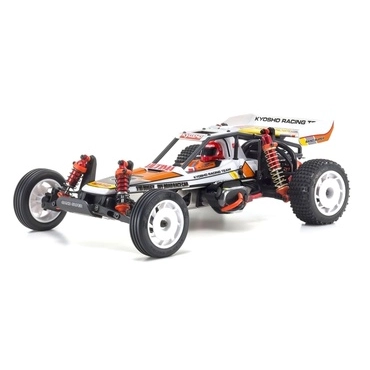

Kyosho Ultima 1/10 Scale 2WD Buggy - KIT

Ultima 1/10 Scale 2WD Buggy - KIT from Kyosho - KYO30625

Version Info: This buggy is a KIT, and as such will require electronics, paint and other equipment (see Requires below for details).

The impact of the ULTIMA’s dominantTQ & 1-2-3 finish in the 2WD class at the 2nd Electric Off Road World Championship in England in 1987 was felt across the RC car scene. Now Kyosho’s famous ULTIMA turns back the clock with its return as the 8th model in the Kyosho Vintage Series!

First released in 1986, the 2WD ULTIMA channeled racing tech from the OPTIMA into an electric racing buggy whirlwind that swept across the world. Consistent with the Vintage Series, the 2019 ULTIMA version has evolved in design and build to satisfy performance standards for modern RC racing circuits and power sources. For example, the monocoque frame is made from aircraft grade A60601T6 aluminum alloy and multi-pin block pattern rear tires deliver optimal performance on modern off-road tracks. Full ball bearing specs minimize drive loss and combine with high-durability sintered alloy metal gears, slipper clutch and motor guard to protect the drive system while crash-resistant resin rear wing is also included.

Relive the nostalgia of the ULTIMA’s glory with the 2019 version that has evolved into a modern-day racing machine that lets you drive like a world champion with Motion RC's world-renowned customer service and technical support. Drive on!

  Visit the Kyosho Ultima 1/10 Scale 2WD Buggy Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.

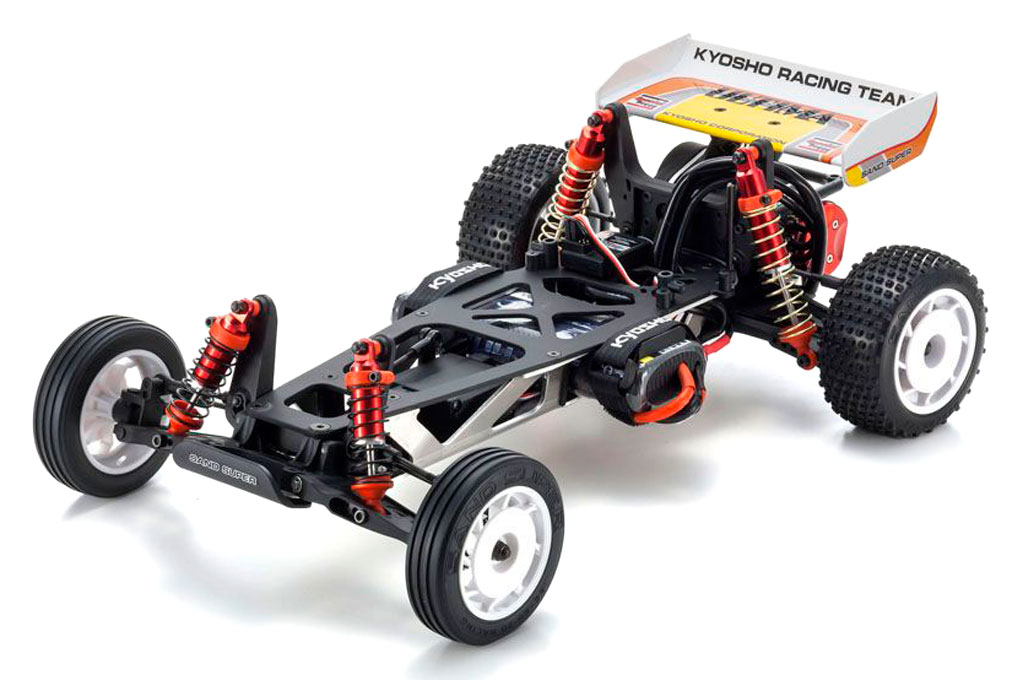

Monocoque Frame A monocoque frame made from tempered A6061T6 pressed clear anodized aluminum alloy used for aircraft manufacture combines with a glass reinforced resin upper deck to deliver light weight and durability for hard driving. The battery stay is compatible with all battery types and uses a hook & loop fastener (includes battery strap printed with KYOSHO logo) for easy battery mounting.

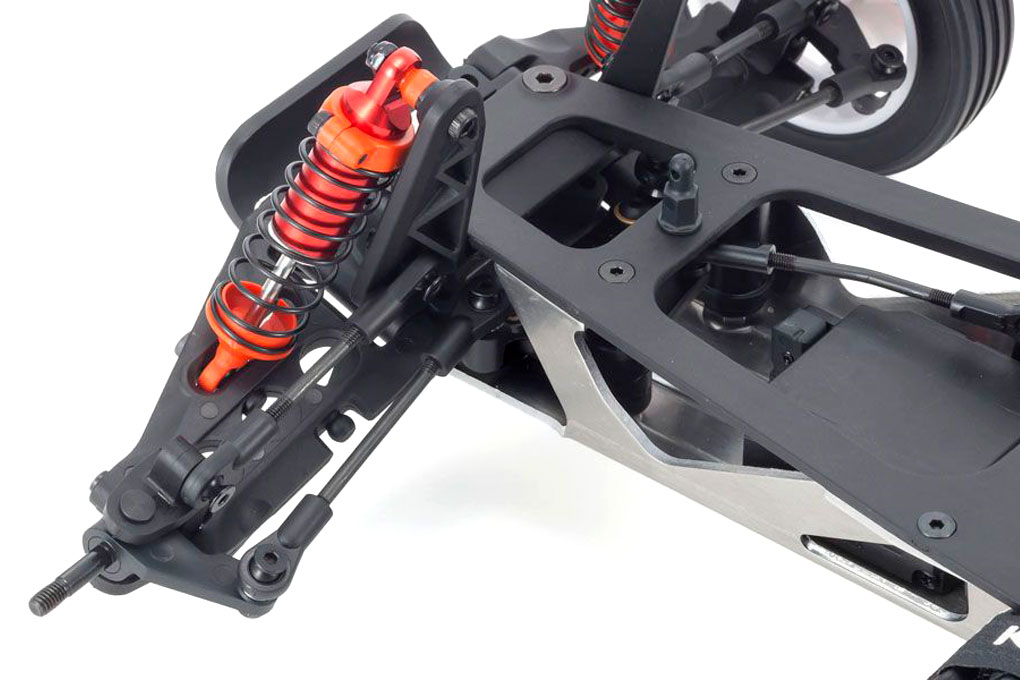

Excellent Stability Front and rear double wishbone suspension adopts the proven OPTIMA design. Similar front-rear geometry ensures handling stability at all speed ranges. Impact-resistant nylon lower arm combines with metal rod upper arm to enable camber adjustment.

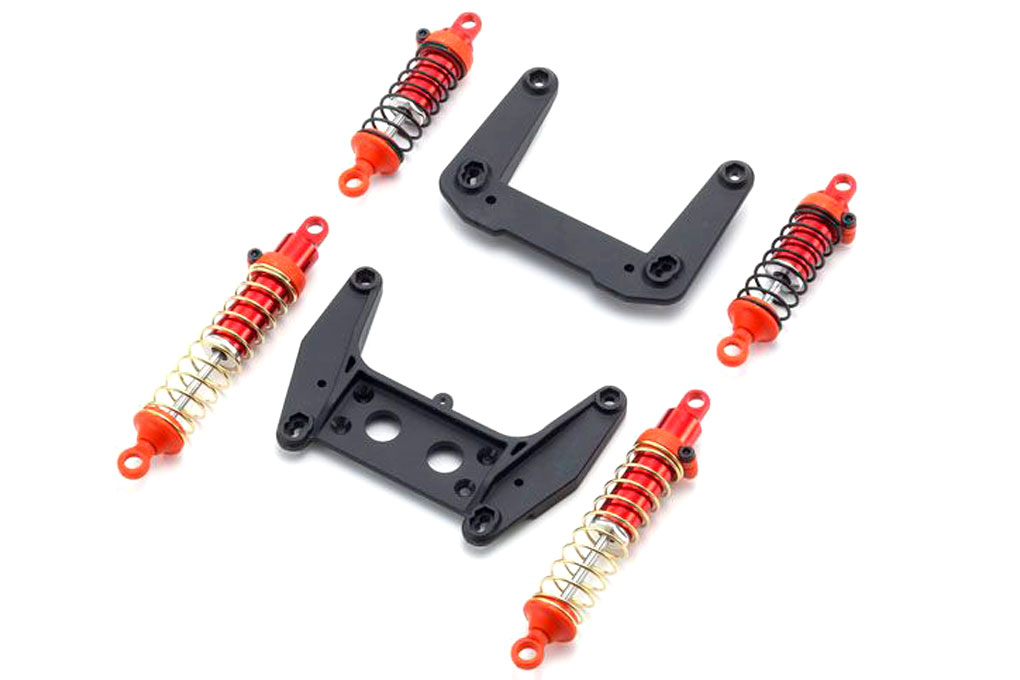

Oil-Filled Shocks The same large capacity 12mm diameter oil shocks as the OPTIMA deliver superior running stability over uneven surfaces. Long type nylon resin molded shock tower enables tuning for modern RC racing circuits.

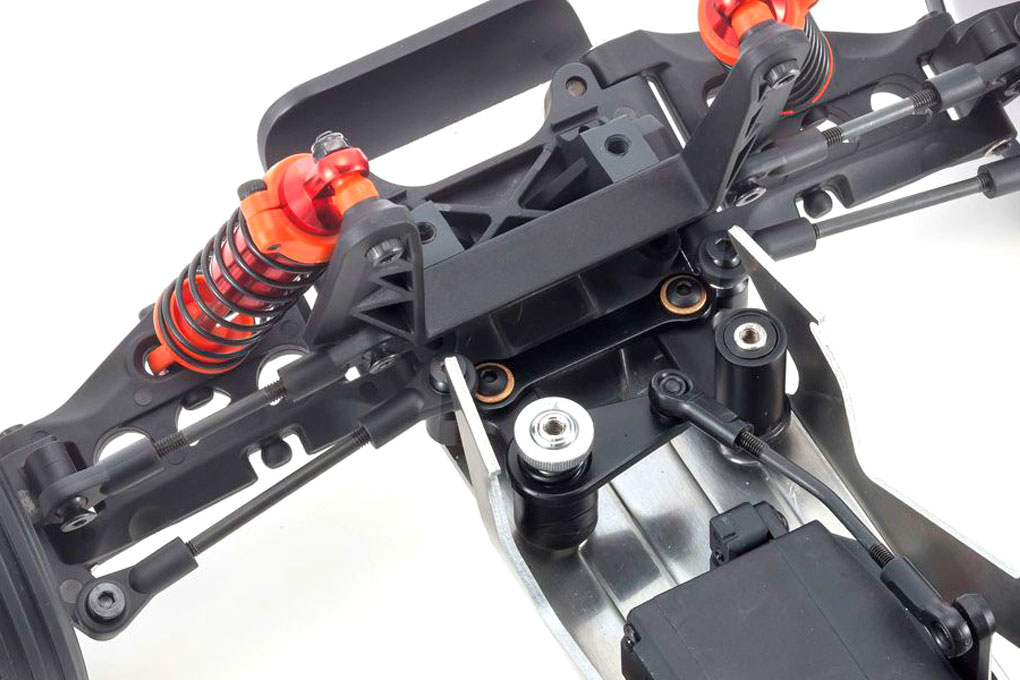

Precise Steering Optimized geometry with aluminum steering link and metal bushings in combination with the servo saver incorporating aluminum pipe and metal spring design used in current racing buggies, delivers stable and precise steering feel.

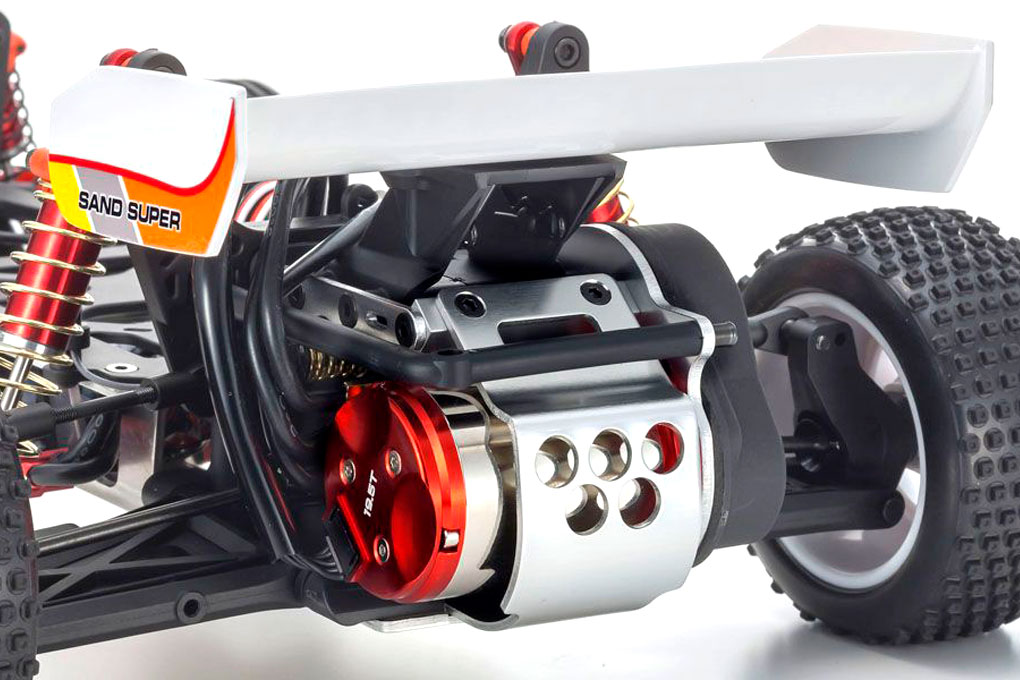

Included Upgrades Included motor guard (was only available as optional upgrade on the original ULTIMA) is made from A6061T6 material and delivers increased durability. Resin wing mount provides choice of 2 height settings and angle can be set between 3 ° - 6 ° with shims. Previously made from polycarbonate, the resin wing delivers improved crash resistance.

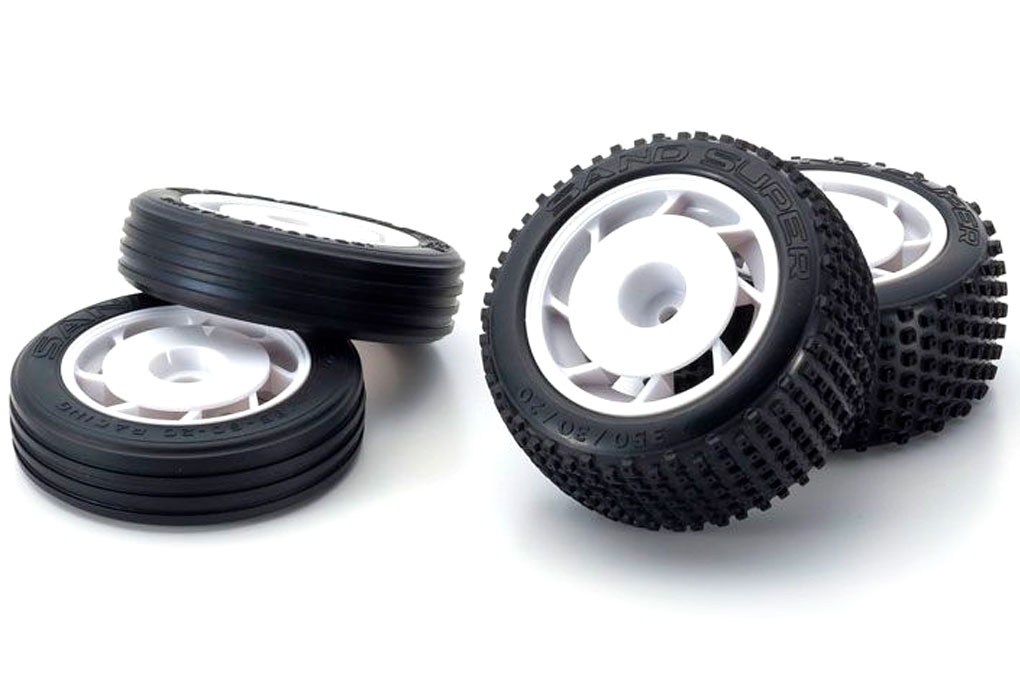

Stable Grip Tires Rear tires feature optimized multi-pin pattern to produce stable grip on a wide variety of surfaces and have been recreated in the image of the original hard block tires.

Features:

• The ULTIMA has been faithfully recreated, with component upgrades for compatibility with modern power sources
• Polycarbonate body with driver cockpit recreates the style and atmosphere of the original ULTIMA
• Full ball bearing specifications (14)
• Equipped with battery guard that prevents battery short circuit during a crash

Includes:

• Kyosho Ultima 1/10 Scale 2WD Buggy - KIT
• Pre-assembled kit
• Polycarbonate clear body
• Decals
• Chassis parts
• Cross wrench
• Shock wrench
• Grease

Requires:

• 2-channel transmitter and receiver - we recommend the Futaba 3PV 3-Channel Transmitter with R203GF Receiver for Surface Models
• 540 size motor and compatible ESC - we recommend the ZTW Beast G2 1/10 Scale 120A 2-4S Brushless ESC and 3500Kv Motor Combo
• Steering servo - we recommend the Hitec HS-645MG Ultra Torque Ball Bearing Metal Gear Standard Servo
• LiPo battery - we recommend the Admiral 5300mAh 2S 7.4V 60C Hard Case LiPo Battery with XT60 Connector
• Batteries for transmitter - we recommend the GP Super Alkaline 1.5V AA Batteries (4 pack)
• 2-4S compatible battery charger - select a minimum 2S charger from our Charger Collection
• Paint (body comes out of the box unpainted)
