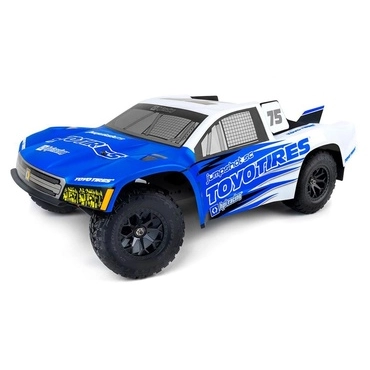

Jumpshot V2 Toyo Tires Edition 1/10 Scale 2WD Brushless Short Course Truck - RTR from HPI Racing - HPI160268
Version Info: This car is delivered as "RTR", however it does require 4 x AA batteries for the transmitter, a 2S (7.4V) or 3S (11.1V) LiPo battery and a battery charger, purchased separately (see Requires below for details).
Motion RC offers HPI Racing’s Jumpshot V2 Short Course Truck with an awesome officially-licensed Toyo Tires trim scheme and realistic Open Country MT replica tires. The detailed and durable factory-decorated and licensed bodyshell represents an iconic off-road truck livery, and with a powerful 4000kV brushless motor, this truck has tons of power for additional fun. The combination of a convenient brushless motor and efficient EMH-3S waterproof speed control delivers 3S LiPo compatibility and insane torque and impressive top speeds. Completely assembled and ready for your selection of battery and charger, the Jumpshot V2 is ready to deliver hours of trouble-free fun.
Visit the Official HPI Racing Jumpshot V2 Toyo Tires Edition 1/10 Scale 2WD Short Course Truck Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
 |
Easy to Drive The Jumpshot SC V2 is super-easy to drive and get familiar with – all you have to do is plug in the battery of your choice, then switch on the radio and car. It’s that easy! |
 |
Protected Motor and Transmission HPI have installed a new gear cover on the optimized rear-mounted gearbox to protect the all-important internal moving parts from dust and debris. |
 |
Heavy-Duty Metal Gears HPI improved everything inside the Jumpshot SC V2 gearbox with new metal top and middle transmission gears with a revised tooth profile for improved gear mesh and lower rolling resistance, in addition to a new aluminum motor mount plate. |
 |
TVP Chassis Layout With durable front and rear skid plates, reinforced battery box door and Savage-inspired TVP (twin vertical plate) lightweight aluminum chassis, the Jumpshot SC V2 is made to tame any terrain. Durable yet flexible suspension parts absorb punishment without breaking, with impact-resistant wheels designed to resist cracking under pressure. |
Features:
- Factory-built RTR 2WD short course truck
- Metal top & middle transmission gears
- Revised tooth profile for improved gear mesh and lower rolling resistance
- New composite differential – Sealed, oil-filled 4-bevel gear design
- Fully enclosed spur gear cover with slipper clutch access cap
- New transmission case with metal motor mount plate
- Short Course truck style body with officially licensed Toyo Tires livery
- 1/10th scale replica Open Country M/T off road tires
- Tough aluminum TVP chassis design
- Bottom-loading battery box fits 2S or 3S LiPo packs
- HPI Flux MMH-4000 brushless motor for maximum power
- HPI Flux EMH-3S waterproof LiPo-ready ESC
- Enclosed receiver box
- 4 GHz radio system
- Oil-filled shock absorbers
- Double-wishbone suspension design
- Sturdy body mounts
- Standard 12mm wheel hub drive hex
- Black 8-spoke wheels
Includes:
- HPI Racing Jumpshot V2 Toyo Tires Edition 1/10 Scale 2WD Brushless Short Course Truck - RTR
- HPI pistol-grip transmitter, with interference-free 2.4GHz technology
- HPI Flux MMH-4000 brushless motor
- HPI Flux EMH-3S waterproof LiPo-ready ESC
- HPI SS-20WR waterproof servo
- Complete ball bearings
Requires:
- Four (4) AA size batteries for the radio transmitter – we recommend Admiral NiMH AA Rechargeable Batteries (4 Pack)
- 2S (7.4V) or 3S (11.1V) LiPo Battery with T-connector - we recommend the Admiral 5300mAh 2S 7.4V 60C Hard Case LiPo Battery with T Connector or Admiral 5300mAh 3S 11.1V 60C Hard Case LiPo Battery with T Connector
- 2 Cell compatible LiPo battery charger - select a charger from our Charger Collection
Product Specifications:
Model Scale |
1/10 |
Length |
560mm / 21.8in |
Width |
295mm / 11.5in |
Height |
190mm / 7.4in |
Weight (Without Battery) |
1950g / 68.7oz |
Wheelbase |
335mm / 13.1in |
Ground Clearance |
N/A |
Body |
Polycarbonate, factory painted and decorated |
Chassis |
Aluminum TVP |
Drivetrain |
2WD |
Wheel Size (Diameter x Width) |
134 x 70mm |
Wheel Hex Size |
14mm |
Tire Tread |
Multi-surface |
Bushing Material |
N/A |
Suspension |
4-wheel independent |
Shock Type |
Oil Filled, Coil Over, Adjustable |
Transmission |
N/A |
Gear Pitch |
48p |
Internal Gear Ratio |
2.72:1 |
Final Drive Ratio |
10.64:1 |
Pinion |
23T |
Spur Gear |
90T |
Differential |
Composite Gear Differential |
Ball Bearings |
Complete |
Brakes |
Electronic |
Electronic Speed Control |
HPI Flux EMH-3S waterproof LiPo-ready ESC |
Motor |
HPI Flux MMH-4000 brushless motor |
Battery |
2S or 3S LiPo with T- connector (required) |
Max Battery Dimensions (L x W x H) |
140 x 50 x 40mm |
Servos |
Waterproof, Metal Gear |
Radio |
2 Channel (included) |
Lights |
No |
Sound |
No |
Water Resistant |
Yes |
Skill Level |
Beginner |
Assembly Time |
Less than 30 minutes |
Recommended Environment |
Outdoors |
