RDX1 Mini 65W 4 Cell (4S) LiPo AC Battery Charger from Hitec - HRC44295
Hitec’s sleekly-designed, micro-processor controlled, compact RDX1 Mini AC charger packs 65 watts of power into a fraction of the size of most chargers to meet your battery management requirements. It is compatible with a full range of the most popular battery types, including LiHV. With 6 amps of maximum charging current and 2 amps of discharging current, the RDX1 Mini is the next best way to stay charged with Hitec!
Note: We recommend reading this Motion RC knowledge blog article about charger amperage and wattage ratings.
|

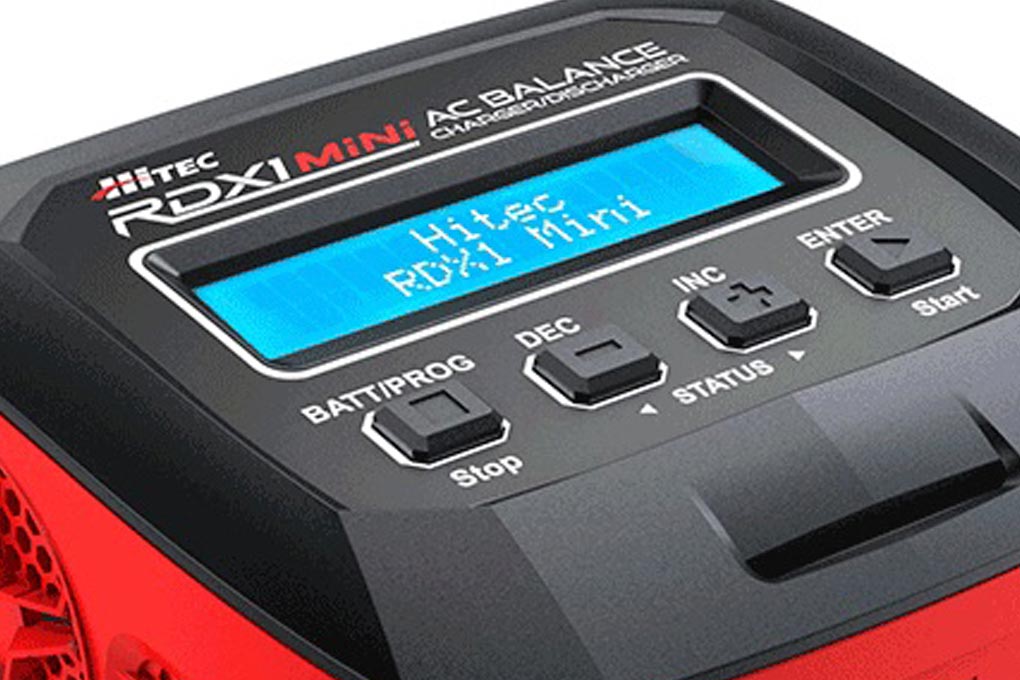

User-Friendly LCD Display The bright, user-friendly LCD display gives you all the info you need via an easy-to-use interface. |
|

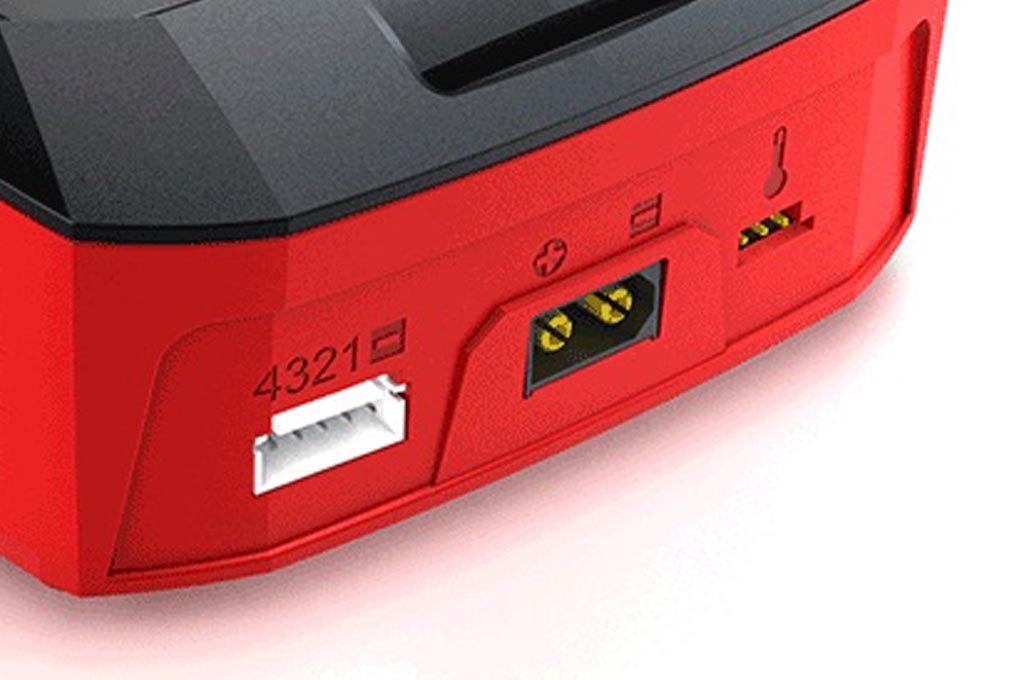

Integrated XT60 Connector The integrated XT60 connector output makes for easy charging of XT60 equipped batteries without the need for an adapter or separate charging lead. |
|

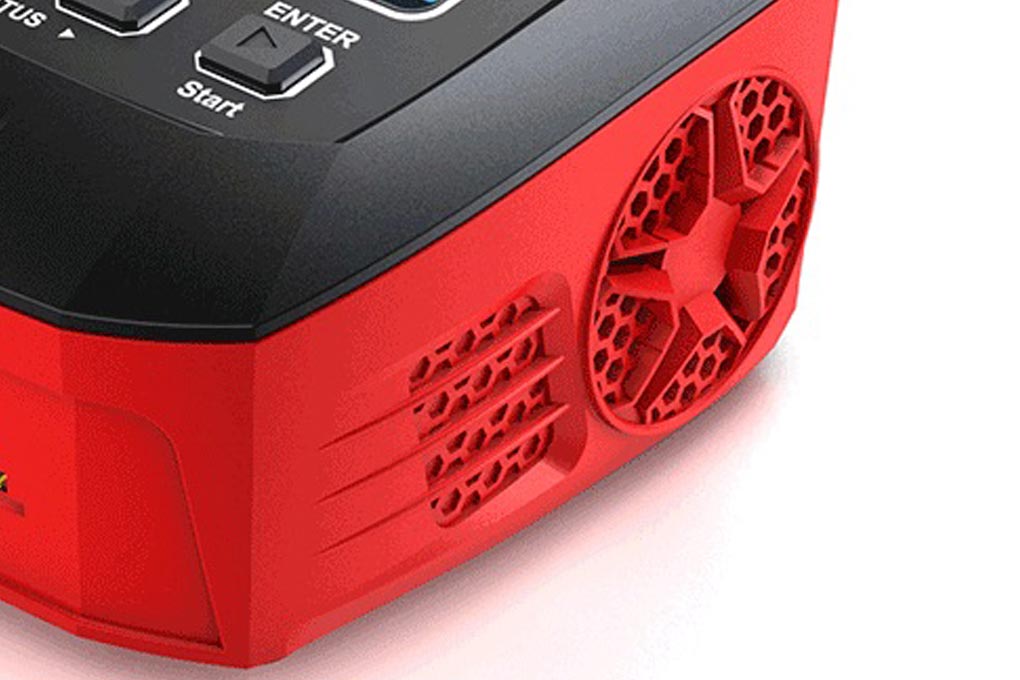

Smart Ventilation Fan Advanced automated cooling system that adjusts fan speeds based on heat demand. |
|
One Year Warranty Enjoy peace of mind with Hitec's one-year warranty. The company stands behind its products, ensuring that they are fully covered. Quality and reliability are at the forefront of Hitec's commitment to its users. |
Features:
- User-Friendly LCD Interface
- Stores 10 Different Battery Memory Charge/Discharge Profiles
- Terminal Voltage Control
- Built-in Balance Connector (JST, XT)
- Cell Balancing While Discharging
- Balance, Standard, Fast and Storage Modes for All Lithium Battery Chemistries
- Re-Peak Charge Mode and Delta-Peak Sensitivity for NiMH/NiCd Batteries
- Optional Temperature Sensor for NiCd/NiMH Charging
- Built-in XT60 Connector
- Smart Ventilation Fan
Includes:
- Hitec RDX1 Mini 65W 4 Cell (4S) LiPo AC Charger
- AC Power Cord
- 2 PIN T-TYPE Charge Connector
Never, under ANY circumstances, leave your charger unattended while charging a LiPo battery. Keep the charger away from moisture, dust, direct sunlight, or any heat sources. The charger should always be placed on a heat-resistant, non-flammable surface during charging. Never overcharge or exceed a 1C charge current. A 1C charge current means the charge current equals the capacity of the battery. For example, a 2200mAh battery should never be charged using a current greater than 2.2 Amps (2200mAh).
Product Specifications:
|
AC Input |
100-240V |
|
DC Input |
N/A |
|
Charge Circuit Power (AC Input) |
65W |
|
Charge Circuit Power (DC Input) |
65W |
| Charge Current Range |
0.1-6.0A |
| Max Charge Current |
2S LiPo: 6.0A |
| Discharge Current Range | 0.1-2.0A |
| Discharge Power | 10W |
|
LiPo/LiFe/Lilon Cells |
2-4S |
| NiMH/NiCd Cells | 6-8S |
| Pb(Lead Acid) Battery Voltage | 6-12V |
| Dimensions (L x W x H) | 117 x 106 x 55mm (4.61 x 4.17 x 2.17 in) |
| Weight | 315g (0.69 oz) |
