AD380 380W Battery Analyzer & Discharger from Hitec - HRC44406
Capable of discharging high-capacity batteries at up to 40amps/380 watts, Hitec’s new AD380 is a user-friendly battery discharger / analyzer that caters to both novice and experienced RC enthusiasts alike.
The AD380 features three discharging modes to help analyze the health and performance of all your RC battery packs. It is perfect for racers and aerobatic pilots wanting to monitor cell resistance and maximize power output. And sport fliers and bashers can bring their high-capacity packs (up to 6S!) to storage level in a fraction of the time required by typical low-wattage built-in discharge circuits.
Let the AD380 help keep your batteries at the proper voltage for storage which is essential to long life with high power output. Use Bluetooth technology and our convenient Link Power X app or connect directly to your PC to graph, monitor and compare discharge curves for individual packs.
The AD380 can be used independently, but can also be used in conjunction with Hitec’s RDX2 800 and RDX2 1000 chargers when connected via the provided DATA cable. When working in tandem, they can support computer connection and control capabilities.
 |

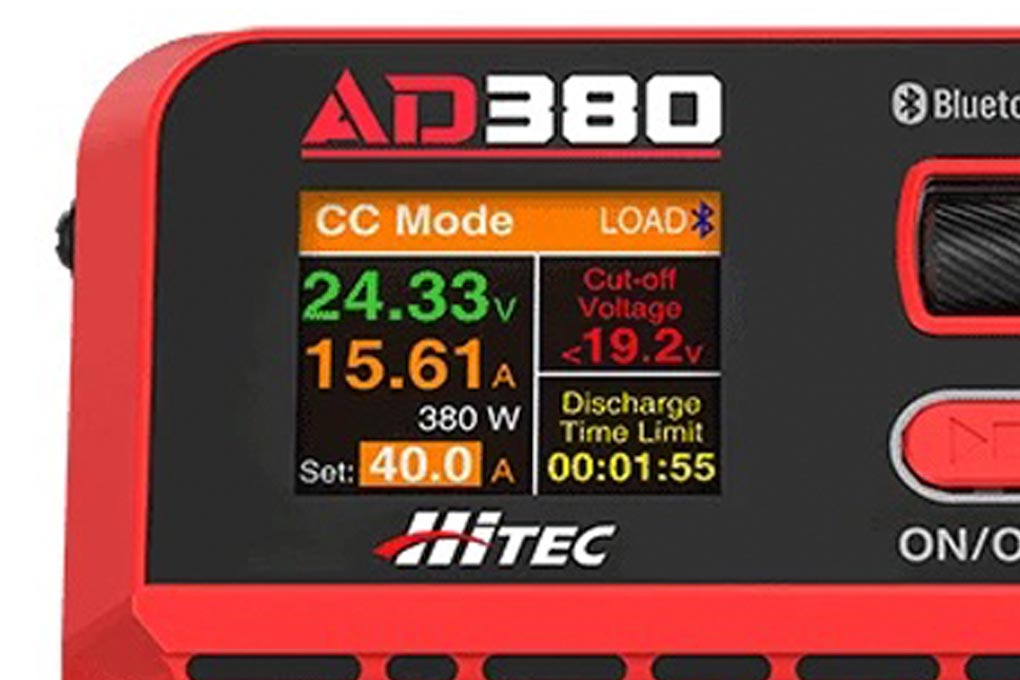

Vibrant Display & Graphical UI The bright, colorful, LCD display gives you all the info you need via an easy-to-use interface. |
 |
One Year Warranty Enjoy peace of mind with Hitec's one-year warranty. The company stands behind its products, ensuring that they are fully covered. Quality and reliability are at the forefront of Hitec's commitment to its users. |
Features:
- User-friendly LCD interface
- Displays real-time battery voltage plus discharged capacity & current
- Tests battery capacity to aid in selecting batteries with desired capacity
- Saves time for storing large-capacity batteries
- Provides your batteries with optimal performance for competition
- Supports Android & iOS App for convenient usage
- Detects the quality of the DC-stabilized power supply
Includes:
- Hitec AD380 380W Battery Analyzer & Discharger
- XT60 cable
- Data cable
- User manual
Operating Modes:
- Constant Current (CC) Mode
- Constant Resistance (CR) Mode
- Constant Power (CP) Mode
- Constant Voltage (CV) Mode
Product Specifications:
|
Operating Voltage: |
DC 3.0V–30.0V |
|
Discharge Rate: |
5.9V–30.0V |
|
Discharge Power: |
380W MAX |
|
Constant Current (CC): |
0.3–40.0A |
|
Constant Resistance (CR): |
1–100Ω |
|
Constant Power (CP): |
1–380W |
|
Constant Voltage (CV): |
180W MAX |
|
Dimensions: |
157 x 122 x 109mm (6.2 x 4.8 x 4.3 in) |
|
Weight: |
1102g (38.88 oz) |
