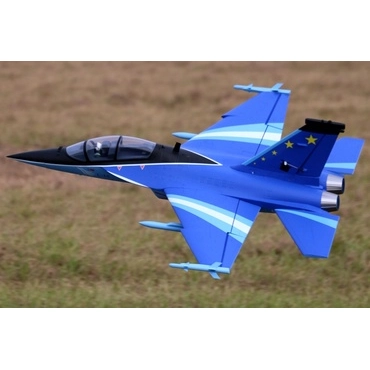

L-15 JL-10 Falcon 6S 64mm EDF Jet from Freewing - PNP - FJ11313P
Version Info: This is the 6S version of the 64mm L-15. This model comes with a brushless 2949-2300Kv inrunner motor and a 50A Brushless ESC with XT60 connector, and also features CNC-machined aluminum, shock absorbing struts. The 6S version accepts a 1800 - 2600 mAh 6S 22.2V LiPo battery.
The Hongdu L-15 Falcon, also known as the JL-10, is a supersonic trainer and light combat aircraft developed by Hongdu Aviation Industry Corporation (HAIC). It is utilized by the People's Liberation Army Air Force (PLAAF) as a lead-in fighter trainer (LIFT).
The overall planform, scale shape and details of the L-15 are expertly captured in this 64mm EDF Jet from Freewing. The scale armament utilizes Freewing’s latest sliding attachment method, making it a breeze to install or remove these scale details, and with its overall simplistic design, you can be flying in as little as 30 minutes with the PNP version.
Visit the Official Freewing 64mm L-15 JL-10 Falcon EDF Jet Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
 |
Freewing EG01 3/6-axis Gyro The L-15 is equipped with the new Freewing EG01 3/6-axis Gyro, which is user configurable through a mobile application. |
 |
6S Power System This version of the L-15 includes a 2949-2300Kv inrunner motor and 50A ESC designed to work on a 6S 1800-2600mAh LiPo battery. |
 |
Removable Scale Missile Details The L-15 includes two PL-8 and PL-12 scale missles that add scale detail and are quickly installed and removed. |
 |
Full Flying Horizontal Stabilizers The L-15 includes a full flying horizontal stabilizer design, just like the full size counterpart. |
 |
12-Blade EDF Power System The L-15 includes the latest generation 64mm, 12-blade EDF unit for efficient and powerful performance across the entire flight spectrum. |
 |
8 Pre-Installed 9g Servos With 8 pre-installed 9g servos, the L-15 features a full setup including flaps, ailerons, elevators, rudder and nose gear steering control. |
Features:
- CNC-machined aluminum, shock-absorbing struts
- Freewing EG01 3/6 Axis Gyro
- 12-Blade EDF with 2949-2300Kv Brushless Motor
- 50 Amp Electronic Speed Controller
- 6S LiPo capability for high performance flight
- Scale details, including armament, pilot and fixed landing gear
- Full flying horizontal stabilizers
- Complete aileron, flap, elevator, rudder and nose gear control
- 8x 9g servos pre-installed
Includes:
- Freewing L-15 JL-10 Falcon 6S 64mm EDF Jet - PNP
- Motor, EDF, ESC, servos included and installed
- Instruction manual
Requires:
- 5 Channel radio - select a minimum 5 channel radio from our Radio Collection
- 5 Channel receiver - select a minimum 5 channel receiver from our Receiver Collection
- TWO 3 Cell 11.1V 1800 - 2600 mAh LiPo Batteries with XT60 Connector in series - we recommend TWO of the Admiral 2200mAh 3S 11.1V 35C LiPo Battery with XT60 Connector

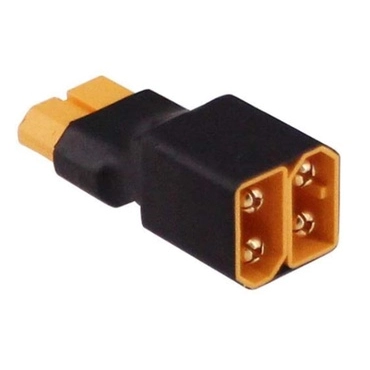

- 2 to 1 Series adapter - we recommend the BenchCraft XT60 2 to 1 Series Adapter
- 6 Cell compatible battery charger - select a minimum 6 cell (6S) charger from our Charger Collection
Product Specifications:
Wingspan |
760mm / 29.9in |
Length |
970mm / 38.2in |
Weight |
910g / 32.09oz |
Power System |
2949-2300Kv brushless inrunner motor |
Speed Control |
50A, XT60 Connector |
Propeller / EDF |
64mm 12-Blade EDF |
Servos |
|
Landing Gear |
Fixed gear with CNC-machined aluminum, shock absorbing struts |
Required Battery |
6S 22.2V 1600mAh to 2600Ah LiPo with XT60 connector (required) |
Required Radio |
5+ Channel radio |
Rudder |
Yes |
Flaps |
Yes |
Ailerons |
Yes |
Lights |
No |
Hinge Type |
Nylon hinges on all control surfaces |
Material |
EPO Foam |
Skill Level |
Intermediate |
Build Time |
30 Minutes |
Recommended Environment |
Outdoors |
Videos
Product Videos
Spare Parts
Product Spare Parts
Freewing 64mm EDF L-15 JL-10 6S Falcon Shock Absorbing Strut and Tire Set - Right
SKU: FJ11311087
$939
Freewing 64mm EDF L-15 JL-10 6S Falcon Shock Absorbing Strut and Tire Set - Left
SKU: FJ11311086
$939
Freewing 64mm EDF L-15 JL-10 6S Falcon Shock Absorbing Strut and Tire Set - Nose
SKU: FJ11311085
$939
0 - 32 of 37 results
Upgrades
Product Upgrades
1 - 9 of 9 results
Q&A
Product questions & answers
NOTE: Questions submitted on this page are answered by customers who have previously purchased this item. If you have a support related question that requires immediate assistance, please visit our Help Center
Support
Product support
Product Manuals:
- Freewing L-15 JL-10 Falcon 64mm EDF Jet PNP Instruction Manual
- Freewing EG01 6 Axis Gyro Stabilized Flight Control System Manual
Â
Product Tech Note:
- February 21, 2024 - For the preinstalled Freewing Guard Gyro, no light means gyro is off, green light is normal gyro mode, blue light is self level mode.
