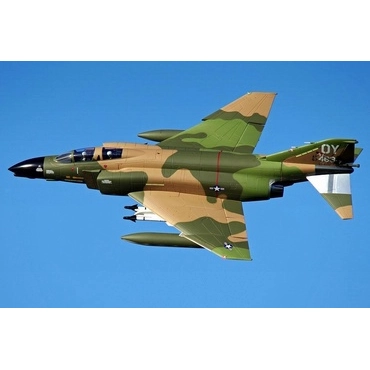

F-4D Phantom II 90mm EDF Jet from Freewing - ARF PLUS - FJ31211AP
Version Info: This is the ARF+ version for pilots who wish to install their own power system. All primary electronics including servos and landing gear retracts come pre-installed, just add your own power system (EDF, motor, and ESC) to begin flying.

The specter has been revealed! Aviation enthusiasts have long loved the F-4 Phantom, and Freewing and Motion RC are extremely proud to introduce our 90mm Super Scale Series rendition of this ultimate warfighter! For more than 50 years, the F-4 Phantom delivered the versatile capabilities required of an all-weather frontline supersonic interceptor, fighter-bomber, SEAD, and reconnaissance platform. Less than a year after its retirement from US military service, you can still keep the F-4 Phantom flying in your RC fleet!
RC pilots have consistently requested a large F-4 EDF jet that performs excellently out of the box without endless modifications. We developed this F-4 to deliver reliability, durability, and performance from your very first flight. Grass operation is a hallmark of the Freewing 90mm F-4. With its wide stance, tall main tires, Oleo suspension nose strut and concealed trailing link suspension main struts, this aircraft performs well on rougher grass fields.
Super scale details include accurate dual landing lights flush-mounted into the scale operating nose wheel doors, DayBright position lights, rivet detail, static arrestor hook, and period accurate ordnance comprising four AIM-9D Sidewinders and two 370 gallon fuel tanks on removable hardpoints. Plastic details include pitot tubes, ejection seat pull rings, and molded exhaust nozzles. The large fiberglass nose cone is magnetic and removable, and the chin pod beneath it is foam, allowing easy removable and customization for other versions (-C or late -D).
Representing the famed aircraft BuNos 66-463 operated by pilot Richard “Steve” Ritchie and weapons systems officer Charles “Chuck” DeBellevue when they scored their fifth kill together on May 10, 1972 over Vietnam, the Freewing 90mm F-4 arrives pre-painted in classic SEA (South East Asia) Camo and proudly wears the markings of the 555th TFS. For piloting wanting to customize their F-4 with their own scheme, we recommend Callie-Graphics.com.
Such a large RC model aircraft remains easy to transport with magnetic removable fiberglass nose cone and removable wings with a convenient flexible wire harness that attaches at each wing root. Large flaps, brass ball links, reliable control hardware, and digital servos throughout the aircraft provide positive control, and a specially designed elevator mechanism incorporates two ball bearings for smooth rotation at all times.
Own the biggest and best performing foam EDF F-4 Phantom in the world – Rejoice RC pilots, Freewing has delivered another grand slam!
Visit the Official Freewing 90mm F-4 Phantom II Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
Note: The F4 Phantom displayed in the photos above - while similar in livery - is a custom-painted pre-production version and not the actual final production version.
Features:
- Removable ordnance (4x AIM-9 Sidewinder missiles and 2x magnetic fuel tanks)
- Scale operating nose door and landing lights
- Durable suspension struts for grass operation
- Removable wings and stabilizers for convenient transport
- Removable magnetic fiberglass nose cone
- Digital servos throughout
Includes:
- Freewing F-4D Phantom II 90mm EDF Jet - ARF PLUS
Requires:
- Brushless motor, EDF unit and ESC (see specifications for details)
- 6 Channel radio - select a minimum 6 channel radio from our Radio Collection
- 6 Channel receiver - select a minimum 6 channel receiver from our Receiver Collection
- 6 Cell 22.2V 5000 mAh LiPo battery with EC5 connector - we recommend the Admiral 6 Cell 5000 mAh LiPo with EC5 connector
- 6 Cell compatible battery charger - select a minimum 6 cell (6S) charger from our Charger Collection
Optional:
- Two 4 Cell 14.8V 5000 mAh LiPo batteries with EC5 connector - EPR50004PRO (if 8S power system is desired)
- EC5 2-to-1 series adapter - ADMEC5SERIES (if 8S power system is desired)
Product Specifications:
Wingspan |
1030mm / 40.15in |
Length |
1550mm / 61.02in |
Empty Weight |
2850g / 100.53oz (w/o battery) |
CG (Center of Gravity) |
190mm (7.5") from the leading edge of the wing at the root |
Power System |
6-8S Brushless Outrunner Motor (required) |
Electronic Speed Control |
130A for 6S/150A for 8S (required) |
Propeller / EDF |
90mm 9/12-Blade EDF (required) |
Servos |
|
Landing Gear |
Electronic retractable main gear and steerable nose gear with all metal shock absorbing struts |
Required Battery |
6S or 8S depending on power system and ESC (required) |
Required Radio |
6 Channel (required) |
Ailerons |
Yes |
Elevator |
Yes |
Rudder |
Yes |
Flaps |
Yes |
Lights |
Yes |
Hinge Type |
Nylon Reinforced |
Material |
EPO Foam |
Skill Level |
Advanced/Expert |
Build Time |
3-4 Hours |
Recommended Environment |
Outdoor, 300+ foot paved runway or short manicured grass |
Videos
Product Videos
Spare Parts
Product Spare Parts
1 - 32 of 62 results
Upgrades
Product Upgrades

SKU: HEA3S3FS
$6699
Sold out

SKU: E632
$1799
Sold out
1 - 10 of 10 results
Q&A
Product questions & answers
NOTE: Questions submitted on this page are answered by customers who have previously purchased this item. If you have a support related question that requires immediate assistance, please visit our Help Center
Thank you for posting a question!
Your question will appear on the site once we've answered it.
Support
Product support
Product Manuals:
Product Updates:
- Sept 21, 2018 - This update is specific to the new Grey color version of the 90mm F-4D. The grey version of this model includes two decal sets, one Marines "Grey Ghosts" and one Navy "Sundowners." The plane comes painted to accept the decals for the Grey Ghosts variant. If you wish to use the Navy Sundowner livery, it will look best if you paint your vertical stabilizer red before applying the decals to the tail section. Use a foam safe paint such as basic latex paint available at major hardware stores.
