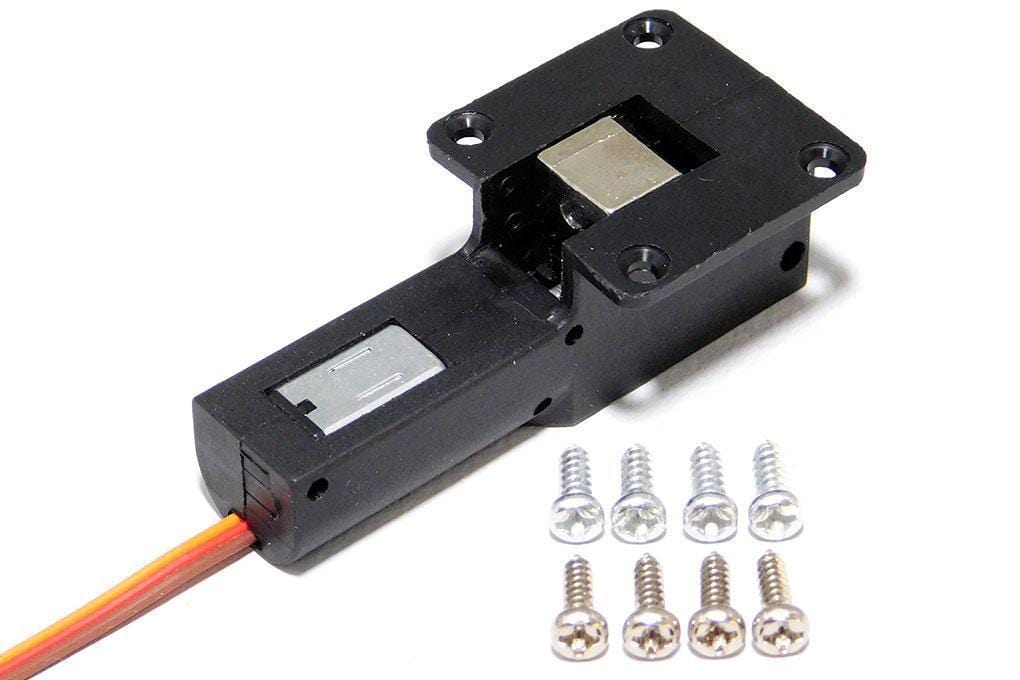

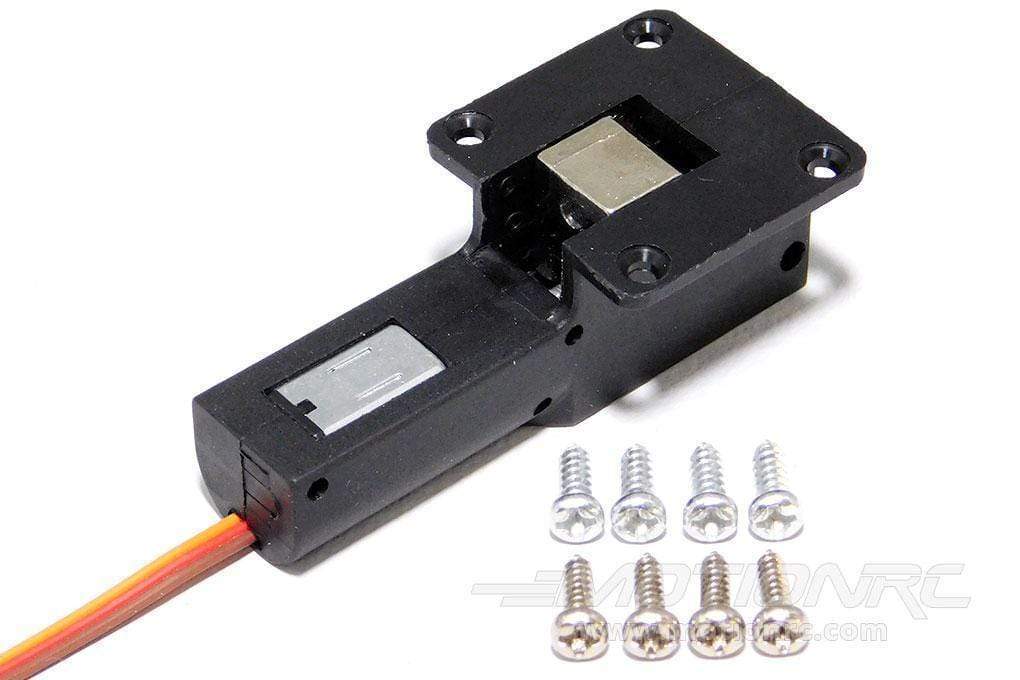

Electronic Retract for 3.1mm Shaft Type C
Specifications:
- Body material: plastic
- Trunion material: black anodized metal
- Strut diameter: accepts shafts of 3.1mm in diameter
This retract is used on the main landing gear of the following Freewing aircraft:
- A-10
- F-35 V2
- Cobra/Rebel V2
- FW-190
Product Specifications:
Gear Material |
Nylon/ABS |
Operating Voltage Range |
4.8V - 6V |
Speed (4.8V) |
1.3 sec @ 90 deg |
Speed (6V) |
1.1 sec @ 90 deg |
Torque (4.8V) |
2.8 kg/cm (39 oz/in) |
Torque (6V) |
3.2 kg/cm (44.5 oz/in) |
Current Draw at Idle (4.8V) |
100mA |
Current Draw at Idle (6.0V) |
130mA |
Maximum Load Current (4.8V) |
900mA |
Maximum Load Current (6.0V) |
1100mA |
Current Draw Operating (No Load) |
10mA |
Dimensions (L x W x H) |
62 x 30 x 44mm |
Weight |
34g (1.2oz) |
Lead Length |
360mm |
