Freewing Electronic Main Retract for 5.1mm Diameter Shafts - Type C (OPEN BOX)
$1999
$2299
SAVE
$3.00

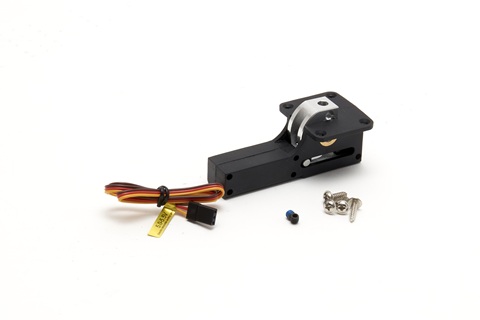

Electronic Retract for 5.1mm Diameter Shafts - Type C from Freewing - E841 - OPEN BOX
Open Box Details:
- Missing Parts: None.
- Damage/Defects: None. Tested, works as it should
- Builder Notes: None.
For the main gear of the following FlightLine RC and Freewing aircraft:
- Freewing 70mm AL37 Airliner
- 1600mm F7F
- 1600mm Spitfire
- Freewing 90mm F-4D Phantom II
- Freewing 90mm F/A-18C Hornet
- Freewing 80mm T-33
Product Specifications:
|
Gear Material |
Nylon/ABS |
|
Operating Voltage Range |
4.8V - 6V |
|
Speed (4.8V) |
3.5 sec @ 90 deg |
|
Speed (6V) |
3.2 sec @ 90 deg |
|
Torque (4.8V) |
13 kg/cm (459 oz/in) |
|
Torque (6V) |
15.5 kg/cm (547 oz/in) |
|
Current Draw at Idle (4.8V) |
130mA |
|
Current Draw at Idle (6.0V) |
150mA |
|
Maximum Load Current (4.8V) |
1900mA |
|
Maximum Load Current (6.0V) |
2300mA |
|
Current Draw Operating (No Load) |
10mA |
|
Dimensions (L x W x H) |
75.5 x 38 x 32.3mm |
|
Weight |
54g (2.08oz) |
|
Lead Length |
360mm |
