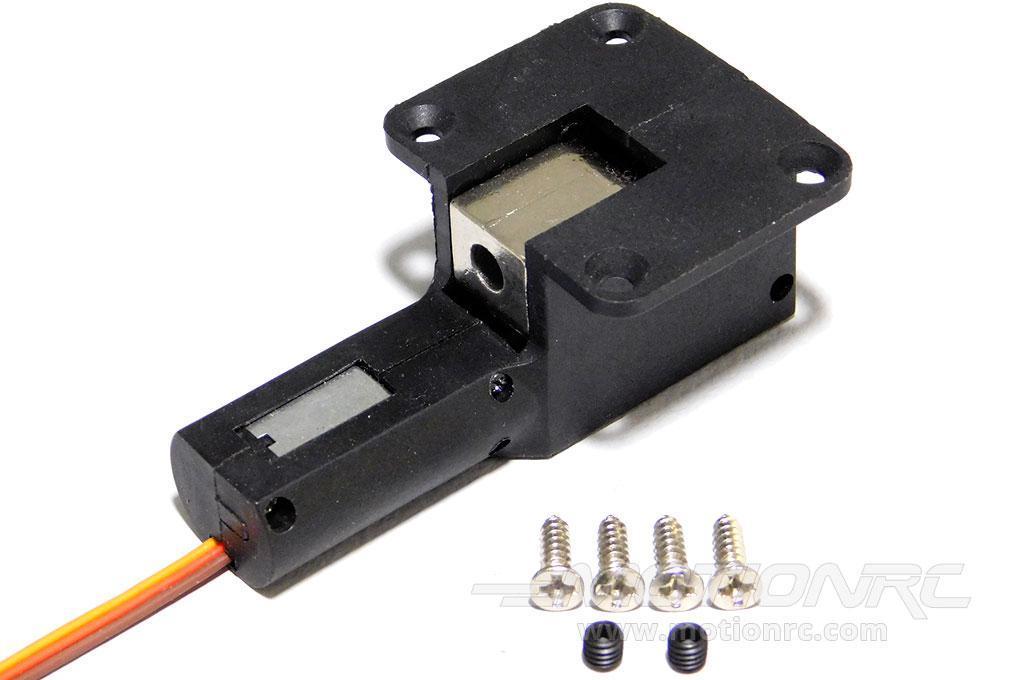

Freewing Electronic Main Gear Retract for 5.1mm Diameter Shafts - Type A
$1959
Electronic Main Gear Retract for 5.1mm Diameter Shafts - Type A
Specifications:
- Body material: plastic
- Trunion material: metal
- Strut diameter: accepts shafts of 5.1mm in diameter
This retract is used on the main landing gear of the following Freewing aircraft:
- 90mm Yak-130
Product Specifications:
Gear Material |
Nylon/ABS |
Operating Voltage Range |
4.8V - 6V |
Speed (4.8V) |
1.8 sec @ 90 deg |
Speed (6V) |
1.6 sec @ 90 deg |
Torque (4.8V) |
5.0 kg/cm (70 oz/in) |
Torque (6V) |
5.5 kg/cm (76 oz/in) |
Current Draw at Idle (4.8V) |
100mA |
Current Draw at Idle (6.0V) |
130mA |
Maximum Load Current (4.8V) |
900mA |
Maximum Load Current (6.0V) |
1100mA |
Current Draw Operating (No Load) |
10mA |
Dimensions (L x W x H) |
66 x 38 x 32.2mm |
Weight |
43g (1.51oz) |
Lead Length |
360mm |
