Freewing 9g Reverse Servo with 800mm (31") Lead
$799
Popular Bundle
Freewing 9g Reverse Servo with 800mm (31") Lead
Out of stock
Total price:
$1148

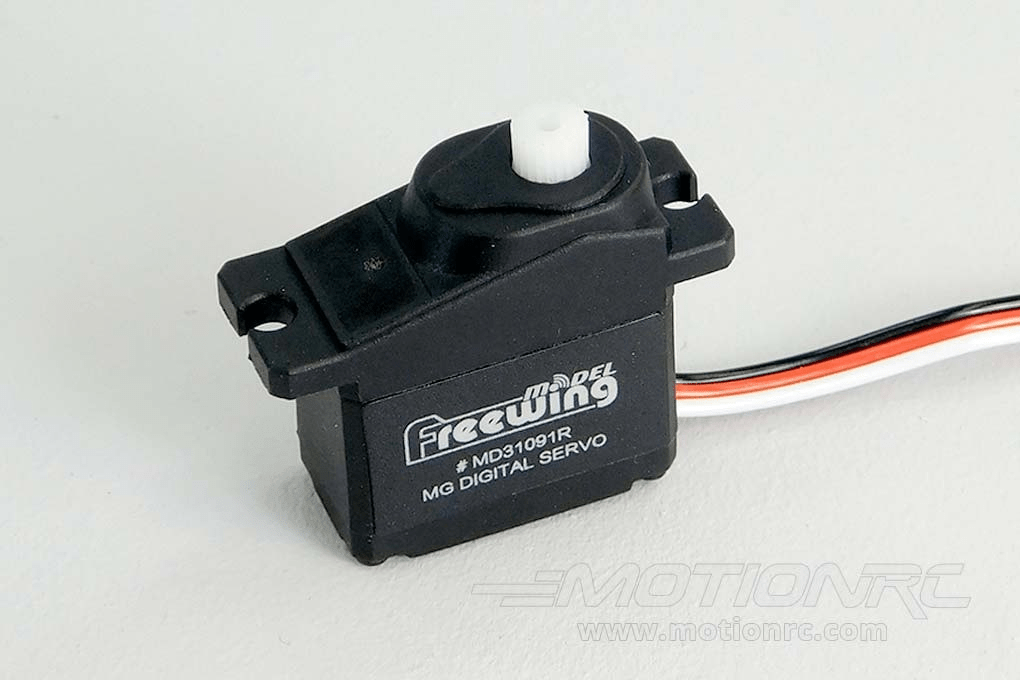

9g Reverse Servo with 800mm (31") from Freewing - MD31091R-800
This servo is used on various Freewing jets. It can be used with other aircraft with compatible specifications (see below).
Features:
- Lightweight, efficient high torque servo perfect for mid-sized to large EDF jets

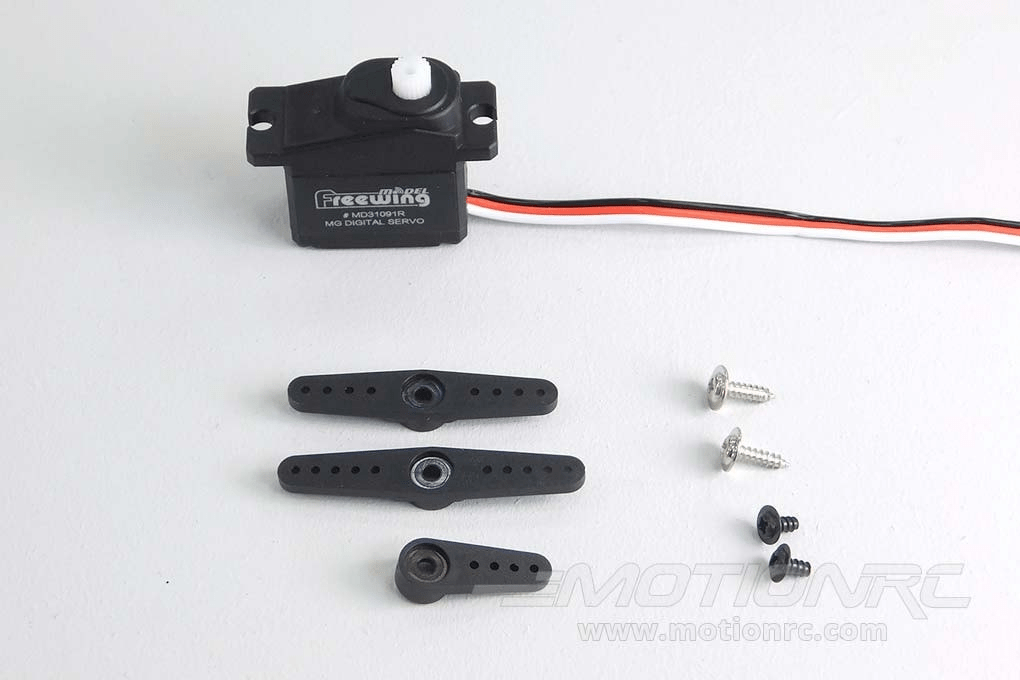

Includes:
- Freewing 9g Reverse Servo with 800mm (31") Lead
- 4 mounting screws
- 3 servo horns
Product Specifications:
| Servo Class | 9g |
| Servo Type | Digital |
| Gear Material | Plastic / Nylon |
| Direction | Reverse |
| Operating Voltage Range | 4.8V to 6V |
| Speed (4.8V) | 0.12 sec @ 60 deg |
| Speed (6V) | 0.10 sec @ 60 deg |
| Torque (4.8V) | 1.2 kg/cm (16.66 oz/in) |
| Torque (6V) | 1.5 kg/cm (20.83 oz/in) |
| Current Draw at Idle | 10mA |
| Current Draw Operating (No Load) | 80mA |
| Dimensions (L x W x H) | 23.5 x 12.2 x 26.4mm |
| Weight | 9g (.31oz) |
| Lead Length | 800mm |
