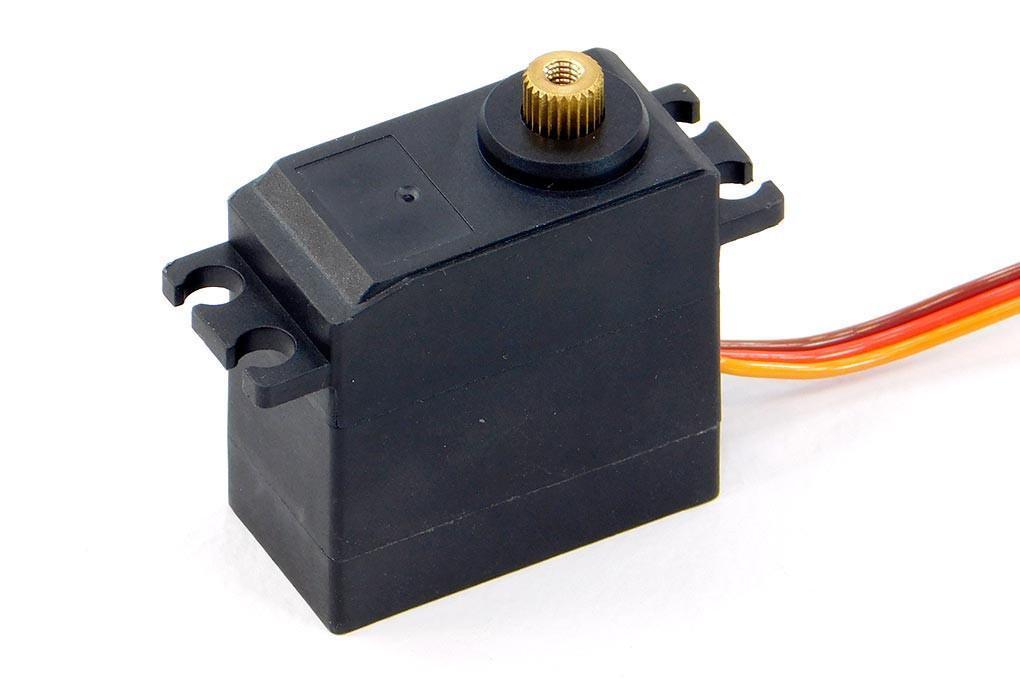

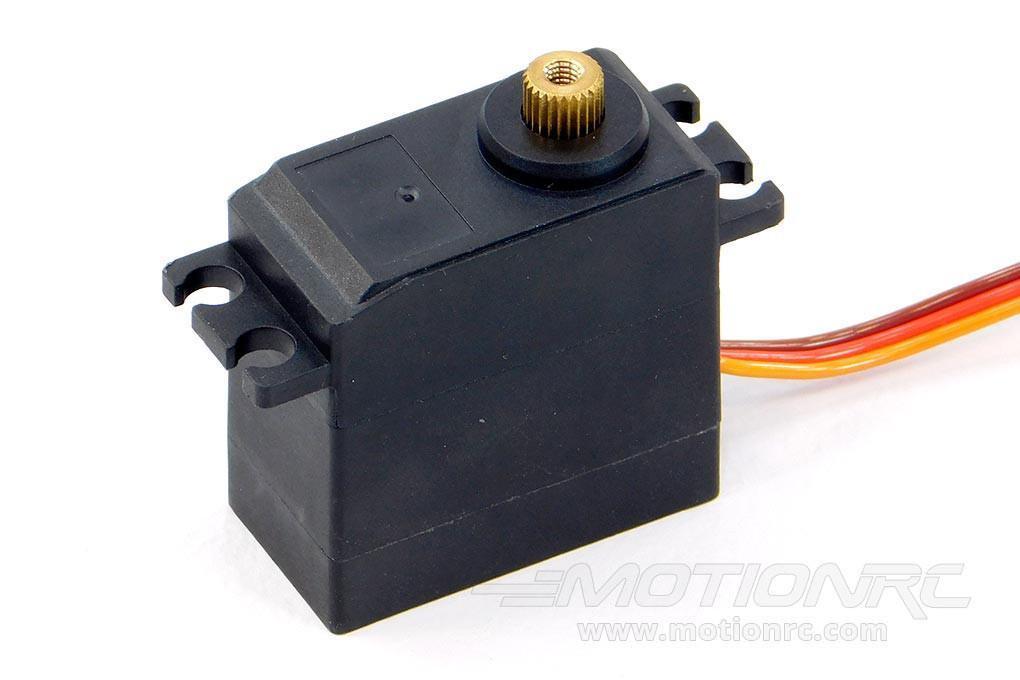

30g Digital Metal Gear Servo with 600mm (23") Lead from Freewing - MD31302-600
This servo is used for the ailerons on the 80mm Freewing A-10 Thunderbolt. It can be used with other aircraft with compatible specifications (see below).
Features:
- Lightweight, efficient high torque digital metal gear servo perfect for larger-sized EDF jets

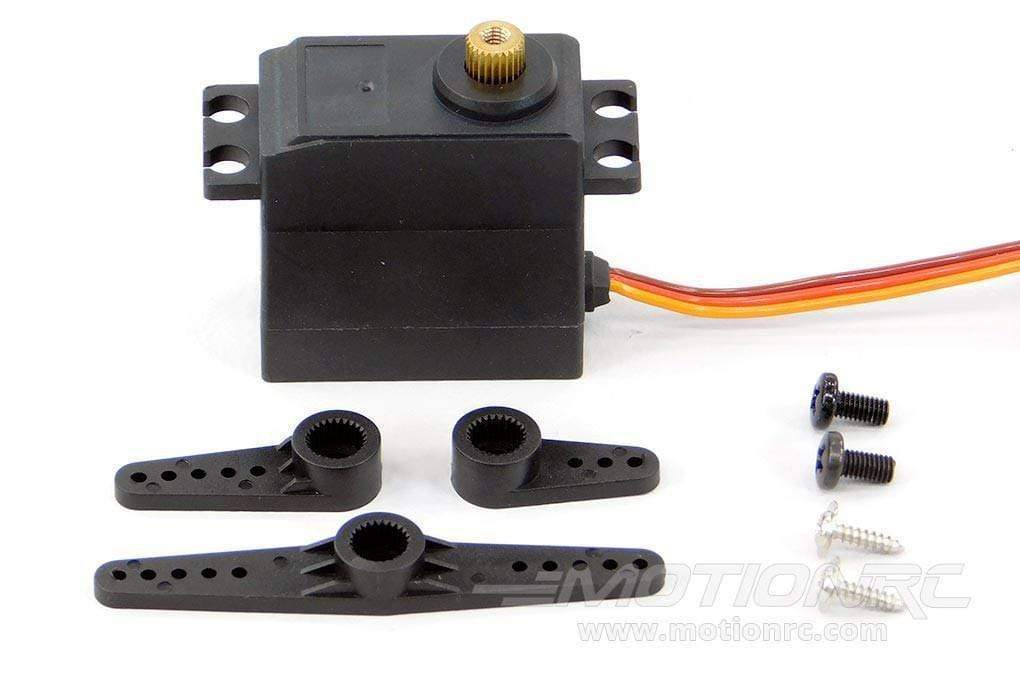

Includes:
- Freewing 30g Digital Metal Gear Servo with 600mm (23") Lead
- 4 mounting screws
- 3 servo horns
Product Specifications:
Servo Class |
Mini |
Servo Type |
Digital |
Gear Material |
Metal |
Direction |
Standard / Normal |
Operating Voltage Range |
4.8V to 6V |
Speed (4.8V) |
0.11 sec @ 60 deg |
Speed (6V) |
0.09 sec @ 60 deg |
Torque (4.8V) |
4.0 kg/cm (55.54 oz/in) |
Torque (6V) |
4.5 kg/cm (62.49 oz/in) |
Current Draw at Idle |
20mA |
Current Draw Operating (No Load) |
150mA |
Dimensions (L x W x H) |
33 x 17.4 x 32.3mm |
Weight |
36g (1.26oz) |
Lead Length |
600mm |
Q&A
Product questions & answers
NOTE: Questions submitted on this page are answered by customers who have previously purchased this item. If you have a support related question that requires immediate assistance, please visit our Help Center
Freewing 17g Digital Metal Gear Reverse Servo with 600mm (23") Lead
SKU: MD31172R-600
VIEW PRODUCT
Customer Reviews
- Reviews
Coreless and Normal
I need to make correction to my last review. What I wrote in my last review titled "Best Freewing servo" is about Corelles 30g Servo. I also bought the not...read more
Best Freewing servo
I am very happy that these 30 gram servos do not have free play like the 17g Freewing servos. Freewing please make 17g servos that do not have freeplay. If...read more
Freewing 30g Digital Metal Gear Servo with 600mm (23") Lead
I purchased these servos since they are available with the long leads that eliminate the need for extension wires and additional connectors. And, they are fast. However, I was disappointed...read more
Good Servo great price
Got these for the elevator and rudder on my Nexa P47. Does the job!
Freewing servo
Good delivery but the custom clearance and bill was a much too expensive! 30Frs for a 50Us item! Custom service is a big robber!
Great servo.
This servo is great. Great value too. The people at MotionRc is just what you want in service.
-
