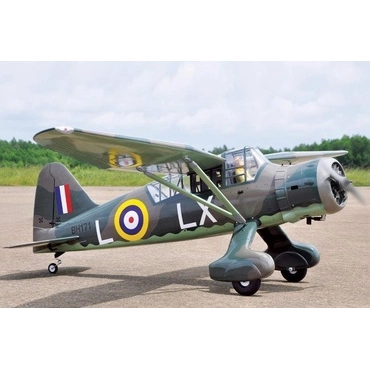

Black Horse Westland Lysander 2540mm (100") Wingspan - ARF

DHC-2 Westland Lysander 2540mm (100") Wingspan from Black Horse - Balsa Wood ARF - BHWL000

The Westland Lysander was designed by British manufacturer Westland Aircraft as an army co-operation and liaison aircraft. The Lysander was designed by W.E.W. “Teddy” Petter, who would go on to design aircraft such as the EE Canberra, Lightning and Folland Gnat.

The Lysanders extraordinary short take-off and landing performance made it ideal for clandestine operations during WW2 where it undertook missions for the Special Operations Executive placing and collecting agents from occupied France.

Our model is scaled to approximately 1:6 and attention has been given to providing a realistic appearance with outstanding flight characteristics. The model was designed for electric power but can also be flown using an internal combustion engine of about 30-40cc displacement.

Visit the Official Black Horse Westland Lysander 2540mm Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.

Features:

• High level of prefabrication right out of the box
• Lightweight, strong, and fully sheeted laser cut balsa and plywood construction
• Panel lines and details printed directly onto the pre-applied, high quality covering
• Aerofoiled tail surfaces
• Recessed hinges on all control surfaces
• Pre-drilled hinge mounting holes
• Heavy-duty pin hinges on all control surfaces
• Large easy access fuel tank/battery/servo access hatches with sprung loaded latches
• Painted and detailed cockpit, pilot and interior included
• Fiberglass control horns with ball link connector
• comprehensive control and fitting accessories included
• Two-piece, plug-in wings simplify transportation and assembly
• Fiberglass cowl and glass reinforced landing gear covers/pants
• Mounts for both electric and gas power options included
• Fully illustrated instruction manual included and available for download (see tab above)

Includes:

• Black Horse Westland Lysander 2540mm (100") Wingspan - ARF

Requires (Electric):

• 6-8 Channel radio - select a minimum 6 channel radio from our Radio Collection
• 6-8 Channel receiver - select a minimum 6 channel receiver from our Receiver Collection
• 2500-3200 Watt Brushless Outrunner Motor - we recommend the Admiral GP35 C6332-175Kv Brushless Motor

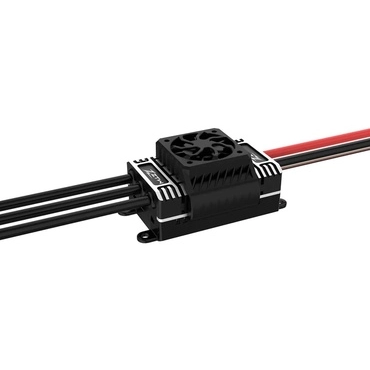

• 160 Amp brushless ESC - we recommend the ZTW Mantis G2 160A High Voltage OPTO ESC
• 7x high torque servos - we recommend Hitec HS-645MG 55g Ultra Torque Ball Bearing Metal Gear Servo Airplane Multi-Pack (8 Servos)
• 2x 5000mAh LiPo receiver batteries in series - we recommend Admiral 5000mAh 6S 22.2V 50C LiPo Battery with EC5 Connector Multi-Pack (2 Batteries)
• 2000-3000mAh LiPo receiver battery - we recommend Admiral 2100mAh 2S 6.6V LiFe Battery with XT60/JR/Futaba Connectors
• EC5 2-to-1 series adapter - BenchCraft EC5 2 to 1 Series Adapter with 10 Gauge Silicone Wire
• Electric propeller - we recommend the APC 21x13 Thin Electric Propeller
• 6 Cell compatible battery charger - select a minimum 6 cell (6S) charger from our Charger Collection

Requires (Gas):

• Engine: 35cc gas - we recommend NGH GT35R 35cc Rear Exhaust Two-Stroke Engine
• Servos: 7x high torque servos - we recommend Hitec HS-645MG 55g Ultra Torque Ball Bearing Metal Gear Servo Airplane Multi-Pack (8 Servos)
• 1 ultra torque servo (throttle) Hitec HS-645MG 55g Ultra Torque Ball Bearing Metal Gear Standard Servo
• Receiver battery: 2S 2000mAh LiFe Battery - we recommend Admiral 2100mAh 2S 6.6V LiFe Battery with XT60/JR/Futaba Connectors
• Gas Propeller: 20x10 - we recommend the Admiral 20x10 Gas Series Wood Propeller
