Overview

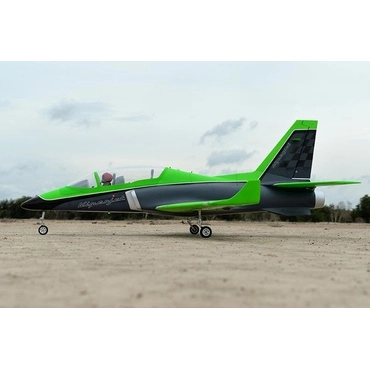

Viper Jet MKII Turbine from Black Horse - Balsa Wood ARF - BHM1008-001
This Black Horse Viper Jet Mk.II [Turbine Version] ARF delivers an ideal balance between size, weight, speed, flight envelope, transportability, cost, and pure fun factor. With modern construction methods, high quality materials, and your provided high performance power system and electronics, this balsa wood aircraft is one of the best performers any RC jet pilot could own. Within a few evenings of installing your provided turbine power system and other required electronics, you'll have a premier turbine-powered balsa jet in your RC hangar that's ready to dominate the skies in style!
Visit the Official Black Horse Viper Jet 2000mm Turbine Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
High Quality ARF Constructed from laser-cut balsa, plywood, carbon fiber, and other high quality materials, the Black Horse Viper Jet Mk.II arrives with a high level of pre-assembly. Every surface is fully sheeted with balsa to provide maximum strength and a professional finish. |
Turbine-Ready The model aircraft's fuselage and internal compartments were carefully designed to accommodate your provided turbine, fuel tank, ECU, and other electronics. A steel exhaust pipe is also provided, along with mounting points for modern turbines. |
Included Suspension Struts CNC machined aluminum and steel suspension struts feature a robust 5mm diameter axle, 65mm nose wheel, and 75mm main wheels for operating on both paved and grass RC runways. This axle size is readily compatible with modern electric-based and air-based braking systems. |
High Visibility Livery Fly a real showstopper with the Viper Jet's striking Carbon/Green livery. Neon green offsets the sleek carbon and black aircraft, enhancing the aircraft's visibility in the sky. LED lighting, clear light bezels, silver accents at the intakes and exhaust nozzle, and muted "Viper Jet" badging elevate this model's livery to something truly unique. |
Molded Canopy and Cockpit Peer into the detailed plastic cockpit bay through the molded clear plastic canopy. The plastic parts resist both heat and UV damage, retaining their color and sharpness through many flying seasons. |
High Performance Aerobatic Trainer The Viper Jet Mk.II is well regarded for both its nimble and stable flight characteristics. Carefully selected airfoils and construction methods provide a wing that does not stall easily and can sustain high speed flight loads while remaining lightweight. Fly this aircraft as a docile large turbine trainer, or move directly into flying an excitingly wide spectrum of aerobatic maneuvers! |
High Quality Hardware Reinforced nylon, steel, and brass hardware provide the best material performance for different jobs. Trusted construction methods and control hardware geometries ensure each servo drives its control surface precisely with minimal efficiency loss. |
All-Around "Daily Driver" The Black Horse Viper Jet Mk.II delivers an ideal balance between size, weight, speed, flight envelope, transportability, cost, and pure fun factor. With modern construction methods, high quality materials, and your provided high performance power system and electronics, this aircraft is one of the best performers any RC jet pilot could own. |
Features:
- Striking "Carbon/Green" livery
- Fully sheeted with balsa
- High level of prefabrication right out of the box
- "Turbine-Ready" compartments aid in easy installation process
- Steel dual wall exhaust pipe
- Lightweight, strong, laser-cut balsa and plywood construction
- High quality control hardware
- Fiberglass and carbon fiber reinforced areas
- All-Metal suspension struts
- Wheels with 5mm axle diameter
- Clear canopy and plastic cockpit bay
- Straightforward assembly and installation for advanced turbine jet builders
Includes:
- Black Horse Viper Jet MKII Turbine-Ready - ARF
- CNC metal suspension struts
Requires:
- Turbine Engine, ECU, Fuel Tank, and All Required Turbine-centric Components
- 8 Channel radio - select a minimum 8 channel radio from our Radio Collection
- 8 Channel receiver - select a minimum 8 channel receiver from our Receiver Collection
- 8x high torque servos - we recommend Hitec HS-7245MH High Voltage High Torque Digital Metal Gear Mini Servo Multi-Pack (8 Servos)
Black Horse ARF models are constructed out of balsa wood and plywood. These are not foam models. The assembly of balsa wood ARF aircraft requires basic model building skills including the installation of servos, ESC, and motor (or gas engine).
Product Specifications:
Model Scale |
1:4 Scale |
Wingspan |
2000mm / 78.7in |
Length |
1820mm / 71.6in |
Weight |
9800 - 10500g / 21.6 - 23.1lbs |
CG (Center of Gravity) |
184mm from the leading edge of the wing at the root |
Power System |
Turbine of sufficient power (see manual) (required) |
Electronic Speed Control |
Electronic Control Unit (ECU) (required) |
Propeller / EDF |
N/A |
Servos |
Electric - 8x 45g standard (required) - we recommend 8x HRC6005-033 |
Landing Gear |
Electric retract with controller box (included) |
Required Battery |
Receiver battery: 2S 7.4V 3200mAh LiPo battery or equivalent (required) |
Required Radio |
8+ Channel (required) |
Ailerons |
Yes |
Elevator |
Yes |
Rudder |
Yes |
Flaps |
Yes |
Lights |
No |
Hinge Type |
Nylon Heavy Duty pin hinges |
Material |
Balsa and plywood |
Skill Level |
Expert |
Build Time |
20+ Hours |
Recommended Environment |
Outdoors |
