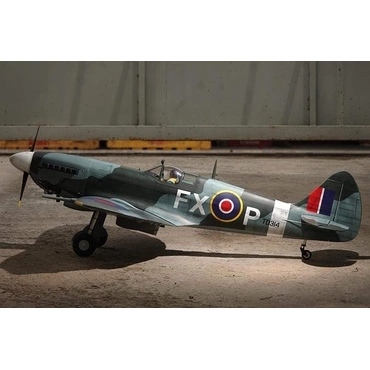

Spitfire 2000mm (78.7") Wingspan from Black Horse - Balsa Wood ARF - BHSF000
The Supermarine Spitfire is a British single-seat fighter aircraft used by the Royal Air Force and other Allied countries before, during, and after World War II. Many variants of the Spitfire were built, using several wing configurations, and it was produced in greater numbers than any other British aircraft. It was also the only British fighter produced continuously throughout the war. The Spitfire continues to be popular among enthusiasts; nearly 60 remain airworthy, and many more are static exhibits in aviation museums throughout the world.
The model is scaled to approximately 1:5 and attention was paid to a true to original appearance and best flight characteristics. The model can be operated using an electric power system or with an internal combustion engine about 30-35cc displacement.
Visit the Official Black Horse Spitfire 2000mm Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
Features:
- High level of prefabrication right out of the box
- Lightweight, strong, laser cut balsa and plywood construction
- Panel lines and details printed directly onto the pre-applied, high quality covering
- Aerofoiled tail surfaces
- Recessed hinges on all control surfaces
- Pre-drilled hinge mounting holes
- Heavy-duty pin hinges on all control surfaces
- Large easy access fuel tank/battery/servo access hatches with sprung loaded latches
- Painted and detailed cockpit, pilot and interior included
- Fiberglass control horns with ball link connector
- comprehensive control and fitting accessories included
- Two-piece, plug-in wings simplify transportation and assembly
- Fiberglass cowl and glass reinforced landing gear covers/pants
- Mounts for both electric and gas power options included
Includes:
- Black Horse Spitfire 2000mm (78.7") Wingspan - ARF
- Electric retractable landing gear and shock absorbing struts
Requires (Electric):
- 7 Channel radio - select a minimum 7 channel radio from our Radio Collection
- 7 Channel receiver - select a minimum 7 channel receiver from our Receiver Collection

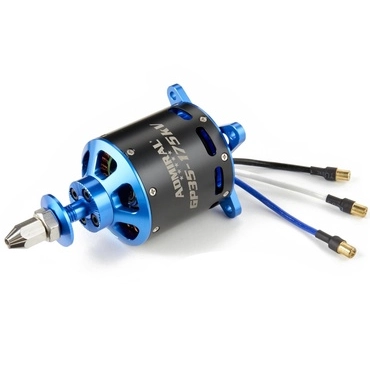

- 2500+ Watt Brushless Outrunner Motor - we recommend the Admiral GP35 C6332-175Kv Brushless Motor
- 80+ Amp Brushless ESC - we recommend Castle Creations Phoenix Edge High Voltage 80A ESC

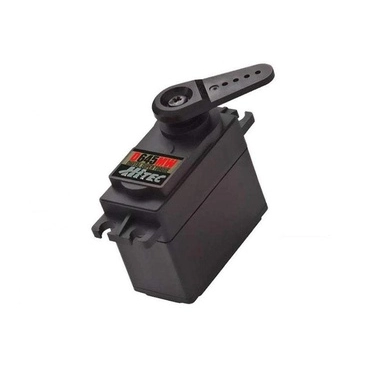

- 8x high torque servos - we recommend D-645MW (Note: these must be run at a minimum of 6V to generate enough torque. Customers will need a 9th servo for throttle if using a gas motor.)
- For 12S setup TWO 6 Cell 22.2V 3500 - 5000 mAh LiPo Batteries - we recommend Admiral 5000mAh 6S 22.2V 50C LiPo Battery with EC5 Connector Multi-Pack (2 Batteries)
- 2 to 1 EC5 series adapter - we recommend Admiral EC5 2 to 1 Series Adapter
- 20 x 8E to 21 x 10E 2 blade electric propeller - we recommend APC 20x12 Thin Electric Propeller
- 6 Cell compatible battery charger - select a minimum 6 cell (6S) charger from our Charger Collection
Requires (Gas):

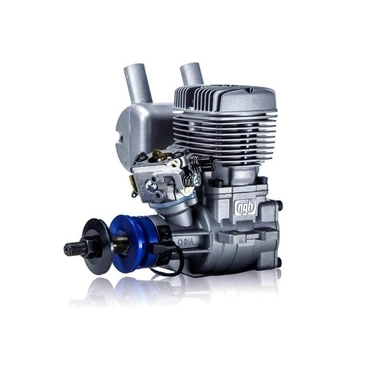

- Engine: 30-35cc 2-stroke (NGH GT35 recommended). 38-42cc 4-stroke (NGH GF38 recommended)
- Gas Propeller: (coming soon for 2 Stroke and 4 Stroke)
Black Horse ARF models are constructed out of balsa wood and plywood. These are not foam models. The assembly of balsa wood ARF aircraft requires basic model building skills including the installation of servos, ESC, and motor (or gas engine).
Product Specifications:
Model Scale |
1:5.5 Scale |
Wingspan |
2000mm / 78.7in |
Length |
1730mm /68in |
Weight |
7166g / 15.8lbs |
CG (Center of Gravity) |
118mm from the leading edge of the wing at the root |
Power System |
2500 Watt+ Brushless Outrunner Motor or 30 - 35cc 2 or 38 - 42cc 4-stroke (required) |
Electronic Speed Control |
80+A (required for electric) |
Propeller / EDF |
20 x 8E to 21 x 10E 2 blade electric propeller (required) |
Servos |
|
Landing Gear |
Electric retractable landing gear and shock absorbing struts |
Required Battery |
TWO 6 Cell 22.2V 3500 - 5000 mAh LiPo Batteries in series (required for electric) |
Required Radio |
7+ Channel (required) |
Ailerons |
Yes |
Elevator |
Yes |
Rudder |
Yes |
Flaps |
Yes |
Lights |
Optional |
Hinge Type |
Nylon Heavy Duty pin hinges |
Material |
Balsa and plywood |
Skill Level |
Intermediate |
Build Time |
6+ Hours |
Recommended Environment |
Outdoors |
Videos
Product Videos
Spare Parts
Product Spare Parts

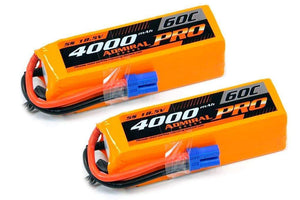

Admiral Pro 4000mAh 5S 18.5V 60C LiPo Battery with EC5 Connector Multi-Pack (2 Batteries)
SKU: ADM6024-009
$15499

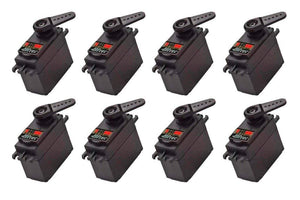

Hitec D-645MW High Voltage High Torque Digital Metal Gear Servo Airplane Multi-Pack (8 Servos)
