Black Horse Noorduyn Norseman 1840mm (72.4") Wingspan - ARF
Electric Power Bundle
Total price:
Gas Power Bundle
Total price:

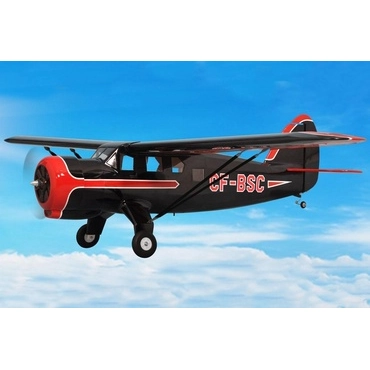

Noorduyn Norseman 1840mm (72.4") Wingspan from Black Horse - Balsa Wood ARF - BHNN000
The Noorduyn Norseman is a Canadian transport aircraft for up to 9 passengers developed by Robert Noorduyn. This prototypical replica of the original convinces with great flight characteristics and fantastic detail solutions.
The model is scaled to approximately 1:8.5 and attention was paid to a true to original appearance and best flight characteristics. The model can be operated using an electric power system or with an internal combustion engine about 10cc displacement.
Features:
- High level of prefabrication right out of the box
- Lightweight and strong laser cut balsa and plywood construction
- Covered in genuine Oracover film
- Easy access fuel tank/battery/servo access hatches
- Comprehensive control and fitting accessories included
- Two-piece, plug-in wings simplifying transportation and assembly.
- Fiberglass cowl and landing gear covers/pants
- Mounts for both electric and gas power options included
- Fully illustrated instruction manual included and available for download (see tab above)
Includes:
- Black Horse Noorduyn Norseman 1840mm (72.4") Wingspan - ARF
Requires (Electric):
- 6 Channel radio - select a minimum 6 channel radio from our Radio Collection
- 6 Channel receiver - select a minimum 6 channel receiver from our Receiver Collection
- Brushless Outrunner Motor - we recommend the Admiral GP10 5030-400Kv Brushless Motor
- 85 Amp brushless ESC - we recommend the ZTW Skyhawk 85A ESC with 8A SBEC
- 7x high torque servos - we recommend Hitec HS-485HB 45g Deluxe Ball Bearing Karbonite Gear Standard Servo Airplane Multi-Pack (6 Servos)
- 5000mAh LiPo receiver battery - we recommend Admiral 5000mAh 6S 22.2V 50C LiPo Battery with EC5 Connector
- Electric propeller - we recommend the Admiral 14x10 Electric Series Wood Propeller
- 6 Cell compatible battery charger - select a minimum 6 cell (6S) charger from our Charger Collection
Requires (Gas):
- Engine: 17cc gas - we recommend NGH GT17-Pro 17cc Two-Stroke Engine
- Servos: 7x high torque servos - we recommend Hitec HS-485HB 45g Deluxe Ball Bearing Karbonite Gear Standard Servo Airplane Multi-Pack (6 Servos)
- 1 servo (throttle) Hitec HS-485HB 45g Deluxe Ball Bearing Karbonite Gear Standard Servo
- Receiver battery: 2S 2000mAh LiFe Battery - we recommend Admiral 2100mAh 2S 6.6V LiFe Battery with XT60/JR/Futaba Connectors
- Gas Propeller: 15x8 - we recommend the Admiral 15x8 Gas Series Wood Propeller
Black Horse ARF models are constructed out of balsa wood and plywood. These are not foam models. The assembly of balsa wood ARF aircraft requires basic model building skills including the installation of servos, ESC, and motor (or gas engine).
Product Specifications:
AGE LEVEL : 14 and up
SKILL LEVEL : Intermediate
BUILD TIME : 6+ hours|
Model Scale |
1/8.5 Scale |
|
Wingspan |
1840mm / 72.44in |
|
Length |
1180mm / 46.46in |
|
Weight |
3200g / 7.04lbs |
|
CG (Center of Gravity) |
70mm from the leading edge of wing root |
|
Power System |
6S-compatible 400Kv Brushless Outrunner Motor or 9cc Gas / .60ci Nitro (required) |
|
Electronic Speed Control |
60-80A (required) |
|
Propeller / EDF |
14x8.5 Electric or 11x6-12x6 Gas (required) |
|
Servos |
|
|
Landing Gear |
Fixed |
|
Required Battery |
6S 22.2V 3000-6000mAh LiPo (required) |
|
Required Radio |
6+ Channel (required) |
|
Ailerons |
Yes |
|
Elevator |
Yes |
|
Rudder |
Yes |
|
Flaps |
Yes |
|
Lights |
Optional |
|
Hinge Type |
Fiberglass |
|
Material |
Balsa and plywood |
|
Skill Level |
Intermediate |
|
Build Time |
6+ Hours |
|
Recommended Environment |
Outdoors |
