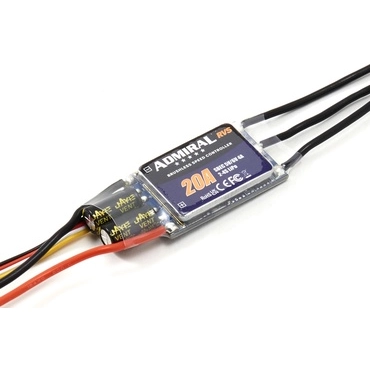

Admiral RVS 20A ESC with 4A SBEC

RVS 20A ESC with 4A SBEC from Admiral - ADM6003-052

Admiral RVS brushless speed controllers are designed for use in a wide range of fixed-wing aircraft, providing reliable performance across a variety of applications. The Admiral RVS series incorporates a high-performance 32-bit microprocessor, ensuring ultra-fast response times, smooth throttle linearity, and advanced programmable features. A standout feature of this series is the innovative RVS (Reversing) function. This allows you to reverse the direction of the motor instantaneously with the simple flip of a switch on your transmitter. It’s particularly beneficial for EDFs, providing effective braking on landing, and for seaplanes, where reversing the prop direction can improve maneuverability.

The Admiral RVS series supports high RPM motors, making them ideal for a variety of applications, including EDF setups. They also feature an adjustable (5V/6V) high amperage SBEC, offering the ability to power your servos according to your specific requirements. Designed to be compatible with a wide range of motors, these speed controllers ensure you have a dependable component for various aircraft configurations. With built-in safety features, you can fly with confidence, knowing that your ESC is both robust and reliable.

Admiral RVS speed controllers offer versatile programmability, allowing users to customize settings through stick programming or the optional Admiral Programming Card. This flexibility enables pilots to easily adjust parameters such as throttle response and motor timing directly from their transmitter, ensuring ease of adjustability without any additional accessories required. For those who prefer a more detailed approach, the Admiral Programming Card provides a user-friendly interface for accessing comprehensive settings and features. This combination makes it simple to fine-tune performance and adapt to various flying conditions, catering to the unique preferences of each pilot.

32-bit Microprocessor The Admiral RVS series incorporates a high-performance 32-bit microprocessor, ensuring ultra-fast response times, smooth throttle linearity, and advanced programmable features.

RVS Function Our advanced RVS (Reversing) function enables instantaneous motor reversal, generating reverse thrust for effective braking on EDFs and enhancing maneuverability for seaplanes. This innovative feature can be controlled via an auxiliary channel on your transmitter.

Multiple Protections Includes protection for start-up, overheating, low-voltage cut off, phase loss, signal loss, etc., to ensure your components stay in working order.

Fully Programmable Fully programmable, with parameters easily adjustable via stick inputs or the optional Admiral Programming Card for greater convenience.

Features:

• High-performance 32-bit microprocessor for ultra-fast response, smooth throttle linearity, and advanced programmability
• RVS function enables instantaneous motor reversal for reverse thrust and enhanced maneuverability
• Fully programmable via stick inputs or optional Admiral Programming Card
• Adjustable high amperage SBEC offers selectable 5V or 6V output for your servos
• Supports high RPM motors, ideal for EDF applications
• Advanced SR function improves heat dissipation and efficiency for optimal performance with high RPM motors
• Compatible with a wide range of motors for versatile aircraft setups
• Built-in safety features ensure reliable operation during flights

Optional:

• Admiral Multifunction LCD Programming Card
