Skynetic 9g Servos w/ 200mm Lead (2 pack)
€1599
(VAT inc.)9g Servos w/ 200mm Lead (2 pack) from Skynetic - SKY6005-016
These servos are used for the Skynetic Air Titan. It can be used with other aircraft with compatible specifications (see below).
Features:
- Lightweight, efficient high torque servos perfect for lightweight 3D and park flyer aircraft
Includes:
- Skynetic 9g Servo standard w/ 200mm Lead
- Skynetic 9g Servo reverse w/ 200mm Lead
- 3 mounting screws
- 4 servo horns
Product Specifications:
|
Servo Class |
9g |
|
Servo Type |
Analog |
|
Gear Material |
Plastic / Nylon |
|
Direction |
Standard / Normal |
|
Operating Voltage Range |
4.8V to 6V |
|
Speed (4.8V) |
0.11 sec @ 60 deg |
|
Speed (6V) |
0.09 sec @ 60 deg |
|
Torque (4.8V) |
1.9 kg/cm (26.41 oz/in) |
|
Torque (6V) |
2.1 kg/cm (29.19 oz/in) |
|
Current Draw at Idle |
3mA |
|
Current Draw Operating (No Load) |
200-220mA |
|

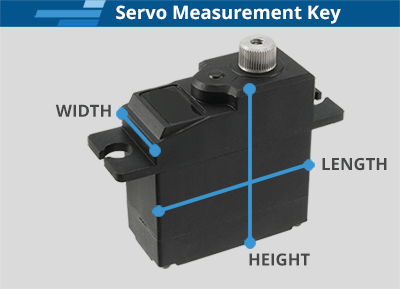

Dimensions (L x W x H) |
23.2 x 12 x 24.8mm |
|
Weight |
9.0g (.31oz) |
|
Lead Length |
200mm |
