RotorScale 2507-1280Kv Brushless Main Motor
€2929
(VAT inc.)2507-1280Kv Brushless Main Motor from RotorScale - RSH1013-111
This is used as the main motor for the RotorScale 180 size EC-135 helicopter.
Product Specifications:
Motor Type |
Outrunner |
Kv Rating (RPM/Volt) |
1280Kv |
Maximum Watts |
56W |
Continuous Current |
NA |
Maximum Burst Current |
7.6A |
Recommended Battery (Input Voltage) |
N/A |
Recommended ESC |
N/A |
Recommended Propeller / EDF |
N/A |
Slots, Poles |
14, 12 |

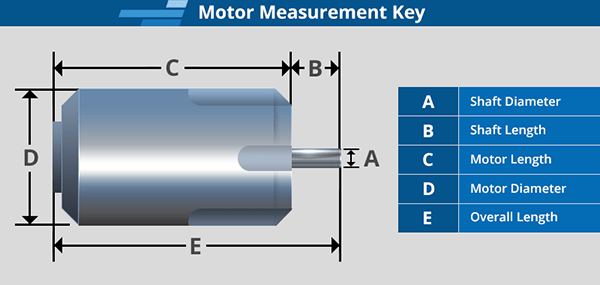

Shaft Diameter (A) |
3mm |
Shaft Length (B) |
68.1mm |
Motor Length (C) |
20.9mm |
Motor Diameter (D) |
28.2mm |
Overall Length (E) |
89mm |
Weight |
40g / 1.41oz |
Connector Type |
N/A |
