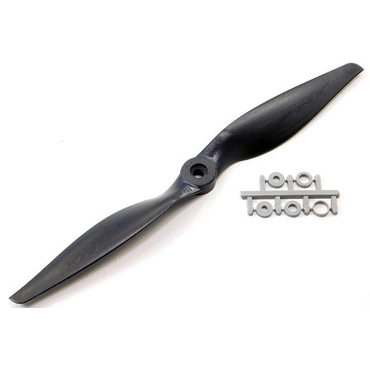

APC 10x6 Thin Electric Propeller - Black

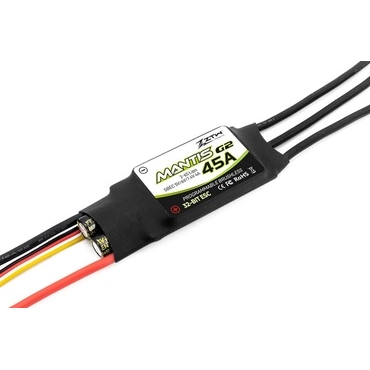

ZTW Mantis G2 45A ESC with 4A SBEC
Nexa Motorspatz Glider 2500mm (98.4") Wingspan - ARF
Total price:

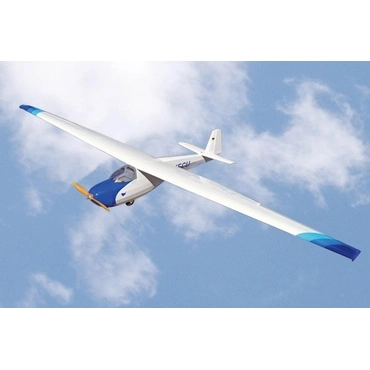

Motorspatz Glider 2500mm (98.4") Wingspan - ARF from Nexa - NXA1057-001
The SF-24 Motorspatz by German designer Egon Scheibe is a motorized, single-seat, high-wing glider derived from the non-motorized Scheibe Spatz. Described as "primitive" in 1983 by Soaring Magazine, it is a notable example of self-launching sailplanes.
The Nexa Motorspatz Glider is a electric option glider with a 2500mm wingspan, constructed primarily from balsa wood and covered with a weathered pattern. This ARF requires assembly and installation of your choice of servos and power system, and includes a large battery hatch and electric motor mount. Impress at your flying field with this unique glider!
Visit the Official Nexa 2500mm Motorspatz Glider ARF Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
|
Spacious Battery Hatch The Nexa Nexa Motorspatz Glider comes equipped with a spacious battery hatch with ample room for your battery and periphreal electronics and equipment. |
|
Easy Servo Access A convenient servo access hatch is pre-installed so you will have no problem accessing the servos at any time you require. |
|
Fully Covered Weathered Detail The Nexa Motorspatz Glider comes fully covered with a realistic weathered-detail pattern and an attractive blue and white livery. |
|
Control Surfaces Pre-Hinged and Installed All control surfaces are pre-hinged and installed for your convenience. |
Features:
- All Balsa and lite-ply construction
- Fully covered in weathered detail
- Control surfaces pre-hinged and installed
- Two piece wing with aluminium wing joiner
- Big battery hatch for Electric version
- Electric Motor mount
Includes:
- Nexa Motorspatz Glider 2500mm (98.4") Wingspan - ARF
- Assembly instructions with stage photos
- Electric motor mount
- Aluminium wing joiner
- Decals and all hardware
Requires:
- 4 Channel radio - select a minimum 4 channel radio from our Radio Collection
- 4 Channel receiver - select a minimum 4 channel receiver from our Receiver Collection
- 950Kv or equivalent brushless outrunner motor - we recommend the Admiral GP2 3520-950Kv Brushless Motor
- 45 Amp brushless ESC - we recommend the ZTW Mantis G2 45A ESC with 4A SBEC
- 4x 17g metal gear servos for ailerons, elevator and rudder - we recommend TWO Hitec HS-82MG Metal Gear Micro Servo Airplane Multi-Pack (2 Servos)
- 4 Cell 14.8V 2500 - 3700mAh LiPo battery - we recommend the Admiral 3600mAh 4S 14.8V 40C LiPo Battery with XT60 Connector
- Standard 18x8 2-blade electric propeller - we recommend an APC 10x6 Thin Electric Propeller - Black
- 3 Cell compatible battery charger - select a minimum 3 cell (3S) charger from our Charger Collection
Customer Note
Nexa ARF models are constructed out of balsa wood and plywood. These are not foam models. The assembly of balsa wood ARF aircraft requires basic model building skills including the installation of servos, ESC, and motor (or gas engine).
Product Specifications:
|
Model Scale |
1/5.5 |
|
Wingspan |
2500mm / 98.4in |
|
Length |
1120mm / 44.9in |
|
Empty Weight |
1350g / 47.6oz |
|
CG (Center of Gravity) |
70mm from the leading edge of the wing's root |
|
Power System |
950Kv or equivalent brushless outrunner motor (required) |
|
Electronic Speed Control |
45A (required) |
|
Propeller / EDF |
10x6 2-blade (required) |
|
Servos |
|
|
Landing Gear |
Single wheel (included) |
|
Required Battery |
4 Cell 14.8V 2500 - 3700mAh LiPo battery (required) |
|
Required Radio |
4+ Channel (required) |
|
Ailerons |
Yes |
|
Elevator |
Yes |
|
Rudder |
Yes |
|
Flaps |
No |
|
Lights |
No |
|
Hinge Type |
Nylon Heavy Duty |
|
Material |
Balsa and light plywood |
|
Skill Level |
Intermediate |
|
Build Time |
6+ Hours |
|
Recommended Environment |
Outdoors |
