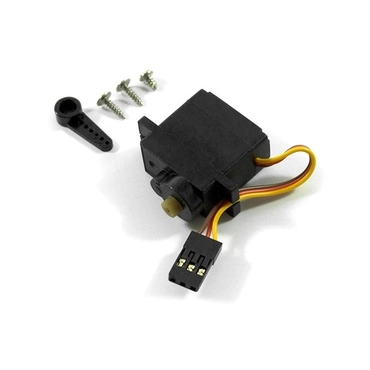

Hobby Plus 9g Digital Servo

Servo Class

9g

Servo Type

Digital

Gear Material

Plastic

Direction

Standard

Operating Voltage Range

5V to 6V

Speed (5V)

0.14 sec @ 60 deg

Speed (6V)

0.12 sec @ 60 deg

Torque (5V)

1.2 kg/cm (16.7 oz/in)

Torque (6V)

1.4 kg/cm (19.4 oz/in)

Current Draw at Idle

4mA

Current Draw Operating (No Load)

60mA

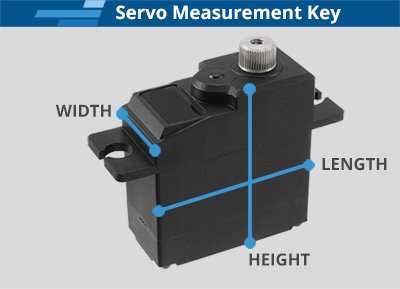

Dimensions (L x W x H)

23 x 12.2 x 27.3mm

Weight

12g (.42oz)

Lead Length

55mm
