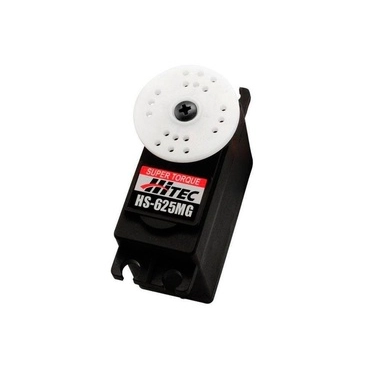

(VAT inc.)HS-625MG 55g Ball Bearing Metal Gear Standard Servo from Hitec - HRC32625S
The powerful high speed and super torque HS-625MG is a perfect choice for those applications requiring a fast and strong standard size servo. Utilizing M/P and metal gear train technology, the HS-625MG is a fantastic sport servo for larger planes.
Features:
- High speed, and high torque standard-sized servo
- M/P and metal gear train technology
- Three metal gears
- Dual ball bearing
Includes:
- 1x HS-625MG ball bearing metal gear standard servo
- 4x grommets
- 4x brass eyelets
- 4x round, flanged, phillips head screws (1.5 x 14mm)
- 1x adjustable servo horn
- 1x large X servo horn (43mm end to end)
- 1x small X servo horn (30mm end to end)
- 1x straight servo horn (33mm end to end)
Product Specifications:
|
Servo Class |
Standard |
|
Servo Type |
Analog |
|
Gear Material |
Metal |
|
Direction |
Standard / Normal |
|
Operating Voltage Range |
4.8V - 6V |
|
Speed (4.8V) |
0.18 sec @ 60 deg |
|
Speed (6V) |
0.15 sec @ 60 deg |
|
Torque (4.8V) |
5.5 kg/cm (76.37 oz/in) |
|
Torque (6V) |
6.8 kg/cm (94.43 oz/in) |
|
Current Draw at Idle |
9.1mA |
|
Current Draw Operating (No Load) |
500 mA |
|
Dimensions (L x W x H) |
40.6 x 19.8 x 37.8mm |
|
Weight |
55.2g (1.94oz) |
|
Lead Length |
330mm |
