Freewing Electronic Retract for 4.1mm Shaft - Type C

Name: Freewing Electronic Retract for 4.1mm Shaft - Type C
SKU: E811
Price: 12.39 EUR
Availability: InStock
Rating: 4.31 (49 reviews)

^€14⁹⁹

(VAT inc.)

Electronic Retract for 4.1mm Shaft Type C

Specifications:

Body material: plastic
Trunion material: black anodized metal
Strut diameter: accepts shafts of 4.1mm in diameter

This retract is used on the main landing gear of the following Freewing aircraft:

80mm Freewing F-86 Sabre
80mm Freewing F-5 Tiger II

Product Specifications:

Gear Material	Nylon/ABS
Operating Voltage Range	4.8V - 6V
Speed (4.8V)	1.8 sec @ 90 deg
Speed (6V)	1.6 sec @ 90 deg
Torque (4.8V)	5.0 kg/cm (70 oz/in)
Torque (6V)	5.5 kg/cm (76 oz/in)
Current Draw at Idle (4.8V)	100mA
Current Draw at Idle (6.0V)	130mA
Maximum Load Current (4.8V)	900mA
Maximum Load Current (6.0V)	1100mA
Current Draw Operating (No Load)	10mA

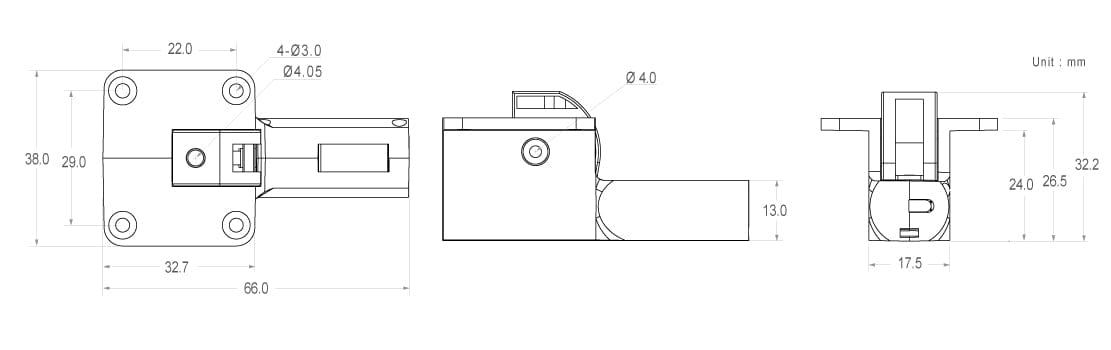

Dimensions (L x W x H)	66 x 38 x 32.2mm
Weight	43g (1.51oz)
Lead Length	360mm
