Freewing Electronic Nose Gear Retract with 4.1mm Shaft Type B2
€1999
(VAT inc.)Electronic Nose Gear Retract with 4.1mm Shaft Type B2
Click here to view special instructions to prevent jammed retract pins.
Specifications:
- Body material: plastic
- Trunion material: metal
- Strut diameter: rotating shaft pin is 4.1mm in diameter
This retract is used on the nose gear of the following Freewing aircraft:
- Me262
Product Specifications:
Gear Material |
Nylon/ABS |
Operating Voltage Range |
4.8V - 6V |
Speed (4.8V) |
1.8 sec @ 90 deg |
Speed (6V) |
1.6 sec @ 90 deg |
Torque (4.8V) |
5.0 kg/cm (70 oz/in) |
Torque (6V) |
5.5 kg/cm (76 oz/in) |
Current Draw at Idle (4.8V) |
100mA |
Current Draw at Idle (6.0V) |
130mA |
Maximum Load Current (4.8V) |
900mA |
Maximum Load Current (6.0V) |
1100mA |
Current Draw Operating (No Load) |
10mA |

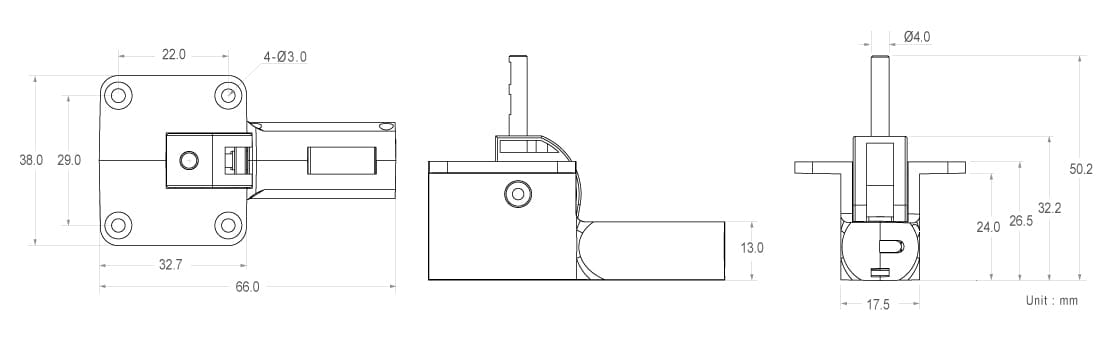

Dimensions (L x W x H) |
66 x 38 x 50.2mm |
Weight |
48g (1.69oz) |
Lead Length |
360mm |
