Freewing Electronic Main Retract for 5.1mm Diameter Shafts - Type C

Name: Freewing Electronic Main Retract for 5.1mm Diameter Shafts - Type C
SKU: E841
Price: 18.34 EUR
Availability: InStock
Rating: 4.3 (54 reviews)

^€22¹⁹

(VAT inc.)

Electronic Retract for 5.1mm Diameter Shafts - Type C from Freewing - E841

For the main gear of the following FlightLine RC and Freewing aircraft:

Freewing 70mm AL37 Airliner
1600mm F7F
1600mm Spitfire
Freewing 90mm F-4D Phantom II
Freewing 90mm F/A-18C Hornet
Freewing 80mm T-33

Product Specifications:

Gear Material	Nylon/ABS
Operating Voltage Range	4.8V - 6V
Speed (4.8V)	3.5 sec @ 90 deg
Speed (6V)	3.2 sec @ 90 deg
Torque (4.8V)	13 kg/cm (459 oz/in)
Torque (6V)	15.5 kg/cm (547 oz/in)
Current Draw at Idle (4.8V)	130mA
Current Draw at Idle (6.0V)	150mA
Maximum Load Current (4.8V)	1900mA
Maximum Load Current (6.0V)	2300mA
Current Draw Operating (No Load)	10mA

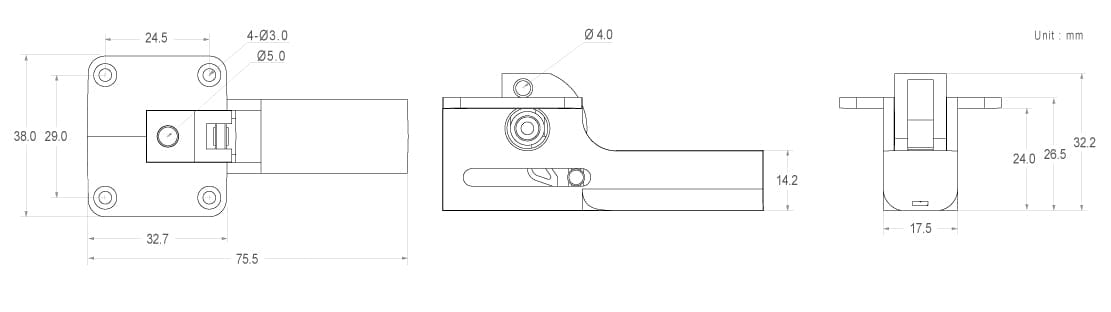

Dimensions (L x W x H)	75.5 x 38 x 32.3mm
Weight	54g (2.08oz)
Lead Length	360mm
