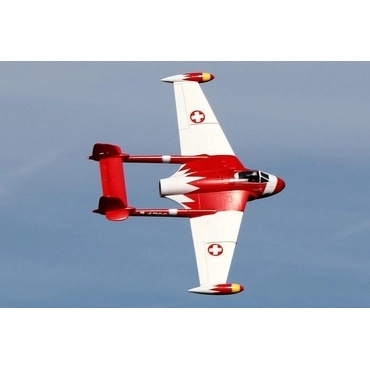

Freewing de Havilland DH-112 Venom V2 Swiss Red High Performance 90mm EDF Jet - PNP
Popular Bundle
Futaba 6K-V3S 8-Channel Transmitter with R3008SB Receiver
SkyRC B6AC V2 50W 6 Cell (6S) AC/DC LiPo Battery Charger
Total price:
Freewing 90mm EDF de Havilland DH 112 Venom Jet Version 2 Swiss High Performance Red Scheme - Receiver Ready (PNP) - RJ30233P
Discontinued Product
This product is being discontinued. Product and replacement parts will be available only while remaining inventory lasts.
Version Info: This is the High Performance which includes a powerful 3672-1900Kv inrunner motor with new 9-blade fan.
This is the new version 2 (V2) of Freewing's Venom EDF Jet with Swiss red livery. This upgraded version has significant upgrades to both the power system and the airframe. This High Performance Venom V2 now includes a new 9-blade fan, 130A Hobbywing ESC, and powerful 3672-1900Kv brushless inrunner motor. Structural upgrades include an increased number of carbon wing spars for rigidity, strengthening of the overall tail section, and a complete redesign of the horizontal and vertical stabilizer sections for improve performance and scale appearance.
This model does not include the optional bomb/mount set.
Features:
- New! 90mm 9-blade ducted fan and powerful 3672-1900Kv brushless inrunner motor provides awesome power and incredible real life jet turbine sound
- Premium quality 130 Amp Hobbywing ESC with 8A UBEC
- Stronger tail section, with revised rudder and elevator
- Increased carbon spar count and EPO foam construction provide the perfect balance between strength and flexibility
- Incredible scale details including hand painted pilots, scale canopy, shock absorbing landing gear, sequenced landing doors, and stunning Swiss Air Force graphics package
- Large, nearly 5 foot, wingspan provides incredible scale detail and easy to see even at high speeds
- Bright LED navigation lights for enhanced realism and dawn/dusk maneuvers.
- Electronic retractable landing gear with aluminum shock absorbing struts and sequenced gear doors
- Full function flaps allow shorter take-off distances and slow, scale landings.
- Nylon hinges on all control surfaces (superior to foam hinges)
- Motor, servos, ESC and EDF come pre-installed for your convenience
Includes:
- Freewing de Havilland DH-112 Venom V2 Swiss Red High Performance 90mm EDF Jet - PNP
Requires:
- 6 Channel Radio - Select a minimum 6 channel radio from our Radio Collection
- 6 Channel Receiver - Select a minimum 6 channel receiver from our Receiver Collection
- 6 Cell 22.2V 4000mAh LiPo Battery with EC5 connector - EPR40006PRO
- 6 Cell Compatible Battery Charger - Select a minimum 6 cell (6S) charger from our Charger Collection
Power System and Electronics Compatibility:
This model is designed to operate using the included ESC and its integrated BEC, which is specifically matched to the onboard electronics. To ensure reliable performance and prevent damage, always power the aircraft's receiver and electronics through the installed ESC using the main flight battery. Do not use any power source other than the main flight battery to power the model, otherwise damage will occur to the electronics.
The receiver, servos, and other onboard electronics included with this model are rated for a maximum input voltage of 5.5V. When selecting your ESC and power system, verify that the BEC output supplied to the receiver and onboard electronics does not exceed 5.5V. Using a higher voltage will damage the aircraft's electronics.
Product Specifications:
AGE LEVEL : 18 and up
SKILL LEVEL : Intermediate
BUILD TIME : 2+ Hours
|
Wingspan |
1500mm / 59in |
|
Length |
1100mm / 43.3in |
|
Flying Weight |
2500g / 88.2oz |
|
CG (Center of Gravity) |
See Manual |
|
Power System |
3672-1900Kv Brushless Inrunner Motor |
|
Electronic Speed Control |
130A, 8A UBEC with EC5 connector |
|
Propeller / EDF |
90mm 9-Blade EDF |
|
Servos |
|
|
Landing Gear |
Nose and main gear have electronic retracts with shock-absorbing aluminum struts |
|
Required Battery |
6S 22.2V 3600-4000mAh 40C LiPo with EC5 connector |
|
Required Radio |
6 Channel |
|
Ailerons |
Yes |
|
Elevator |
Yes |
| Rudder |
Yes |
|
Flaps |
Yes |
|
Lights |
Yes |
|
Hinge Type |
Nylon hinges |
|
Material |
EPO Foam |
|
Skill Level |
Intermediate |
|
Build Time |
2 Hours |
|
Recommended Environment |
Outdoor |
