Freewing 80mm EDF Avanti S Ultimate Sport Jet - ARF PLUS - FJ21211AP
Discontinued Product
This product is being discontinued. Product and replacement parts will be available only while remaining inventory lasts.
Version Info: This is the ARF+ version for pilots who wish to install their own power system. All primary electronics including servos and landing gear come pre-installed, just add your own power system (EDF, motor, and ESC) to begin flying.
Renowned worldwide as the ultimate EDF sport jet blending precision performance in a sleek and affordable package, the Freewing 80mm Avanti S is a fan-favorite powerhouse!
The Avanti S has won awards in freestyle, aerobatic, sport, and other classes in competitions worldwide in a variety of sizes and powerplants including electric and turbine. Its remarkable performance and crisp handling at all speeds sets it apart as one of the most sought-after sport jets in the hobby.
Visit the Official Freewing Avanti S Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
|

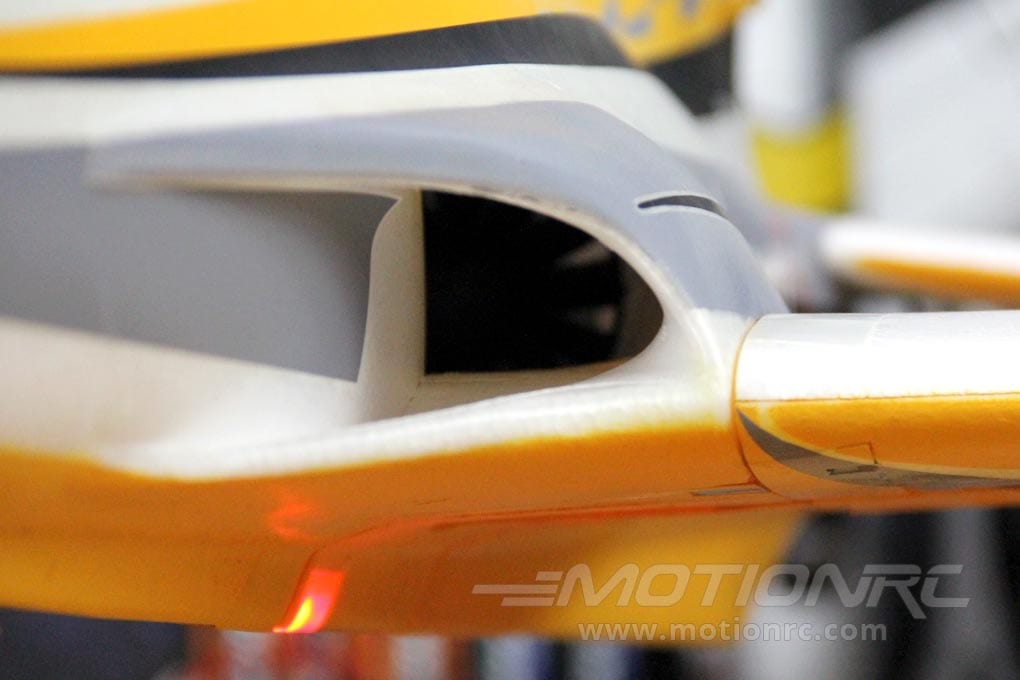

Fast Optimized ducting eliminates the need for a cheater hole and enhances efficiency, delivering speeds exceeding 115mph! |
|

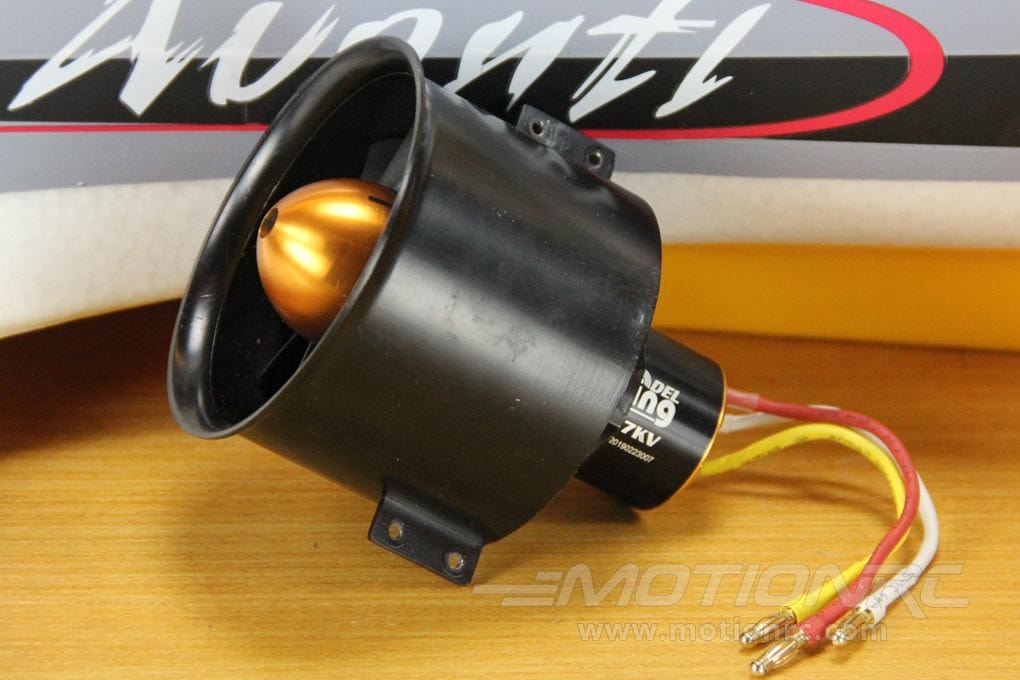

Powerful For your ARF PLUS we recommend the powerful 9-blade EDF with powerful 3658-1857KV inrunner motor and 100A ESC. |
|

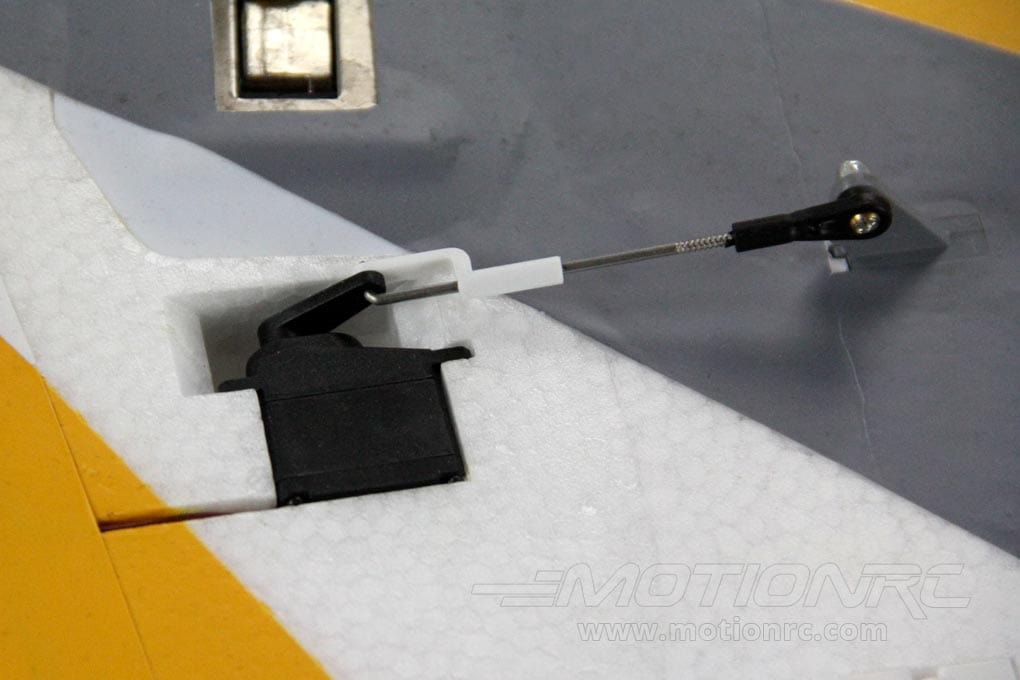

Precise Digital Metal Gear servos on all flying surfaces and brass ball link control hardware deliver precise responses to your control inputs. |
|

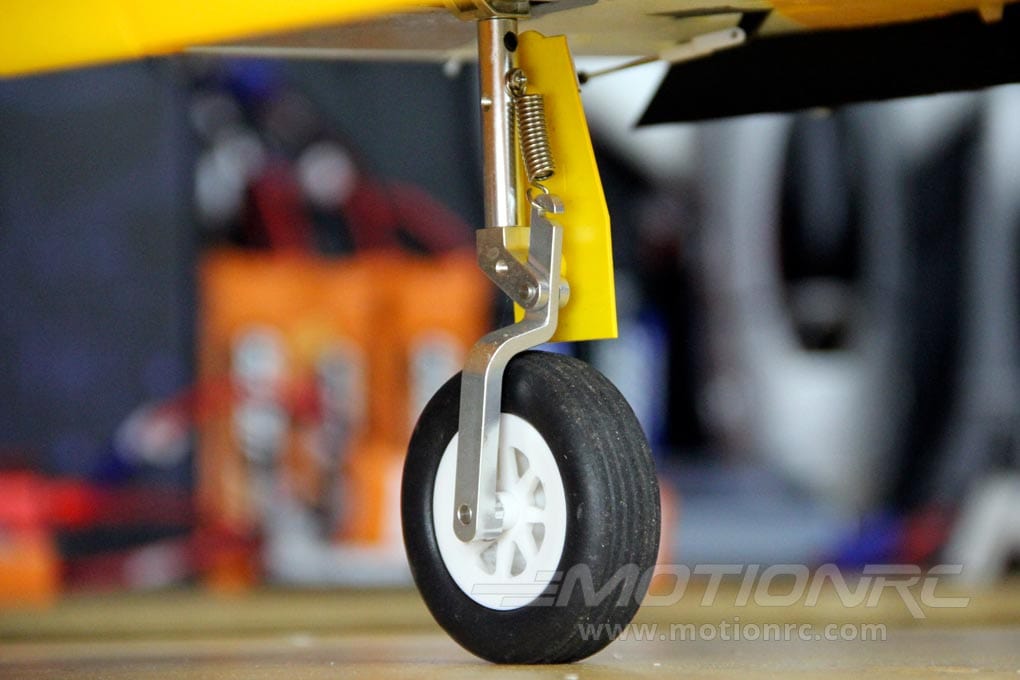

Grass-Friendly Electric retracts and trailing link suspension struts for easy and effective grass operation. |
|

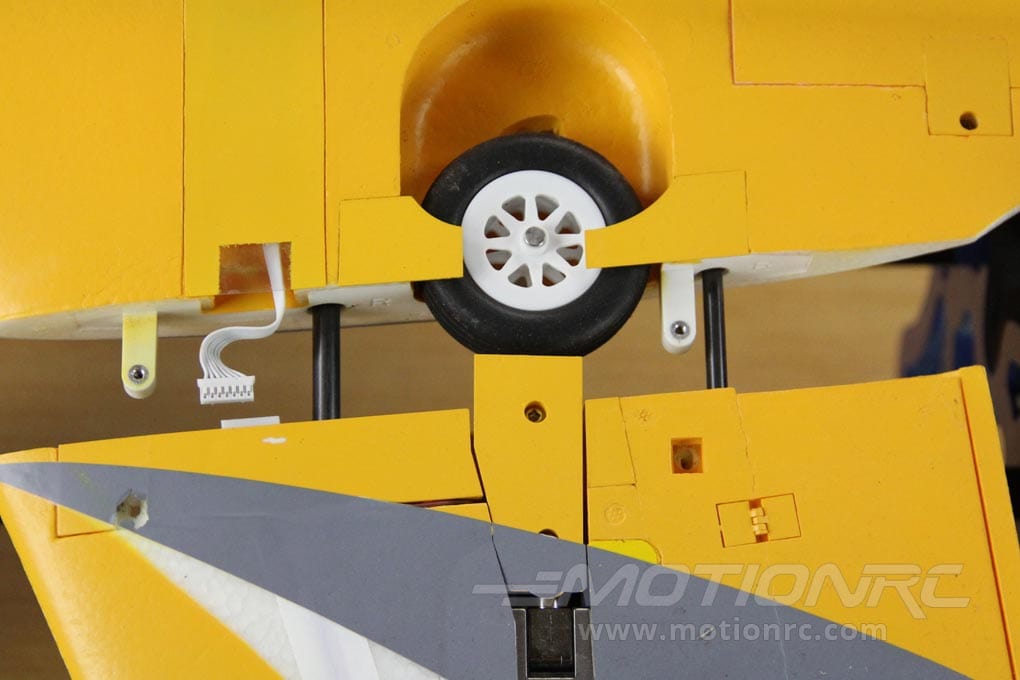

Easily Transported Removable wings with quick disconnect plug. |
|

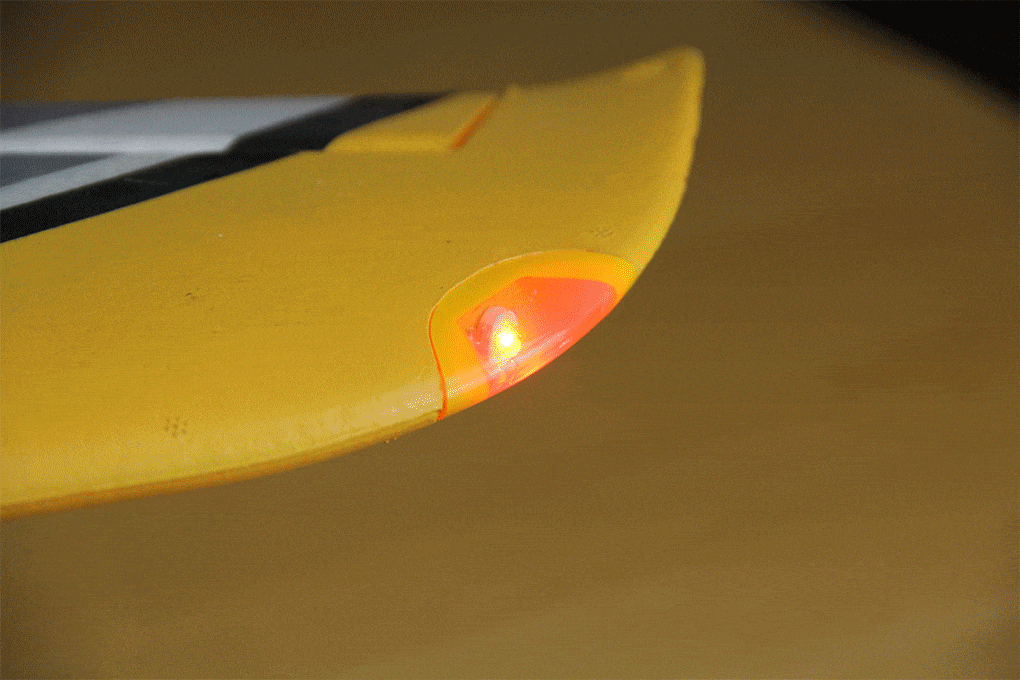

DayBright LEDs LED position lights on the wingtips, dorsal spine, and ventral keel. |
Features:
- Officially licensed by SebArt International, the Avanti's original designer
- 115mph airspeed on recommended stock outrunner and 6s 4000mAh battery
- Optimized ducting that eliminates the need for a cheater hole
- Electric retracts and trailing link suspension struts for grass operation
- Removable wings with quick disconnect plug
- LED position lights on the wingtips, dorsal spine, and ventral keel
- 1236mm wingspan and 1300mm length
- Magnetic removable nose cone with plastic cap for durability
- Split flaps
- Two seat foam cockpit and light tinted plastic canopy for customization
- Spring-hinged double nose door
Includes:
- Freewing Avanti S 80mm EDF Ultimate Sport Jet - ARF PLUS
Requires:
- Brushless motor, EDF unit and ESC (see specifications for details)
- 6 Channel Radio - Select a minimum 6 channel radio from our Radio Collection
- 6 Channel Receiver - Select a minimum 6 channel receiver from our Receiver Collection
- 6 Cell 22.2V 4000 - 6000 mAh LiPo Battery with EC5 connector - we recommend Admiral 6 Cell 6000 mAh LiPo battery
- 6 Cell Compatible Battery Charger - Select a minimum 6 cell (6S) charger from our Charger Collection
Product Specifications:
|
Wingspan |
1236mm / 48.6in |
|
Length |
1300mm / 51.2in |
|
Flying Weight |
~2600g / 91.7oz |
|
CG (Center of Gravity) |
105-110mm where wing's LE meets fuselage (see manual diagram) |
|
Power System |
3658-1857Kv Brushless Inrunner Motor (recommended) |
|
Electronic Speed Control |
100A ESC with EC5 Connector (recommended) |
|
Propeller / EDF |
80mm EDF with 9 Blade Fan (recommended) |
|
Servos |
|
|
Landing Gear |
Electric retracts and trailing link suspension struts for grass operation |
|
Required Battery |
6S 22.2V 4000-6000mAh LiPo with EC5 Connector |
|
Required Radio |
6+ Channel |
|
Ailerons |
Yes |
|
Elevator |
Yes |
|
Rudder |
Yes |
|
Flaps |
Split |
|
Lights |
Yes |
|
Hinge Type |
Nylon reinforced hinges |
|
Material |
EPO Foam |
|
Skill Level |
Advanced |
|
Build Time |
1 Hour |
|
Recommended Environment |
Outdoor |
