Freewing 9g Digital Servo with 100mm (4") Lead
€459
(VAT inc.)€859
SAVE
€4.00
CLEARANCE MERCHANDISE
- Clearance items are NEW merchandise in factory sealed boxes.
- Because of their deeply discounted prices, all Motion RC clearance items are sold “AS IS” and cannot be returned or exchanged under any circumstance.
- Clearance merchandise DOES NOT have a warranty. The buyer is responsible for any problems or repairs after purchase.
Freewing 9g Digital Servo with 100mm (4") Lead - MD31091-100
This servo is used on various Freewing jets. It can be used with other aircraft with compatible specifications (see below).
Features:
- Lightweight, efficient high torque servo perfect for mid-sized to large EDF jets
Includes:
- Freewing 9g Digital Servo with 100mm (4") Lead
- 4 mounting screws
- 3 servo horns
Product Specifications:
|
Servo Class |
9g |
|
Servo Type |
Digital |
|
Gear Material |
Plastic / Nylon |
|
Direction |
Standard / Normal |
|
Operating Voltage Range |
4.8V to 6V |
|
Speed (4.8V) |
0.12 sec @ 60 deg |
|
Speed (6V) |
0.10 sec @ 60 deg |
|
Torque (4.8V) |
1.2 kg/cm (16.66 oz/in) |
|
Torque (6V) |
1.5 kg/cm (20.83 oz/in) |
|
Current Draw at Idle |
10mA |
|
Current Draw Operating (No Load) |
80mA |
|

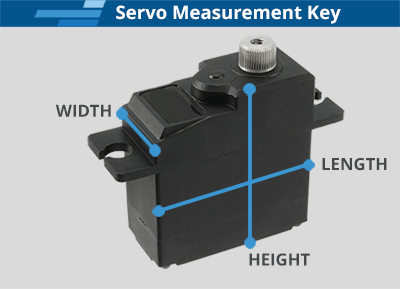

Dimensions (L x W x H) |
23.5 x 12.2 x 26.4mm |
|
Weight |
9g (.31oz) |
|
Lead Length |
100mm |
