Freewing 9g Digital Reverse Servo with 300mm (12") Lead
€859
(VAT inc.)Freewing 9g Digital Reverse Servo with 300mm (12") Lead - MD31091R-300
This servo is used on various Freewing jets. It can be used with other aircraft with compatible specifications (see below).
Features:
- Lightweight, efficient high torque servo perfect for mid-sized to large EDF jets
Includes:
- Freewing 9g Digital Reverse Servo with 300mm (12") Lead
- 4 mounting screws
- 3 servo horns
Product Specifications:
|
Servo Class |
9g |
|
Servo Type |
Digital |
|
Gear Material |
Plastic / Nylon |
|
Direction |
Reverse |
|
Operating Voltage Range |
4.8V to 6V |
|
Speed (4.8V) |
0.12 sec @ 60 deg |
|
Speed (6V) |
0.10 sec @ 60 deg |
|
Torque (4.8V) |
1.2 kg/cm (16.66 oz/in) |
|
Torque (6V) |
1.5 kg/cm (20.83 oz/in) |
|
Current Draw at Idle |
10mA |
|
Current Draw Operating (No Load) |
80mA |
|

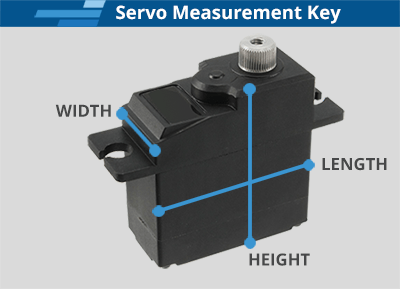

Dimensions (L x W x H) |
23.5 x 12.2 x 26.4mm |
|
Weight |
9g (.31oz) |
|
Lead Length |
300mm |
