Freewing 9g Digital Hybrid Metal Gear Servo with 750mm (30") Lead
€1269
(VAT inc.)9g Digital Hybrid Metal Gear Servo with 750mm (30") Lead from Freewing - MD31093-750
This servo utilizes both metal and plastic gears and is for Freewing 70mm - 80mm EDF jets and smaller-sized warbirds. It can be used with other aircraft with compatible specifications (see below).
Features:
- Lightweight, efficient high torque metal / plastic (hybrid) gear servo perfect for 70-80mm EDF jets or smaller-sized warbirds
Includes:
- Freewing 9g Digital Hybrid Metal Gear Servo with 750mm (30") Lead
- 4 mounting screws
- 3 servo horns
Product Specifications:
|
Servo Class |
9g |
|
Servo Type |
Digital |
|
Gear Material |
Hybrid |
|
Direction |
Standard / Normal |
|
Operating Voltage Range |
4.8V to 6V |
|
Speed (4.8V) |
0.12 sec @ 60 deg |
|
Speed (6V) |
0.10 sec @ 60 deg |
|
Torque (4.8V) |
1.5 kg/cm (20.83 oz/in) |
|
Torque (6V) |
1.8 kg/cm (24.99 oz/in) |
|
Current Draw at Idle |
10mA |
|
Current Draw Operating (No Load) |
80mA |
|

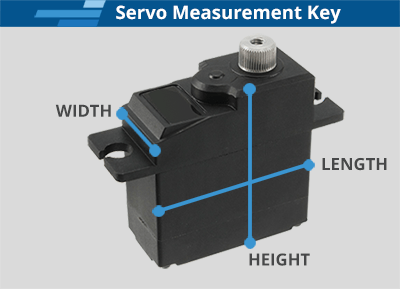

Dimensions (L x W x H) |
23.5 x 12.2 x 26.4mm |
|
Weight |
13g (.45oz) |
|
Lead Length |
750mm |
