Freewing 4P 4075-1170KV Brushless Inrunner Motor
€14699
(VAT inc.)Freewing 4P 4075-1170KV Brushless Inrunner Motor - MI040751
This brushless inrunner motor is used primarily with various Freewing 90mm EDF 12-Blade jets that require 8S power (6S LiPo battery with a 2S LiPo battery in series). It can be used with other aircraft with compatible specifications (see below).
Features:
- Precision machined parts and high-quality long-life bearings for trouble-free operation
Includes:
- Freewing 4P 4075-1170KV Brushless Inrunner Motor
- Female bullet connectors
- four mounting screws
Product Specifications:
|
Motor Type |
Inrunner |
|
Kv Rating (RPM/Volt) |
1170Kv |
|
Maximum Watts |
2430W |
|
Continuous Current |
80A |
|
Maximum Burst Current |
85A, 10 seconds |
|
Recommended Battery (Input Voltage) |
8S (29.6V) |
|
Recommended ESC |
150A |
|
Recommended Propeller / EDF |
90mm 12B metal fan |
|
Slots, Poles |
12, 4 |
|

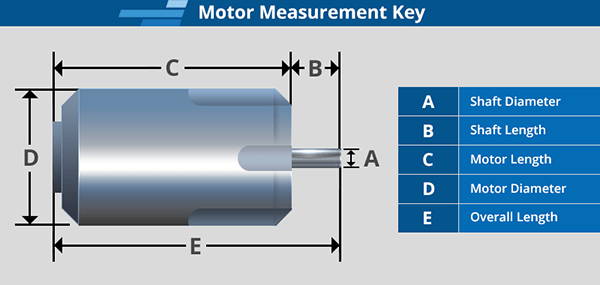

Shaft Diameter (A) |
5mm |
|
Shaft Length (B) |
21mm |
|
Motor Length (C) |
75mm |
|
Motor Diameter (D) |
39mm |
|
Overall Length (E) |
96mm |
|
Weight |
418g / 14.74oz |
|
Connector Type |
4mm Bullet |
