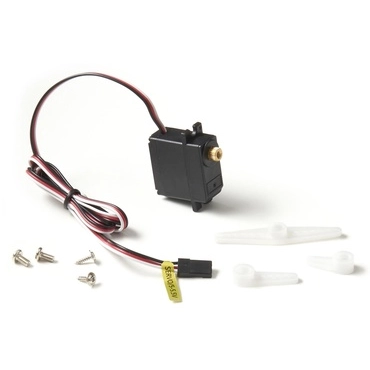

(VAT inc.)Freewing 23g Metal Gear Reverse Servo with 700mm (27") Lead - MD31231R-700
This servo is used on various Freewing jets. It can be used with other aircraft with compatible specifications (see below).
Features:
- Lightweight, efficient high torque metal gear servo perfect for mid-sized to large EDF jets
Includes:
- Freewing 23g Metal Gear Reverse Servo with 700mm (27") Lead
- 4 mounting screws
- 2 servo horns
Product Specifications:
|
Servo Class |
23g |
|
Servo Type |
Digital |
|
Gear Material |
Metal |
|
Direction |
Reverse |
|
Operating Voltage Range |
4.8V to 6V |
|
Speed (4.8V) |
0.16 sec @ 60 deg |
|
Speed (6V) |
0.12 sec @ 60 deg |
|
Torque (4.8V) |
5.0 kg/cm (177 oz/in) |
|
Torque (6V) |
6.5 kg/cm (229 oz/in) |
|
Current Draw at Idle |
55mA |
|
Current Draw Operating (No Load) |
142mA |
|
Dimensions (L x W x H) |
28.3 x 13.0 x 29.5mm |
|
Weight |
23g (.81oz) |
|
Lead Length |
700mm |
