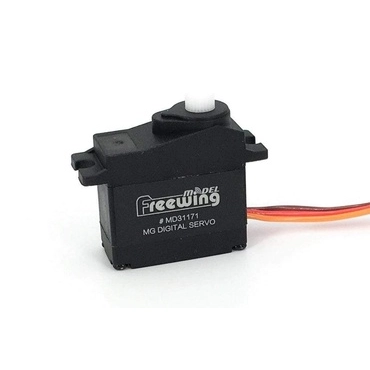

(VAT inc.)17g Digital Servo with 600mm (23.6") Lead from Freewing - MD31171-600
This servo is used on various Freewing jets. It can be used with other aircraft with compatible specifications (see below).
Features:
- Lightweight, efficient high torque servo perfect for mid-sized to large EDF jets
Includes:
- Freewing 17g Digital Servo with 600mm (23.6") Lead
- 4 mounting screws
- 3 servo horns
Product Specifications:
| Servo Class | 17g |
| Servo Type | Digital |
| Gear Material | Plastic / Nylon |
| Direction | Standard / Normal |
| Operating Voltage Range | 4.8V to 6V |
| Speed (4.8V) | 0.13 sec @ 60 deg |
| Speed (6V) | 0.12 sec @ 60 deg |
| Torque (4.8V) | 2.1 kg/cm (29.16 oz/in) |
| Torque (6V) | 2.5 kg/cm (34.71 oz/in) |
| Current Draw at Idle | 20mA |
| Current Draw Operating (No Load) | 120mA |
| Dimensions (L x W x H) | 28.5 x 13.5 x 30mm |
| Weight | 17g (.59oz) |
| Lead Length | 600mm |
